PA-1QB (Bass)

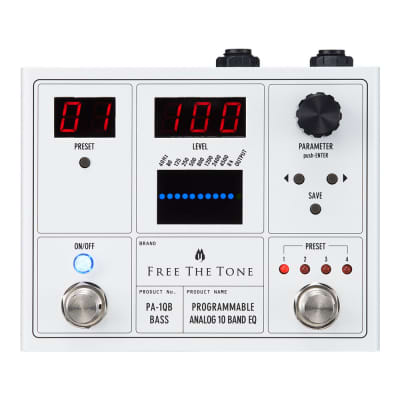

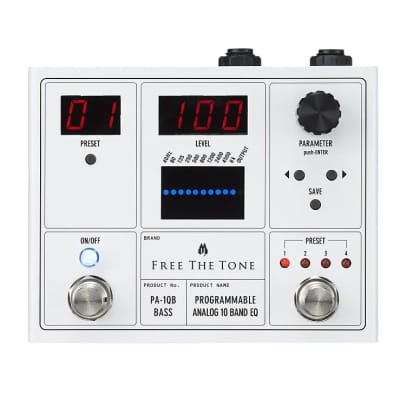

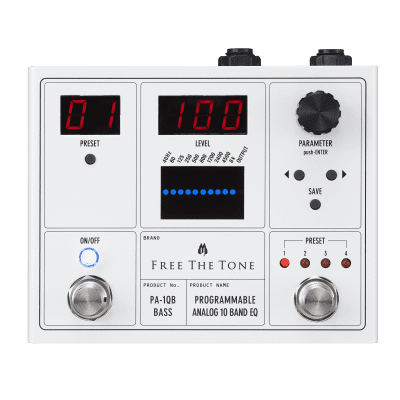

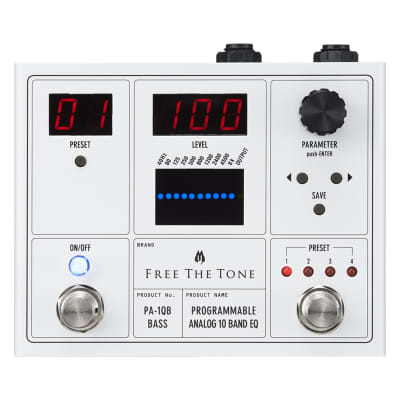

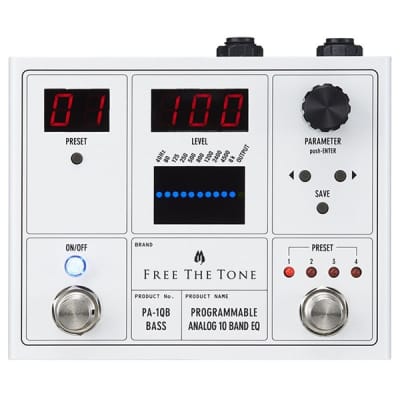

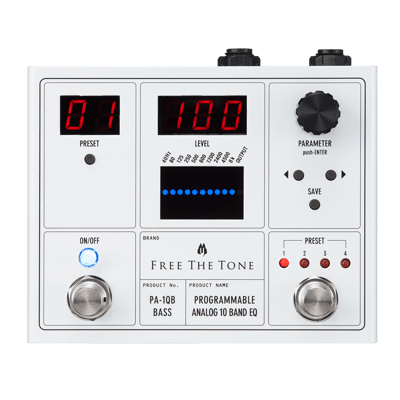

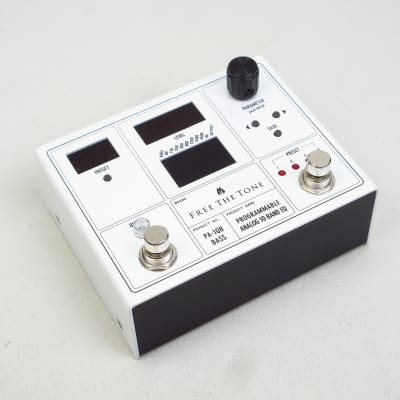

The Free The Tone PA-1QB (Bass) is a programmable analog 10-band EQ pedal designed to integrate digital and analog technologies. Its features and specifications include:

Features:
- All equalizer circuits passing instrument signals are fully analog, while the parameter control section is digital, allowing real-time control via preset recalling and MIDI.
- Renewed HTS (Holistic Tonal Solution) circuit holistically manages high- quality bass signals from input to output, maintaining consistent sound texture whether the effect is on or off.
- Specially selected frequencies and equalizer curves optimized for bass, allowing for useful and minute adjustments.
- 99 presets that can be recalled instantly via MIDI signals.
- Can function as an equalizer effects unit and a preset volume controller, suitable for applications such as increasing solo playing volume or leveling out individual differences in output levels when switching between multiple guitars/basses.

Specifications:
- Number of presets: 99
- Input impedance: INST min. 1M ohm / LINE min. 300 k ohm
- Output load impedance: min. 10k ohm
- Max. input level: INST +4 dBm / LINE +14 dBm (EQ setting = flat)
- Controls: cursor keys, PARAMETER encoder, INST(-10dB)/LINE(+4dB) level selector switch
- Frequencies: 40 Hz, 80 Hz, 125 Hz, 250 Hz, 500 Hz, 800 Hz, 1200 Hz, 2400 Hz, 4500 Hz, 8 kHz (±12 dB)
- Terminals: 1/4" standard phone jack x 2 (input and output), DC9V input jack (for AC adapter), DIN 5-pin connector x 2 (MIDI IN and OUT/THRU)
- Power supply: Dedicated DC9V AC adapter
- Current consumption: max. 200 mA
- Dimensions (W x D x H): 120 x 102.3 x 58.5 mm or 4.7 x 4.0 x 2.3 inches (incl. protuberances such as footswitch, jacks, etc. )
- Weight (excl. accessories): approx. 350 g or 0.77 lbs
