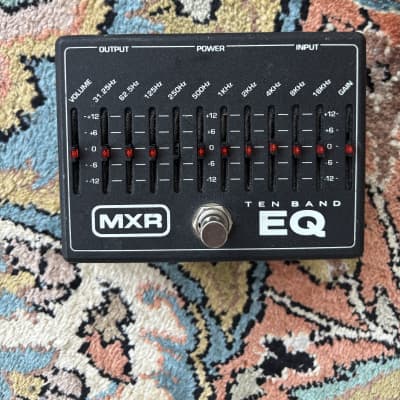

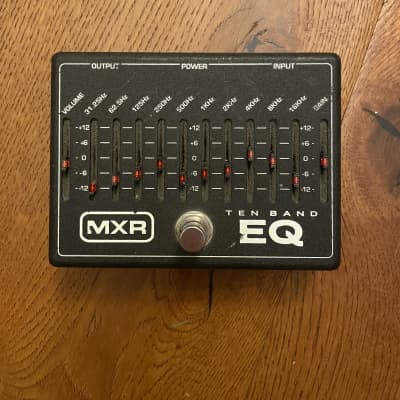

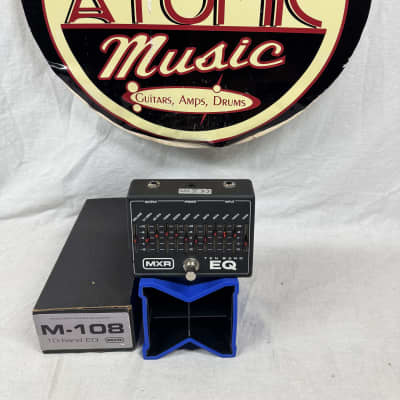

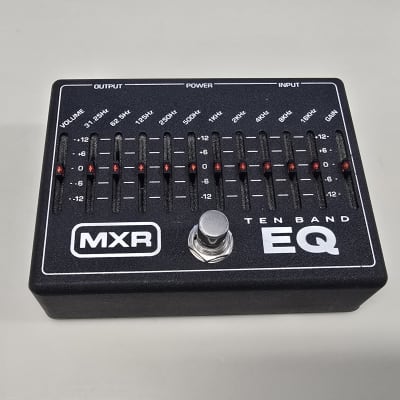

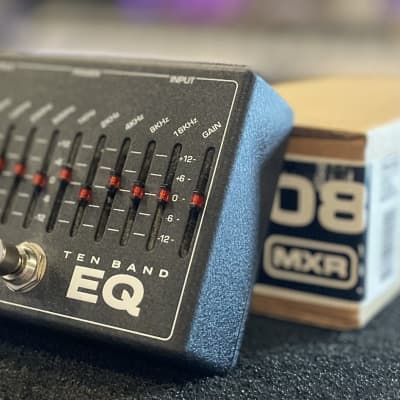

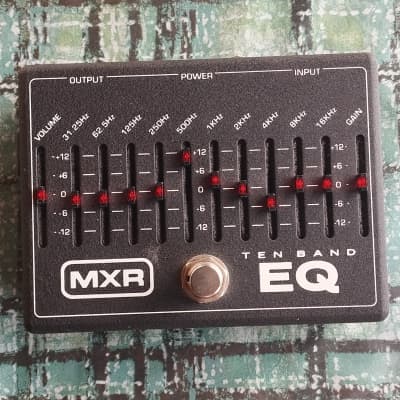

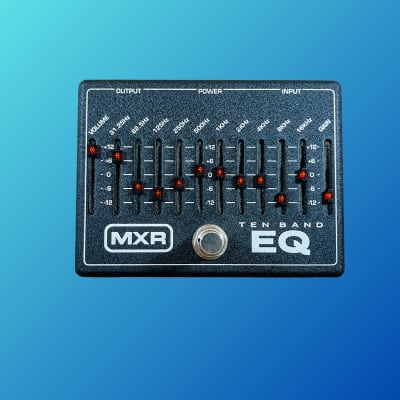

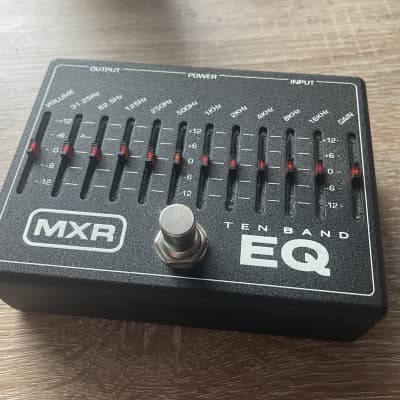

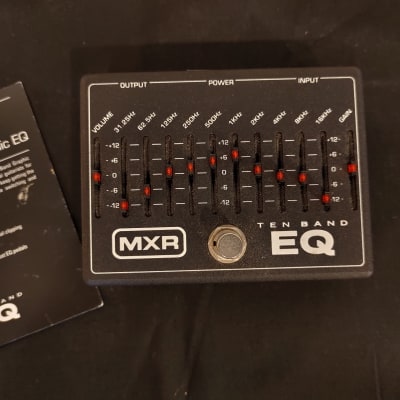

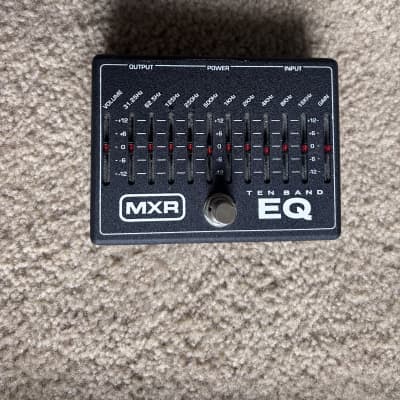

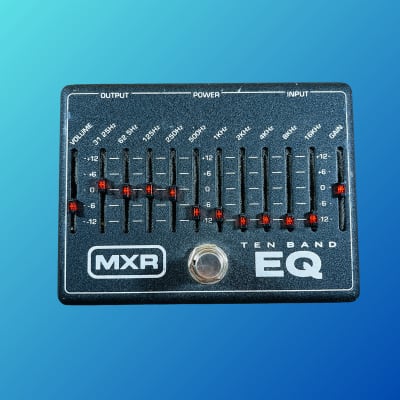

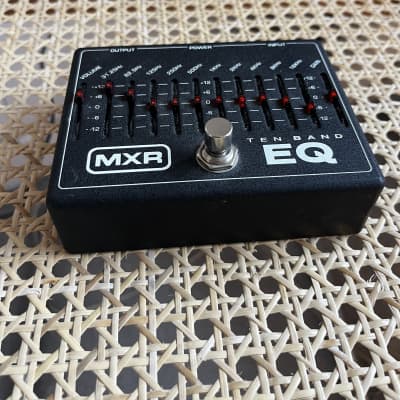

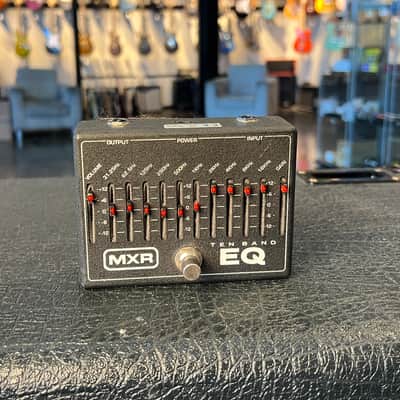

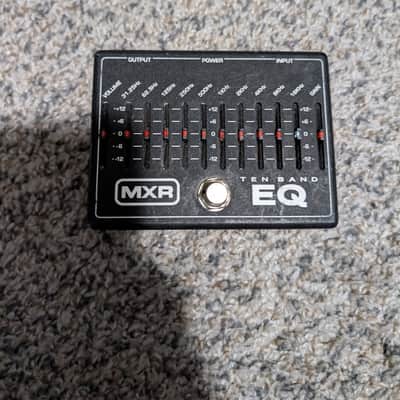

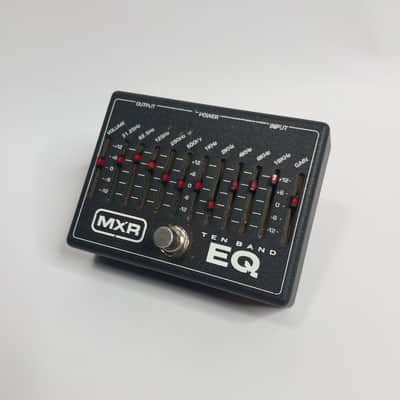

M108 Ten Band EQ

The MXR M108 Ten Band EQ is a versatile pedal designed to provide precise control over the tonal characteristics of a guitar or bass rig. It offers the following technical specifications and features:

- Input Impedance: 470 kΩ
- Output Impedance: 5 kΩ
- Max Input Level: +14 dBV at 1 kHz (All Sliders at 0 dB)
- Max Output Level: +14 dBV at 1 kHz
- Frequency Response: ±1 dB, 20 Hz to 20 kHz
- Noise Floor: -101.4dBv

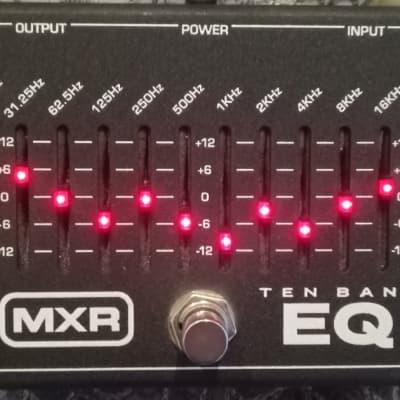

- Filtering: ±12dB at 31.25, 62.5, 125, 250, 500, 1k, 2k, 4k, 8k Hz, ±12dB shelf at 16 kHz
- Bypass: True Hardwire
- Power Supply: 18 Volts DC
- Current Draw: 48 mA

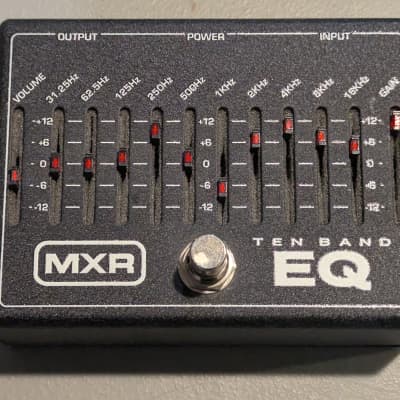

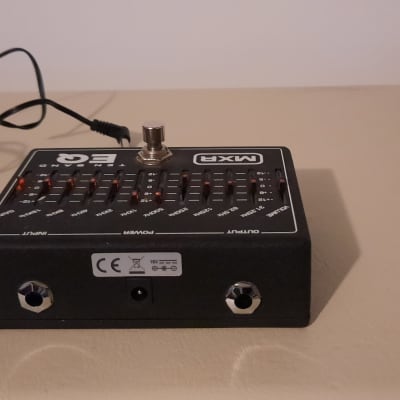

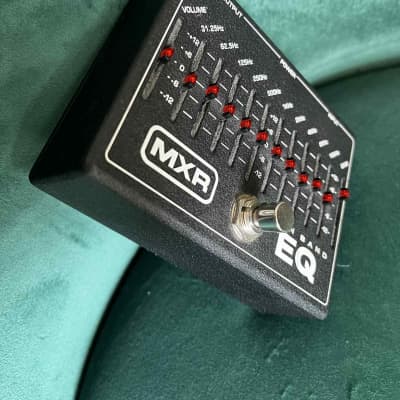

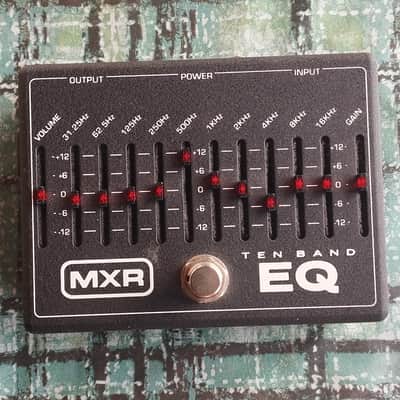

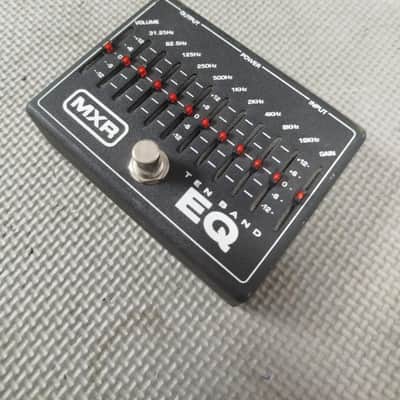

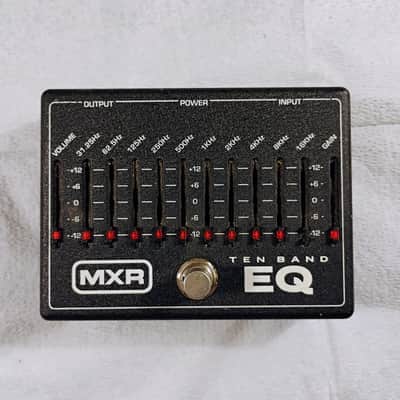

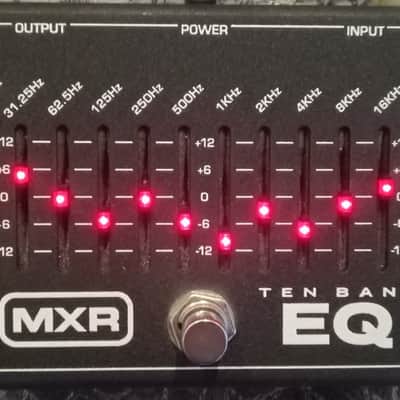

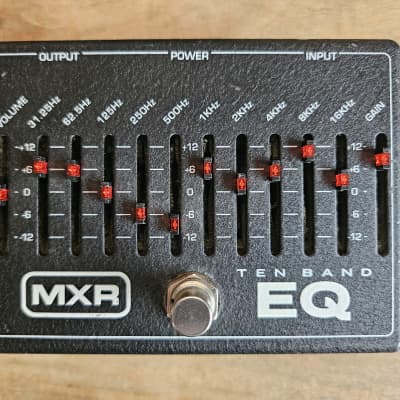

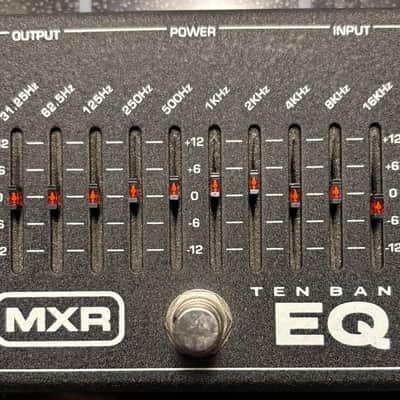

The pedal features ten carefully chosen frequencies along with input and output level controls, allowing for precise tuning of the instrument's sound. It has been upgraded with noise-reduction circuitry, true bypass switching, and a lightweight aluminum housing. Additionally, it includes a second output, enabling the user to run two separate signal chains.

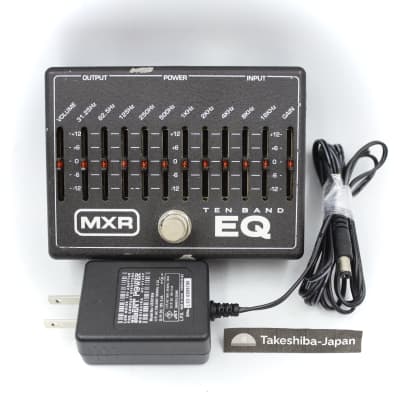

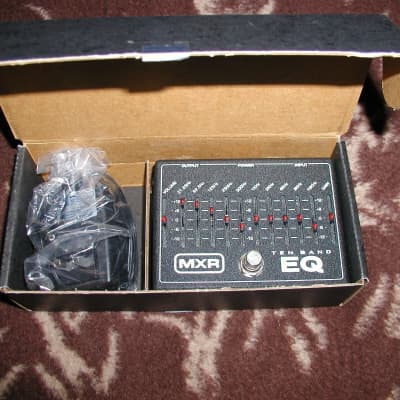

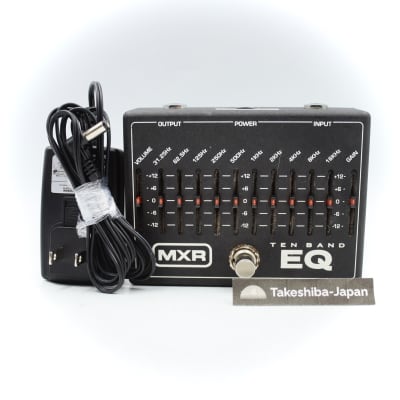

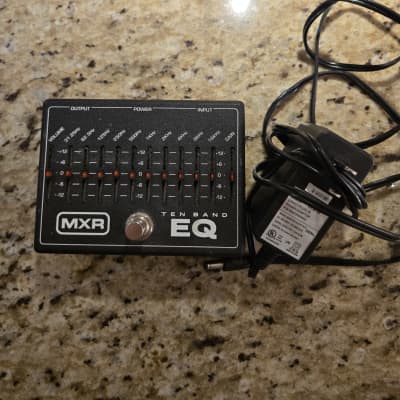

The MXR M108 Ten Band EQ is suitable for a variety of use-cases, including shaping the tone of electric guitars and basses, restoring punch and treble response to a crowded pedalboard, warming up an amplified acoustic instrument, and achieving earthshaking low-end. It can be powered by an 18-volt AC adapter such as the included Dunlop ECB004 or the DC Brick™ and Iso-Brick™ power supplies.
