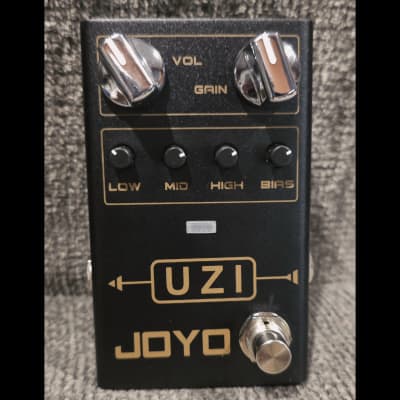

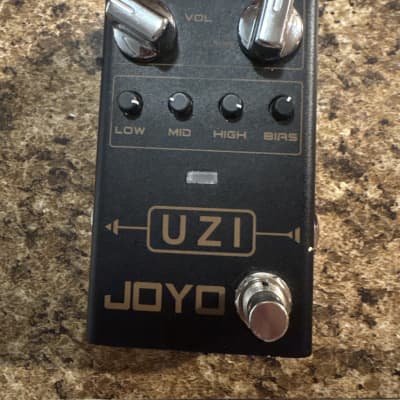

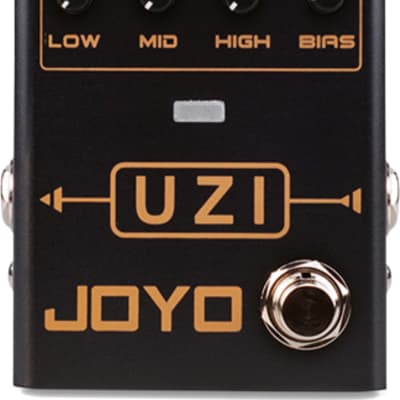

R-03 UZI

The JOYO R-03 UZI is a distortion pedal specially designed for heavy metal, characterized by high gain. It features a BIAS knob that allows users to switch easily between American Distortion and British Distortion. The pedal is equipped with a GAIN Control Knob and a VOLUME Control Knob, both of which are dynamically balanced. When adjusting the GAIN knob without adjusting the VOL knob, the signal from the circuit will automatically adjust, ensuring the volume remains consistent.

Key Specifications:
- Dimensions: 109mm x 67mm x 48mm
- Weight: 248g
- Input Impedance: 1MΩ
- Output Impedance: 200Ω
- Rated Current Consumption: 20mA
- Working Voltage: DC 9V (center minus)

Controls:
- Volume
- Gain
- Bias
- Low
- Mid
- High
- LED Toggle

Other Features:
- True Bypass
- LED Mod (Sync, Always, Off)
- Battery powered: No

The R-03 UZI is suitable for creating a wide range of heavy metal distortion tones, from crunch to fat and intense lead sounds. It is designed to be used with electric guitars and offers versatile classic distortion capabilities.
