ToneDEQ

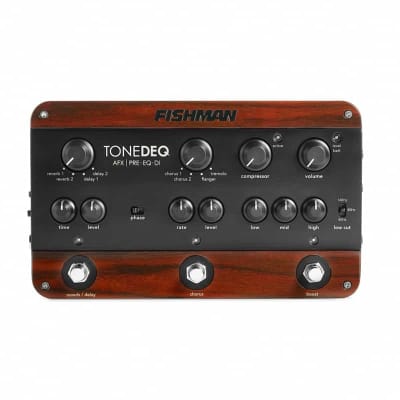

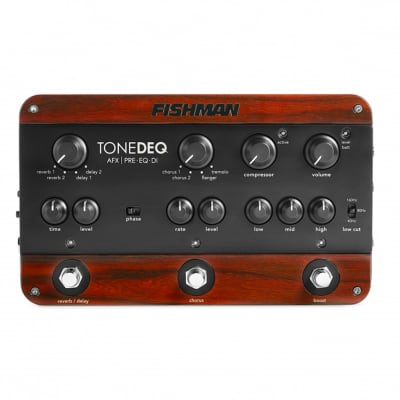

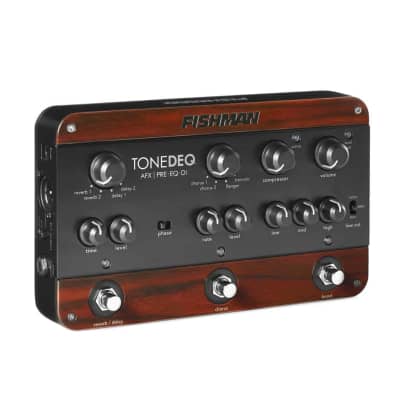

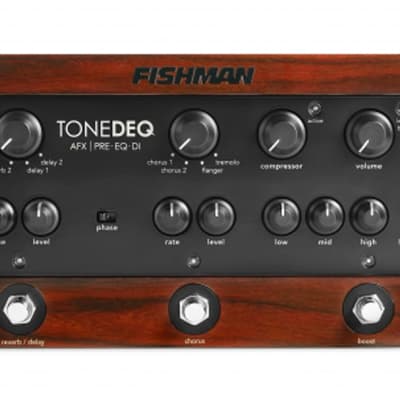

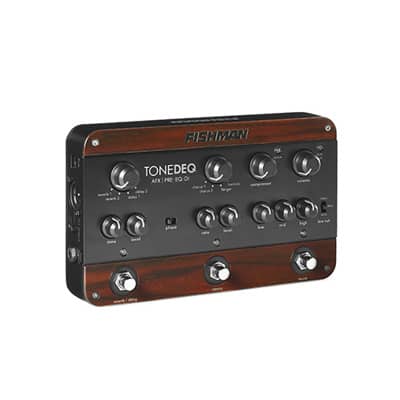

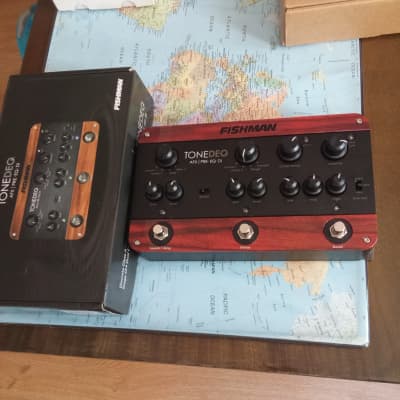

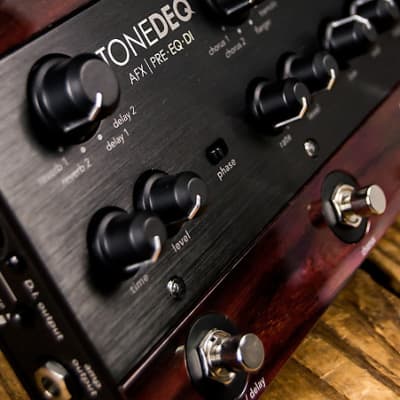

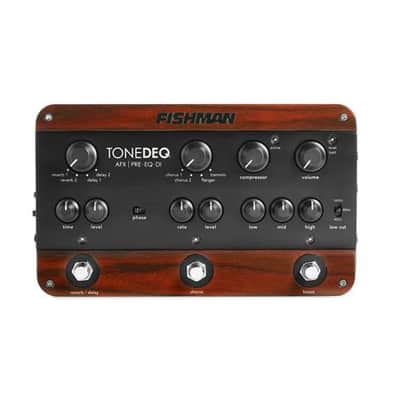

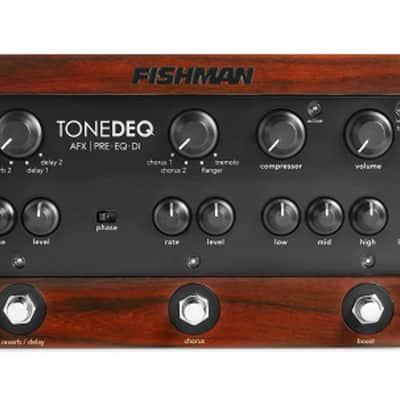

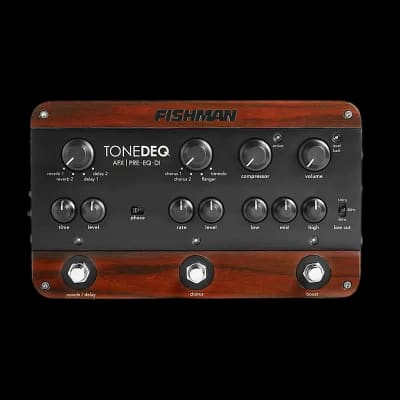

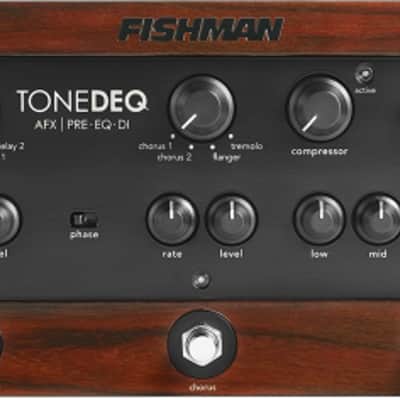

The ToneDEQ Preamp EQ by Fishman is a complete performance solution for acoustic musicians. It features a high-quality preamp, dual effects section, tone controls, a compressor, level booster, and a balanced D.I. output. The analog signal path is designed to maintain the purity of the acoustic instrument's tone, and the digital effects are mixed in parallel to avoid affecting the instrument's sound quality.

Key features and technical specifications include:
- Pure Analog Circuitry: The analog signal path goes from end to end, ensuring a richer tonal quality for acoustic musicians.
- Fully Balanced Stage D.I. : Offers flexible outputs including a 1/4" amplifier output and XLR D.I. output for minimal noise, with automatic ground- lifting and selectable pre/post EQ settings.
- Discrete Class-A Preamp: Provides high-quality discrete class-A signal conditioning with a high-impedance input for passive instrument pickups.
- Advanced 4-Band EQ: Features a legendary 4-band equalizer design for superior tone control, including Bass, Middle, Treble, and selectable Low Cut controls.
- Dual Effects: Offers reverb (2), delay (2), chorus (2), flanger, tremolo, and a soft-knee compressor with a boost footswitch (up to 9dB).
- Feedback Control: Includes selectable phase invert and a 10M Ohm, discrete class-A JFET design input.

Additional details:
- Audio I/O: 1/4” mono instrument input, 1/4” amplifier output, balanced XLR D.I. output with pre/post routing.
- Dimensions: 5.36” L x 9.5” W x 2.2” H (136 mm x 241 mm x 56 mm).
- Weight: 2.5 lbs (1.1 kg).
- Power: Can be powered by a 9-volt battery (not included) or a Fishman 910-R power adapter (optional), with a battery life of 12 hours.
