Ten Band EQ

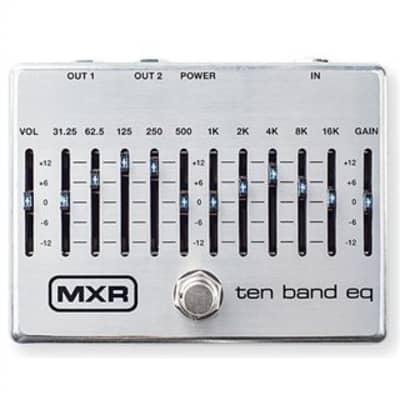

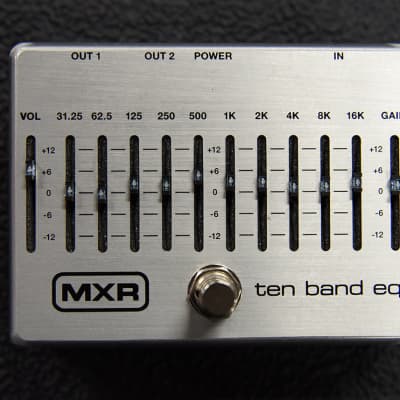

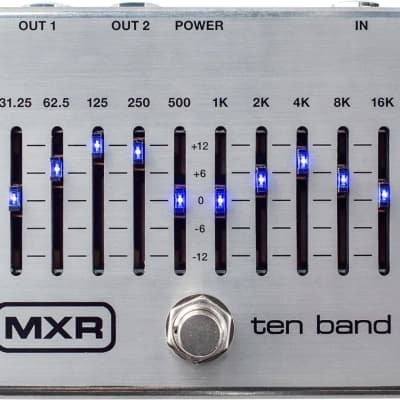

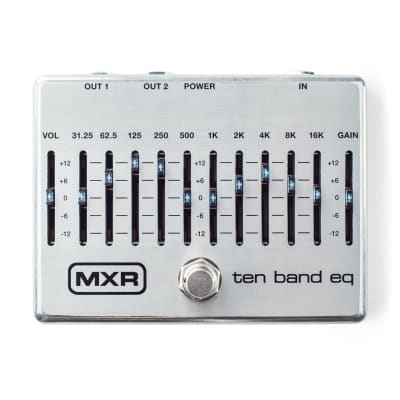

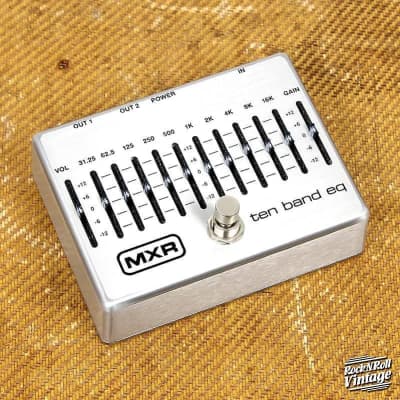

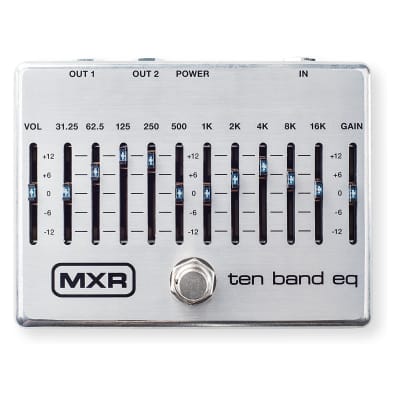

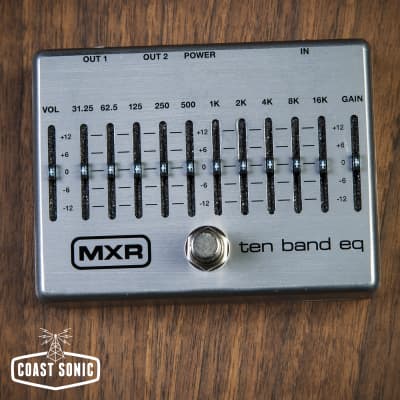

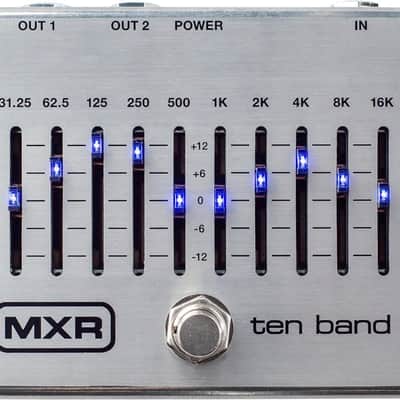

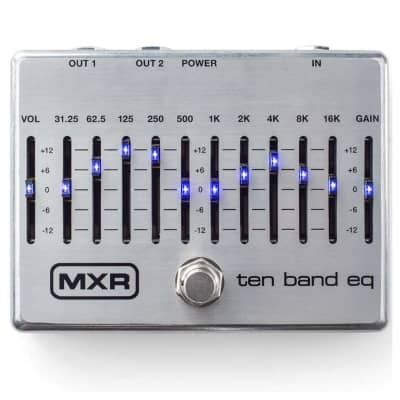

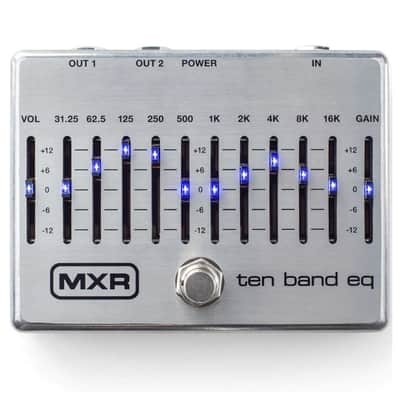

The MXR M108S Ten Band EQ is a versatile pedal designed for guitar and bass rigs, offering precise tone shaping and level control. It features noise- reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs for increased visibility, and a second output for running two separate signal chains. The pedal includes ten carefully chosen frequencies and both input and output level controls, allowing users to tune their bass or guitar rig to any room in seconds.

Technical Specifications:
- Input Impedance: 470 kΩ
- Output Impedance: 5 kΩ
- Max Input Level: +14 dBV at 1 kHz
- Max Output Level: +14 dBV at 1 kHz
- Frequency Response: ±1 dB, 20 Hz to 20 kHz
- Noise Floor: -101.4dBv (A-weighted at 5.2Vrms)
- Filtering: ±12dB at 31.25, 62.5, 125, 250, 500, 1k, 2k, 4k, 8kHz; ±12dB shelf at 16kHz
- Bypass: True Hardwire

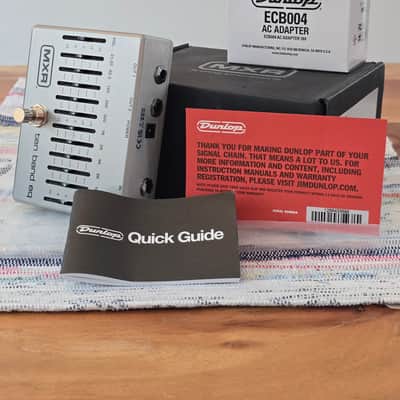

- Power Supply: 18 Volts DC (requires an 18-volt AC adapter such as the included Dunlop ECB004 or the DC Brick™ and Iso-Brick™ power supplies)
- Current Draw: 48 mA

The pedal's controls include:
1. VOLUME slider: Controls overall effect volume
2. EQ sliders: Boost or attenuate up to ±18dB at six different frequency centers
3. GAIN slider: Controls the amount of gain boost
4. FOOTSWITCH: Toggles effect on/bypass (blue slider LEDs indicate on)

The MXR Ten Band EQ is a powerful tool for achieving precise and customizable tone control in a durable and reliable enclosure, making it an essential addition to any guitarist or bassist's pedalboard.
