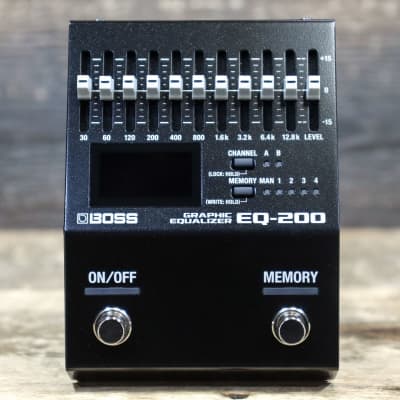

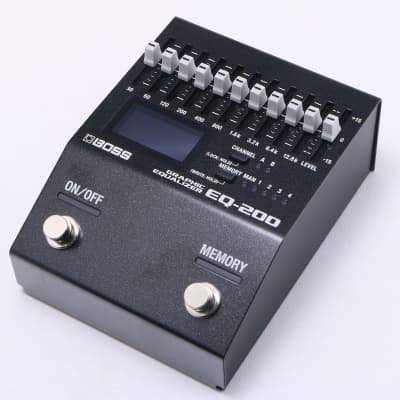

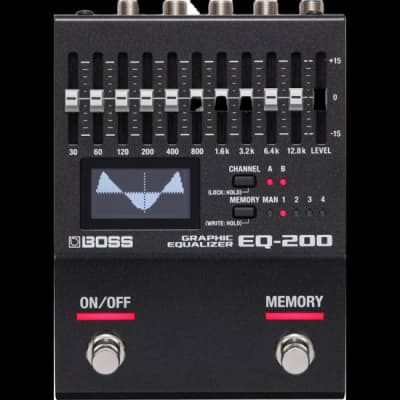

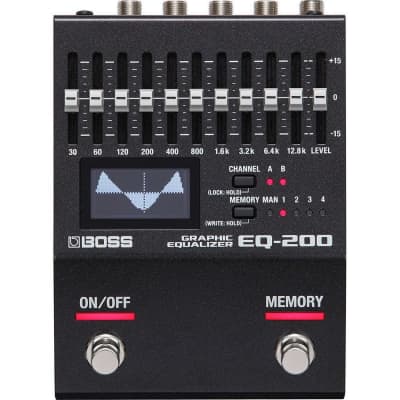

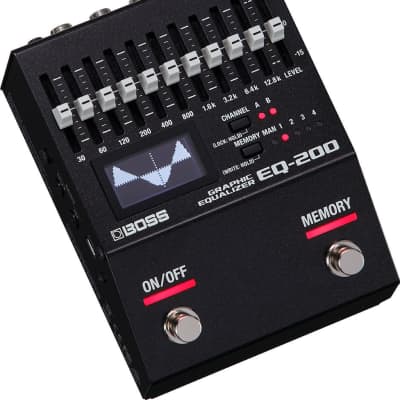

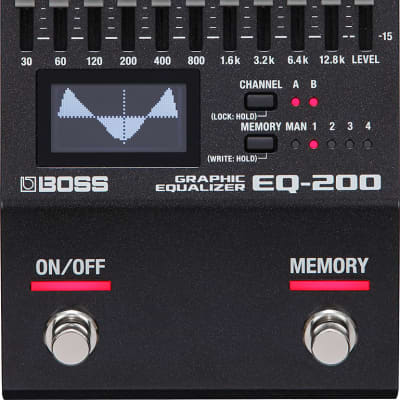

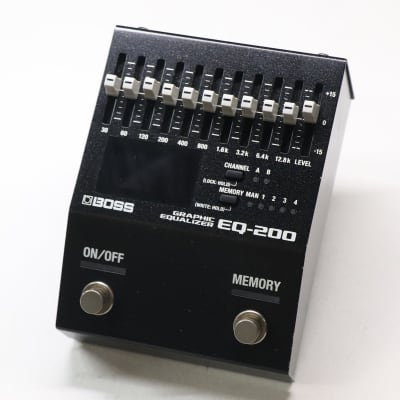

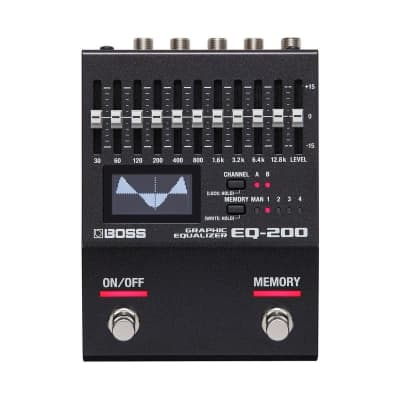

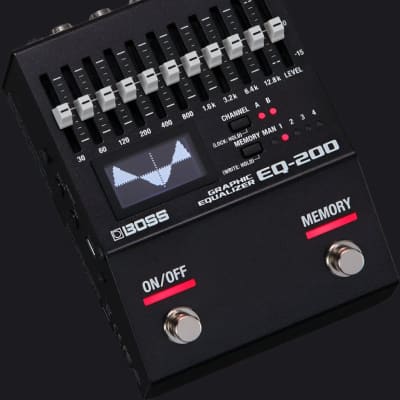

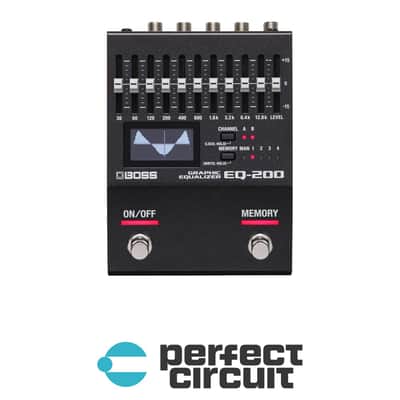

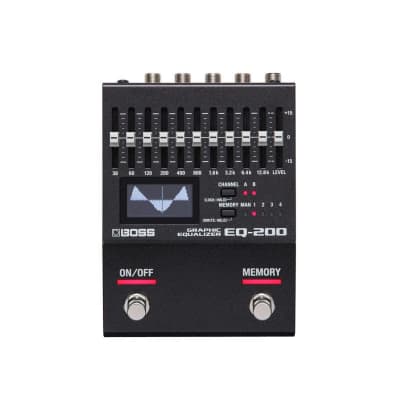

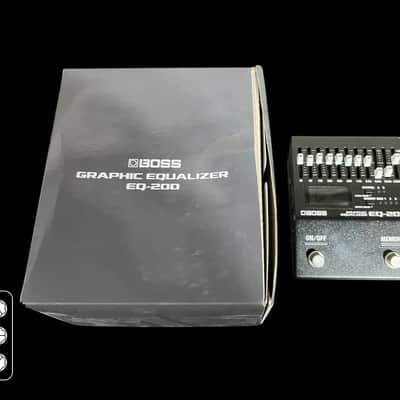

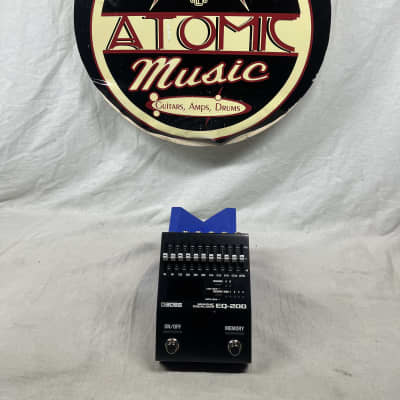

EQ-200 Graphic Equalizer

The BOSS EQ-200 Graphic Equalizer features the following technical specifications:

- Sampling Frequency: 96 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Memory: 4 + Manual
- Nominal Input Level: INPUT A/MONO, B: -10 dBu
- Maximum Input Level: INPUT A/MONO, B: +7 dBu
- Input Impedance: INPUT A/MONO, B: 2 M ohm
- Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohms
- Bypass: Buffered bypass
- Current Draw: 170 mA
- Width: 4 inches
- Depth: 5-7/16 inches
- Height: 2-3/8 inches
- Weight: 1 lb 7 oz.

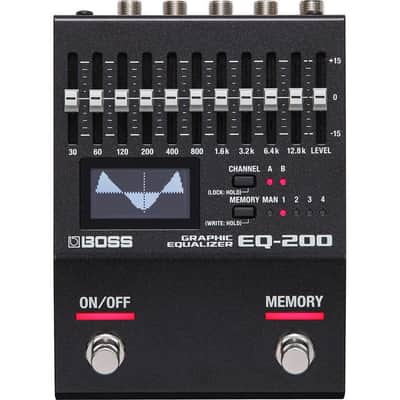

The EQ-200 is designed to provide precision tonal control with superior audio quality, offering dual 10-band EQs that can be used in stereo, parallel, or series. It also includes an insert function for processing external effects with pre and/or post tone shaping, three different range settings, and a stereo link function for operating both EQ channels together. The pedal is equipped with an intuitive interface, hands-on sliders, and a graphic EQ display for easy operation and visual monitoring of the current EQ curve. Additionally, it supports 128 user setups, real-time panel settings, and deep real-time control via footswitches, an expression pedal, or MIDI.
