503 - Guitar & Bass - Amp simulator

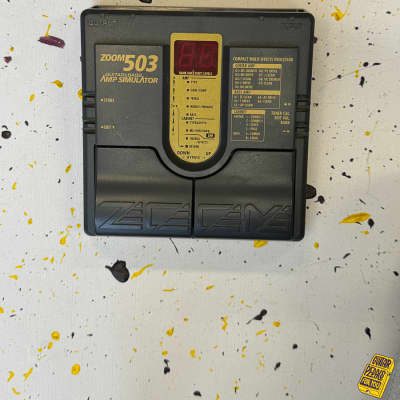

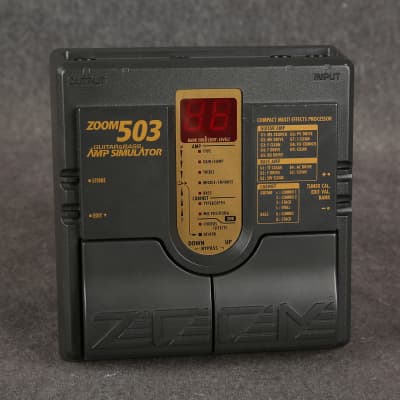

The Zoom 503 Guitar & Bass Amp Simulator is a versatile multi-effects pedal designed to provide guitar and bass players with a range of classic amplifier and speaker cabinet simulations in a compact package. The pedal offers 14 types of guitar and bass amp sounds, making it suitable for a variety of musical styles and genres.

Technical Specifications:
- Construction: The pedal is constructed from durable molded plastic, measuring approximately 15cm square by 5cm high.
- Inputs: The rear panel features two mono inputs labeled LOW and HIGH, recommended for guitars with humbucking and single-coil pickups, and an additional input for external devices such as a CD player.
- Outputs: The pedal features a stereo output for connection to a guitar amp, mixer, or headphones.
- Power: The unit can be powered using the included external power supply or a standard 9V battery.
- Patch Storage: The Zoom 503 can store a maximum of 24 patches, arranged in six banks of four (A1 to F4).

Features:
- Amp and Cabinet Simulations: The pedal offers a total of 15 amp and six cabinet types, including clean, overdriven, and high-gain tube stack amp simulations for both guitar and bass.
- Effects Chain: The pedal includes basic reverb, delay, chorus/flanger, and tremolo effects that can be individually activated or deactivated within each patch.
- Editing: The pedal features intuitive patch editing capabilities, with a two-digit LED display for patch number or parameter value, and indicator lights for active effects within a patch.
- Tuner: A built-in chromatic tuner provides convenient tuning for live performances.

Use Cases:
- Live Performance: The Zoom 503 is designed for use in live performances, offering a wide range of amp and cabinet simulations for guitar and bass players.
- Studio Use: While primarily intended for live performance, the pedal also caters to studio users, providing a simple means of achieving diverse guitar or bass sounds for recording purposes.

Functionality:
- Sound Quality: The pedal delivers impressive sound quality, with the ability to create and customize a wide range of guitar and bass tones with ease.
- Versatility: The pedal's amp and speaker cabinet simulations are effective, providing convincing electric guitar and bass sounds suitable for multitrack recording and live use.
- Convenience: The Zoom 503 offers a convenient and portable solution for guitar and bass players seeking a variety of amp and effects options at an affordable price point.
