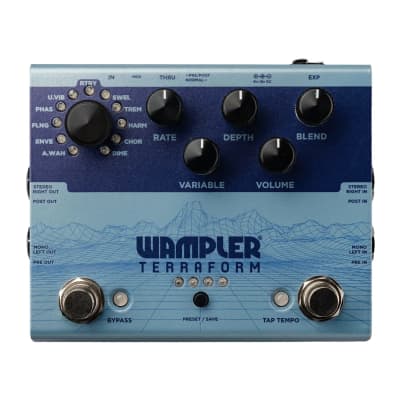

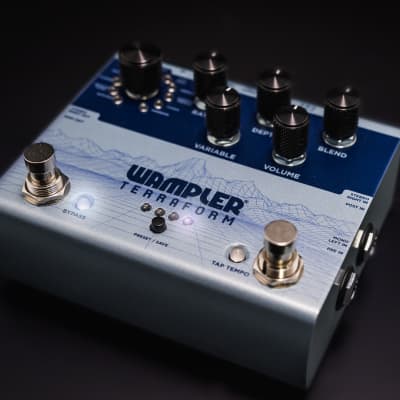

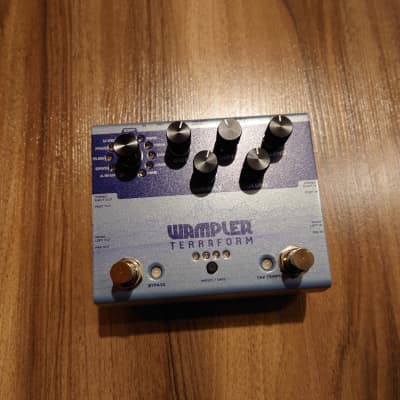

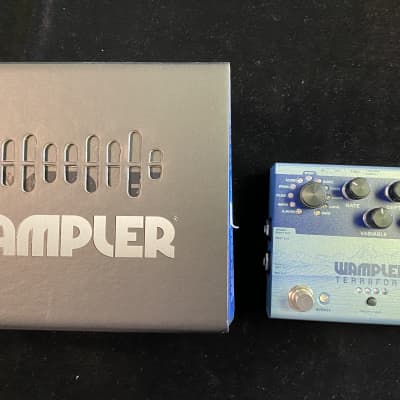

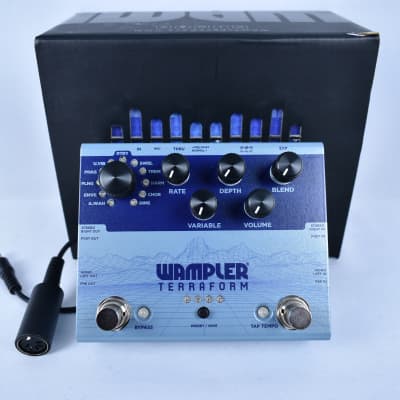

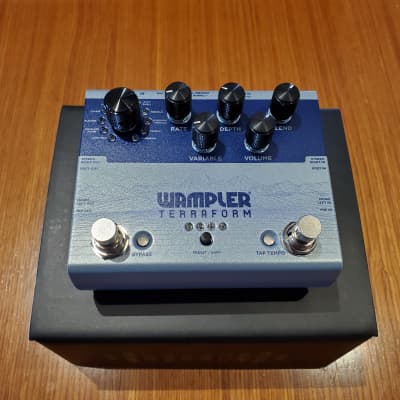

Terraform

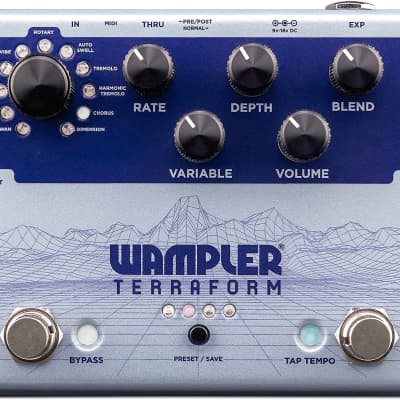

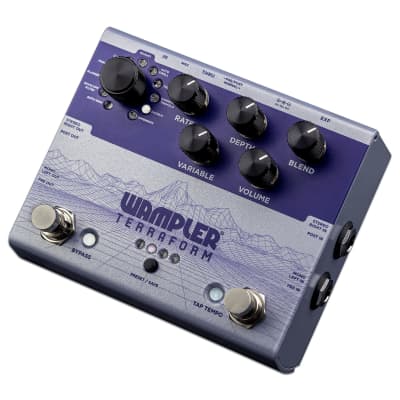

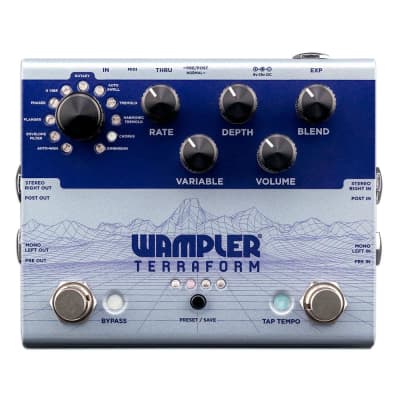

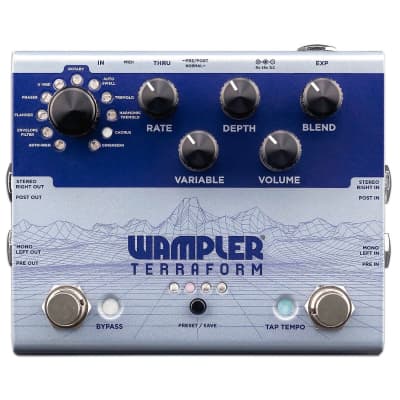

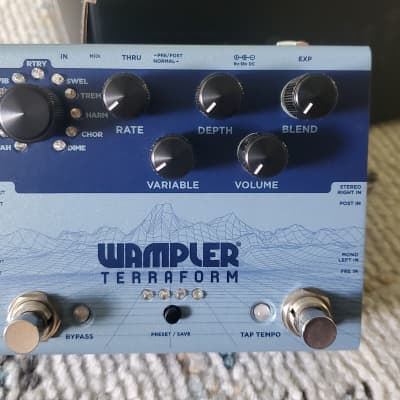

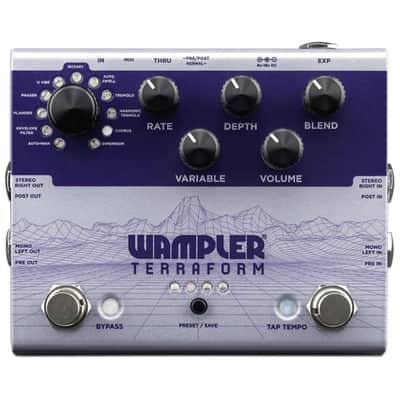

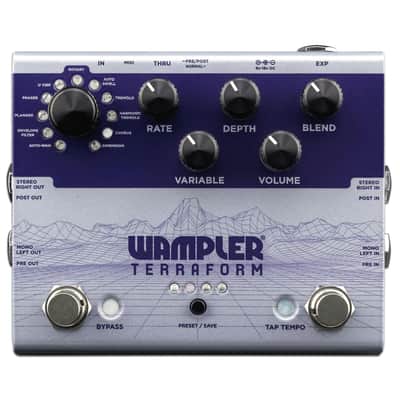

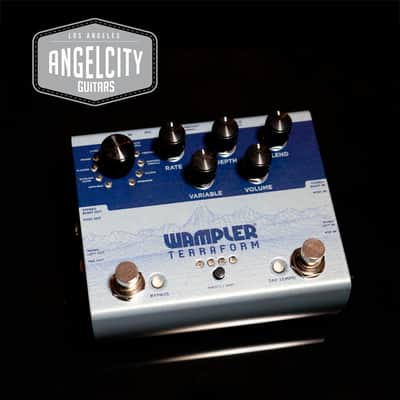

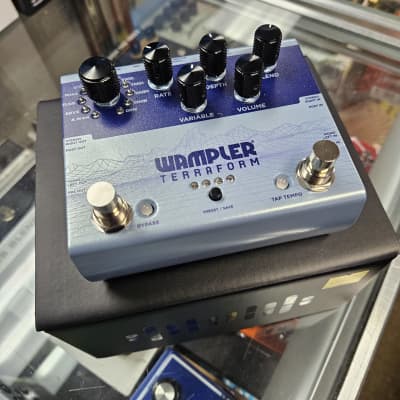

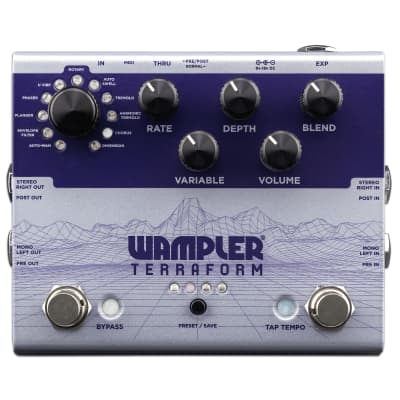

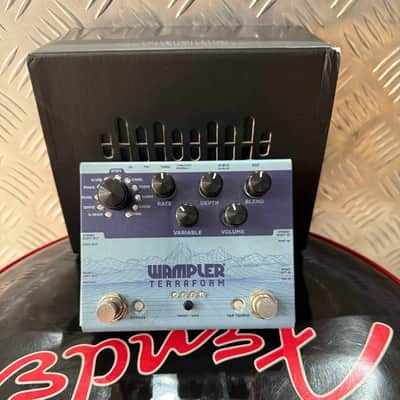

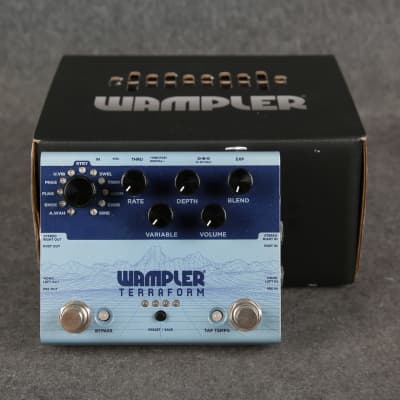

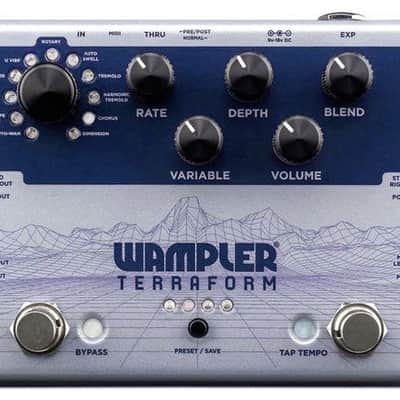

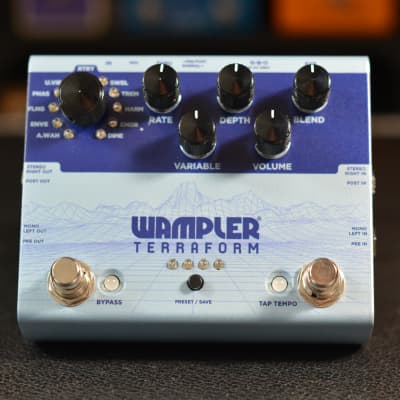

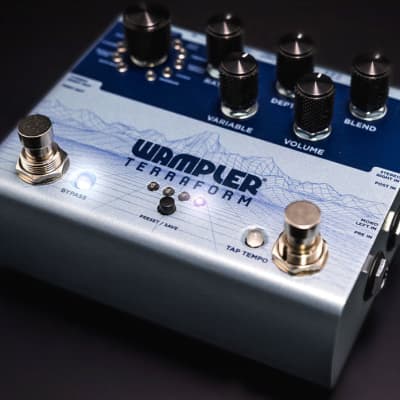

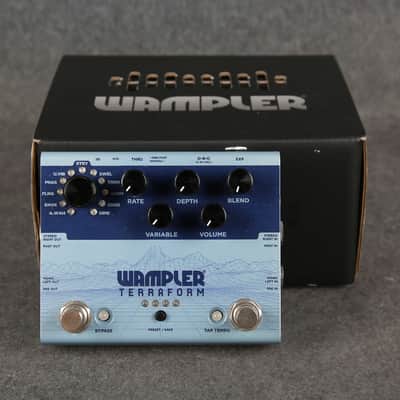

The Wampler Terraform is a multi-modulation guitar effects pedal designed and built in the USA. It features 11 custom-designed effects blocks, including Dimension, Chorus, Harmonic Tremolo, Tremolo, AutoSwell, Rotary, U-Vibe, Phaser, Flanger, Envelope Filter, and AutoWah. The pedal offers real-time control over vital effects parameters with 5 knobs and an optional expression pedal for additional control.

Key Technical Specifications:
- Power draw: 107mA at 9v, 108mA at 18v
- True stereo capability for expansive sonic width
- Relay true bypass with soft switches
- 8 presets to store favorite sounds, fully mappable via MIDI
- Full assignable EXP pedal input
- Dimensions: 3.75” x 4.75” x 1.75″ (height excludes knobs and switches)
- Power Supply: 9V DC or 18V DC, center negative
- Mono/Stereo: Mono Left In, Stereo Right In, Mono Left Out, Stereo Right Out, Thru, MIDI In
- Bypass Mode: True Bypass
- Works on batteries: No
- Format: Big

The Terraform offers multiple signal routing options, allowing users to place each effect in the signal chain where it belongs. It also features MIDI control for up to 128 incoming presets, fully mappable down to the 8 preset locations. The pedal's sophisticated design and high-grade components make it a versatile and powerful tool for guitarists seeking a wide range of modulation effects.
