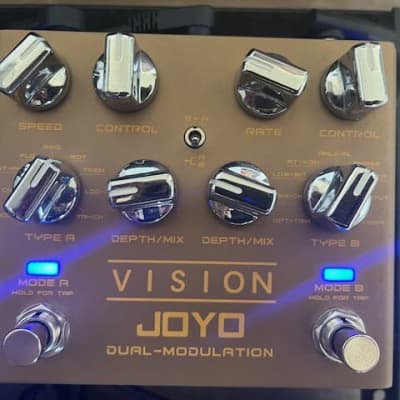

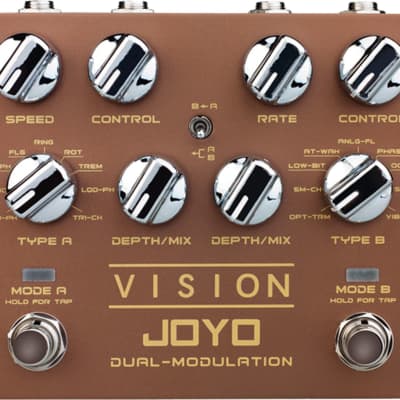

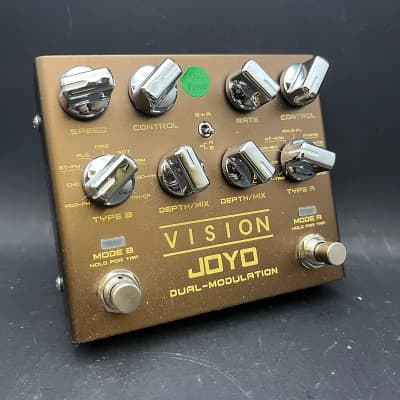

R Series R-09 Vision Modulation

The Joyo R Series R-09 Vision Modulation is a dual-channel stereo modulation pedal designed for electric guitar effects. It offers 18 total effects, with each channel featuring 9 effects. The pedal supports stereo input and output, allowing for independent "SPEED/RATE," "CONTROL," and "DEPTH/MIX" knobs for each effect. It also includes a 3-position toggle switch for choosing the sequence of the two effects' output.

The pedal features a tap tempo function, true bypass, and a rugged aluminum alloy casing. It has a current draw of 170mA and requires a DC 9V power supply (not included). The dimensions of the pedal are 130mm (L) x 110mm (W) x 50mm (H), with a weight of 425g.

The modulation effects include Mod-Phase, Chorus, Stereo-Phase, Flanger, Rotary, Trem, Liquid Phase, Tri-Chorus, Opt-trem, SM-CH, Low-bit, At-Wah, Analog Flange, Octave, Stutter, and Vibrato, among others.

The pedal allows for parallel or series use of any two effects, with the ability to switch between series or parallel output using a center-mounted toggle switch. It also features LED light control with SYNC, ALWAYS, and OFF modes.

Specifications:
- Current: 170mA
- Sample rate: 44.1K
- Sampling accuracy: 24bit
- Signal Bypass Type: True Bypass
- Working Voltage: DC 9V (center minus)
- Power Supply: Only supports external power supply, with no battery compartment
- Input: 1/4” mono audio interface x2 (impedance 1M Ohms)
- Output: 1/4” mono audio interface x2 (impedance 100 Ohms)

The package includes the JOYO R-09 pedal and a user's manual (Power Supply Adapter is NOT included).
