Dumbledore

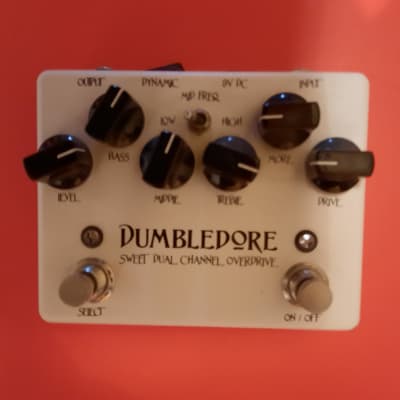

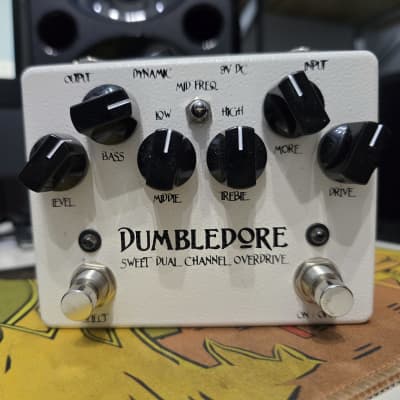

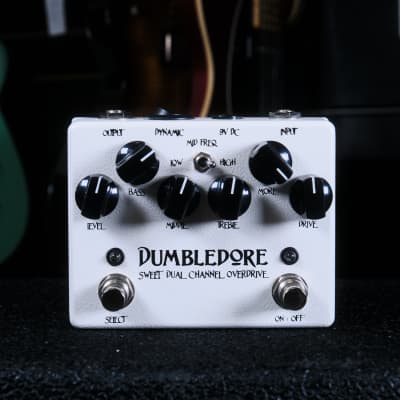

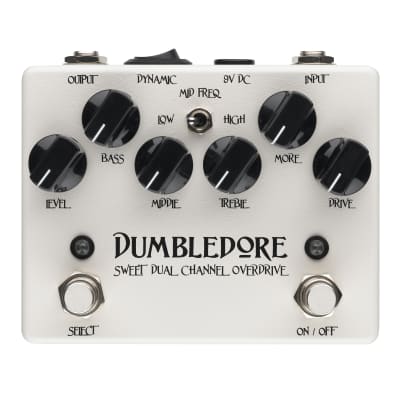

The Dumbledore by Weehbo is a dual-channel low to medium gain overdrive pedal designed to emulate the sound of the legendary Overdrive Special by Dumble. It offers transparent and natural sound with a touch of sweetness, making it suitable for use as a medium overdrive or a clean boost.

Key Features:
- Active 3-Band Equalizer: The pedal features an active 3-band equalizer and one volume control for both channels, with each channel having its own gain control.
- Gain Controls: Each channel has its own gain control, with the gain controls DRIVE and MORE interacting when the second channel is activated to allow a harmonic change in gain.
- Midrange Toggle Switch: The toggle switch allows users to choose between different mid frequencies, providing the flexibility to cut through the mix if the guitar sounds too muddy.

Technical Specifications:
- Supply Voltage: 9V DC
- Current Draw: 30mA @ 9V
- Controls: Drive, More, Treble, Middle, Bass, Level
- Switches: On/Off (True Bypass), Select, Mid Freq, Dynamic
- Jacks: Input, Output, 9V DC
- Indicator: LEDs 5mm red, ultrabright
- Dimensions: Approximately 120 x 95 x 55 mm
- Weight: Approximately 360 g
- Made in Germany

The Dumbledore pedal is designed to provide guitarists with a versatile overdrive solution, offering precise control over the tone and gain characteristics.
