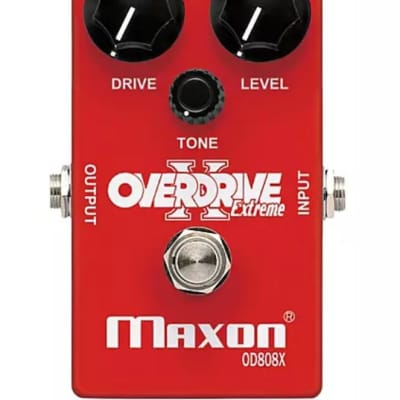

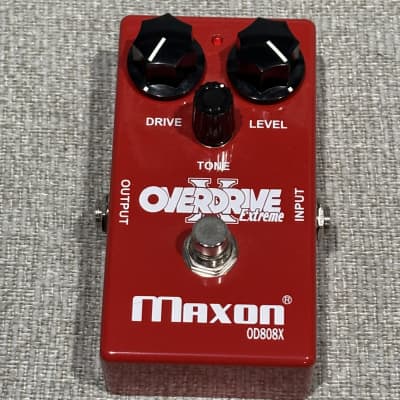

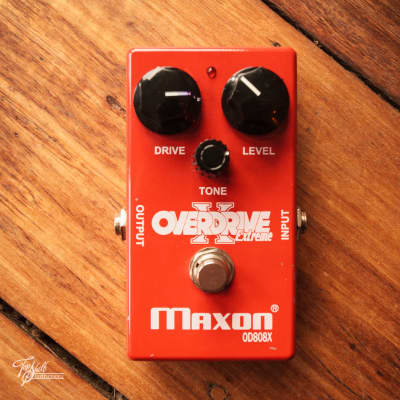

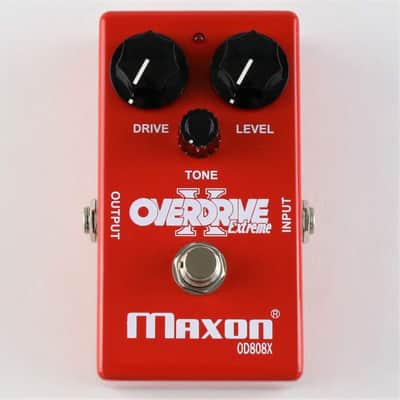

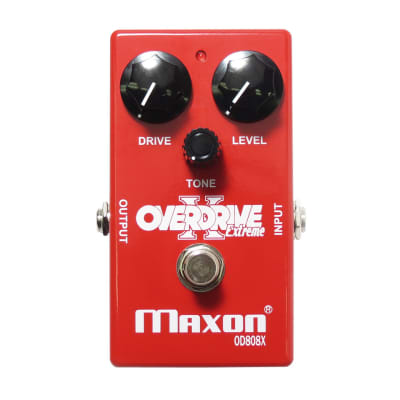

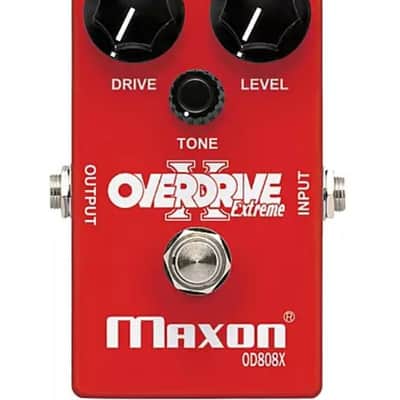

Overdrive Extreme (OD808X)

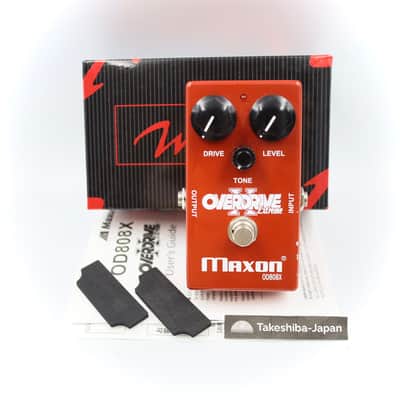

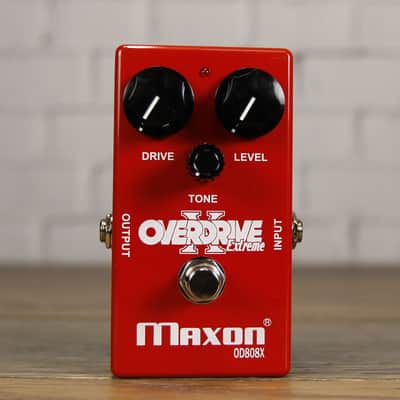

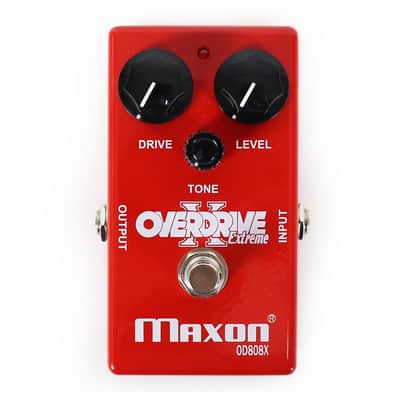

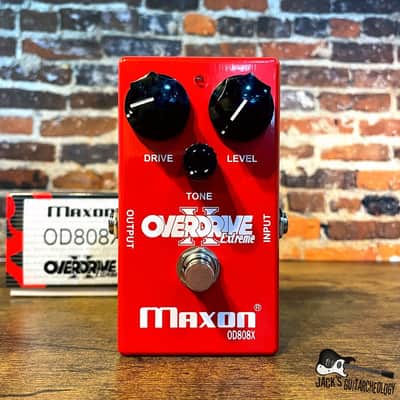

The Maxon Overdrive Extreme (OD808X) is a modified version of the classic OD808 Overdrive pedal, designed to offer extended frequency response for improved note definition and clarity. It features increased output (+5 dB over OD808) for extra volume boost and harder clipping for a more aggressive, amp- like distortion. The pedal is equipped with buffered bypass switching and shares the same basic circuit architecture as the OD808, with altered component values to achieve the ultimate overdrive tone.

Technical Specifications:
- Input Impedance: 500K Ohms
- Output Impedance: 10K Ohms
- Maximum Gain: 40dB (2 kHz)
- Input Noise: -110dB or less (Input shorted, IHF-A weighted)
- Controls: DRIVE, TONE, LEVEL
- Switch: BYPASS/EFFECT (Buffered Electronic Bypass)
- Indicator: BYPASS/EFFECT LED
- Power Supply: 6F22/6LF22 9V battery x 1 or Maxon AC adaptor
- Power Consumption: 7.2mA max. / 9VDC
- Battery Life: 9VDC manganese battery 78 hours 25 deg C (FUJITSU 6F22), 9VDC alkaline battery 114 hours 25 deg C (TOSHIBA 6LF22)
- Dimensions: 70(W) x 113(D) x 56(H) mm
- Weight: Approx. 300g (incl. battery)

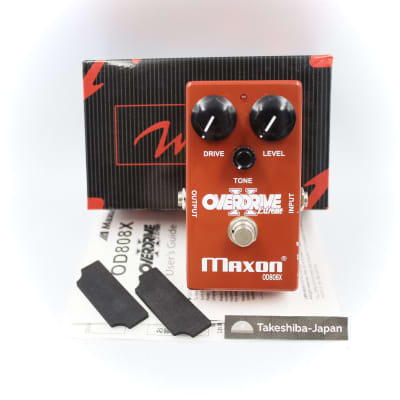

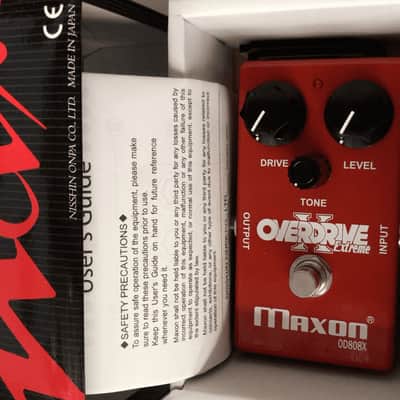

- Accessory: 6F22 9V battery x 1, operating manual

The OD808X is designed to create a versatile, amp-like overdrive with excellent note clarity that won’t get lost in a mix. It offers a wider frequency response than a stock OD808, with an extended hi-frequency tonal range that provides additional clarity without becoming harsh. The pedal is suitable for use in various musical applications, offering a powerful and dynamic overdrive effect.
