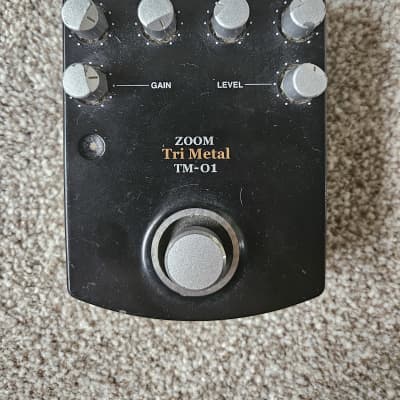

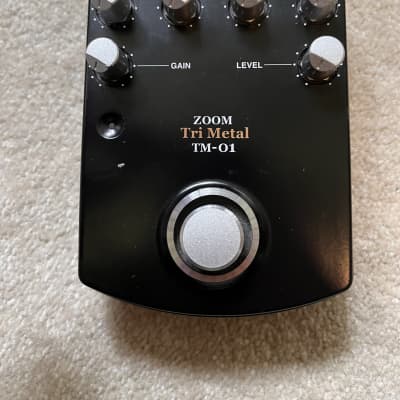

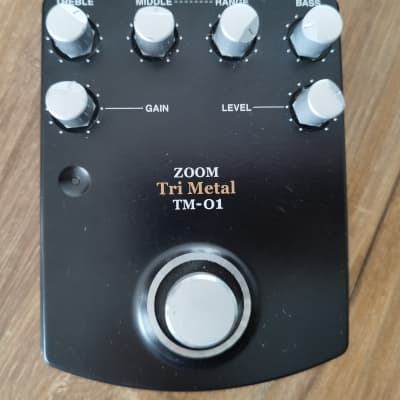

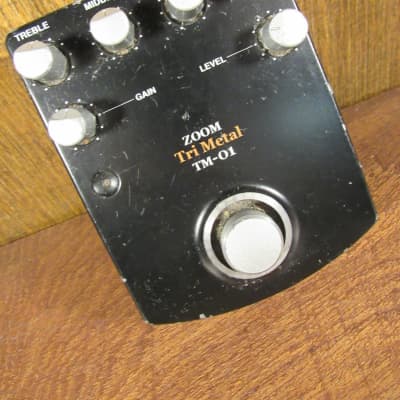

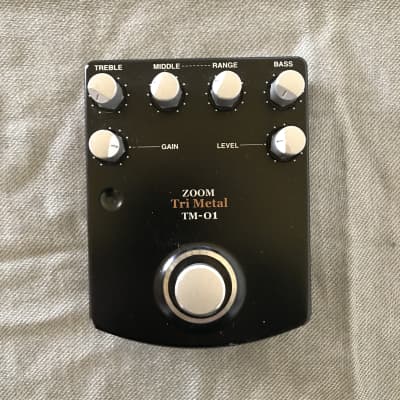

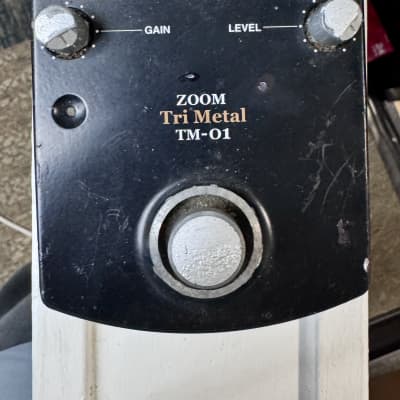

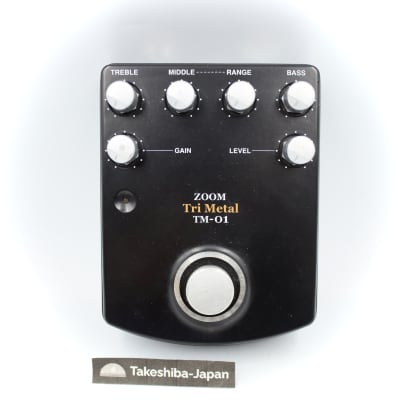

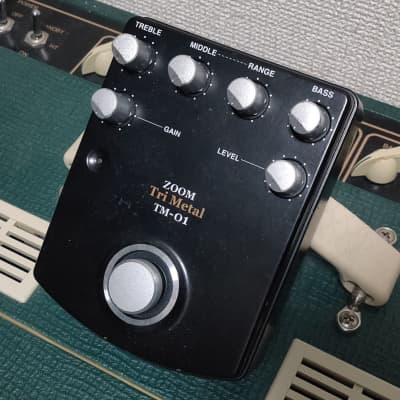

Tri Metal TM-01

The Tri Metal TM-01 by Zoom is a dedicated high-gain distortion unit designed for guitar and bass. It features a triple high-gain circuit that offers standard or unique distortions. The pedal includes a 3-band equalizer with separate controls for treble, bass, and a parametric midrange control, allowing for precise frequency adjustments. The unit is designed with a low- noise circuit and supports 7-string guitars, providing support for heavy rock and metal genres.

Key Specifications:
- Control: 6 (Gain, Level, Treble, Bass, Middle, Range)
- Input: 1/4" monaural phone jack x 1
- Input Impedance: 470k ohm
- Nominal Input Level: -20dBm
- Output: 1/4" monaural phone jack x 1
- Output Load Impedance: 10k ohm or more
- Maximum Output Level: +10dBm
- Power Requirement: 6F22-9V Battery x 1 or Optional AC Adaptor AD-0006 (DC9V, 300mA, Center Minus Type)
- Battery Life: Longer than 26 hours (Alkaline Type)
- Dimensions: 98 (W) x 127 (D) x 48 (H) mm
- Weight: 720g (With Battery)

The unit is housed in a rugged, full-metal body construction and features a mechanical true bypass switch for on/off functionality. It can be powered by a 9V battery or an optional AC adapter. The Tri Metal TM-01 is designed to deliver ultra high-gain while maintaining low noise, making it suitable for heavy rock and metal music styles.
