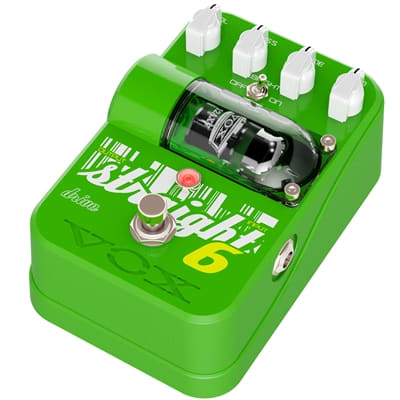

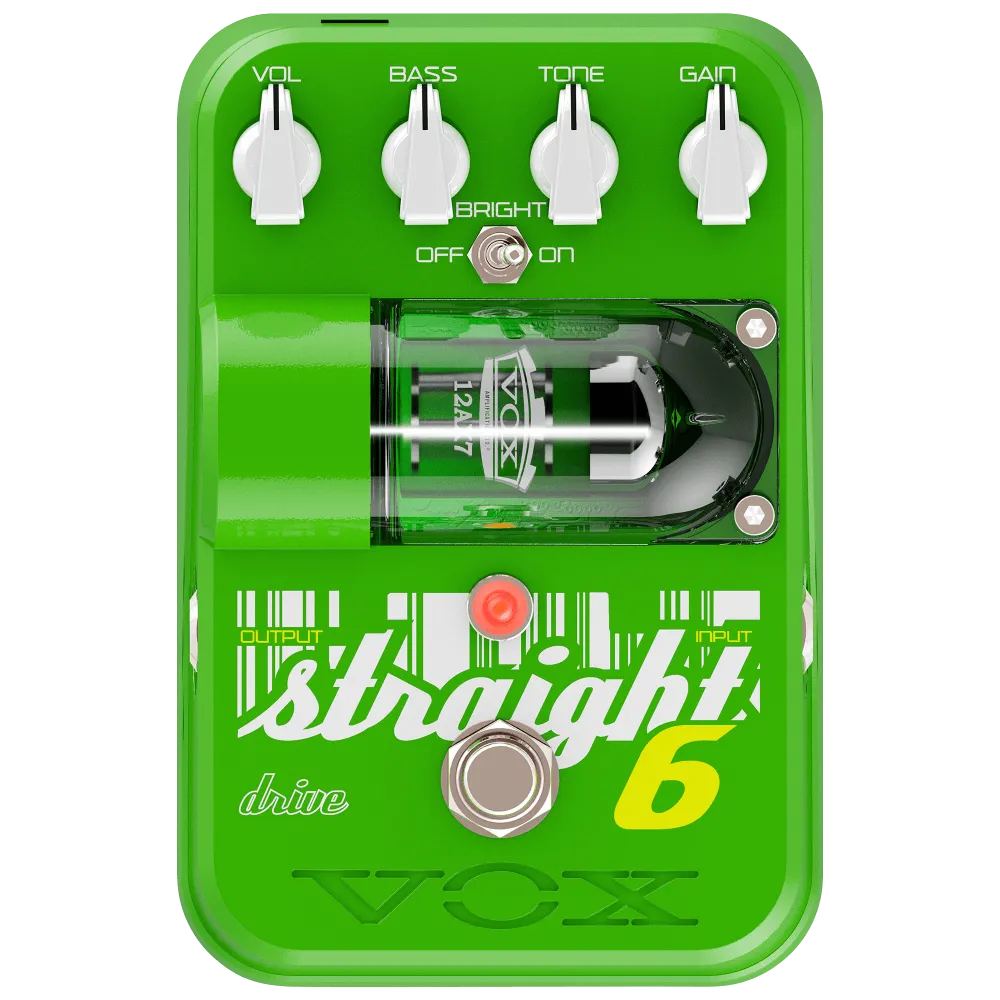

Tone Garage Straight 6 Drive

The Vox Tone Garage Straight 6 Drive is an overdrive pedal designed to deliver a wide dynamic range of British-flavored distortion. It incorporates newly- developed Hi-Volt technology, allowing the vacuum tube to operate at 200V while running on a battery, resulting in a true tube-driven sound. The pedal features a gain control that varies the character of the sound, offering a range of natural overdrive tones. The power supply circuit is carefully designed to extend the vacuum tube lifespan.

Technical Specifications:
- Input Impedance: 1mΩ
- Output Impedance: 2.2kΩ
- Vacuum Tube: ECC83 / 12AX7
- Connections: INPUT jack (guitar input), OUTPUT jack (line output)
- Power: AA battery x 6

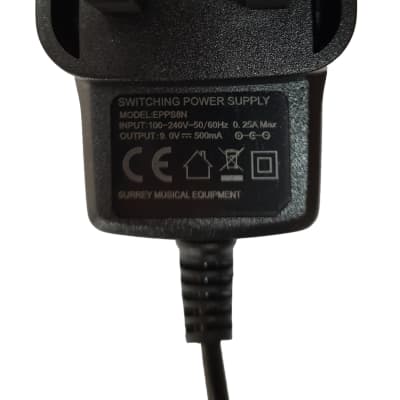

- AC Adapter: DC 9V (Option)
- Vacuum Tube Operating Voltage: 200V
- Consumption Current: 240 mA
- Battery Life: Approximately 7 hours
- Dimensions: (WxDxH): 87mm x 132mm x 63mm, 3.43" x 5.2" x 2.48"
- Weight: 420 g / 14.81 oz. (not including battery)

The Vox Tone Garage Straight 6 Drive is suitable for a wide range of musical styles and is designed to provide natural and dynamic overdrive tones akin to those of a vacuum tube amplifier.
