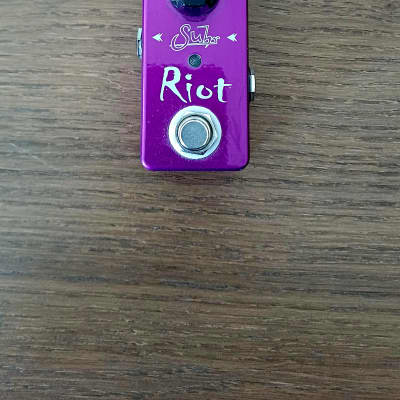

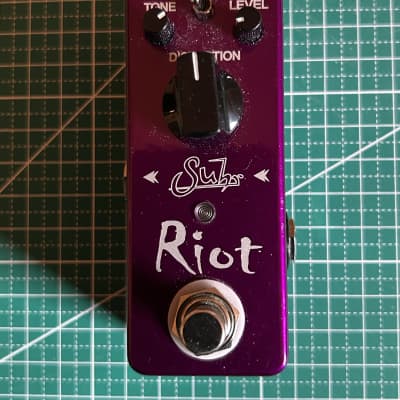

Riot Mini

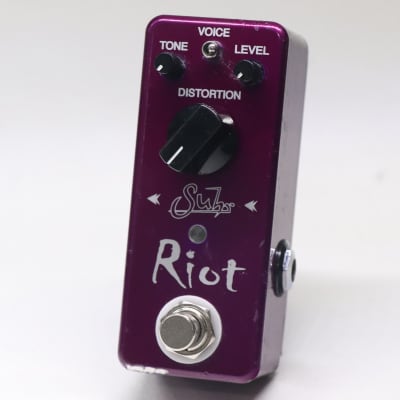

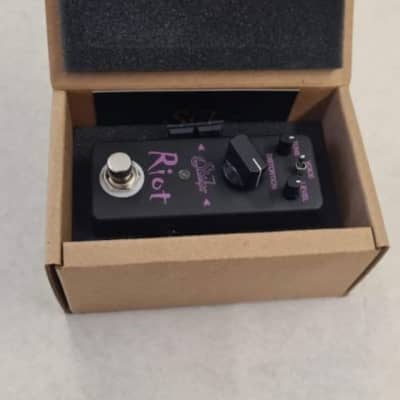

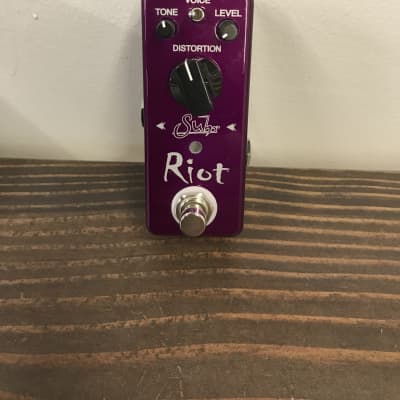

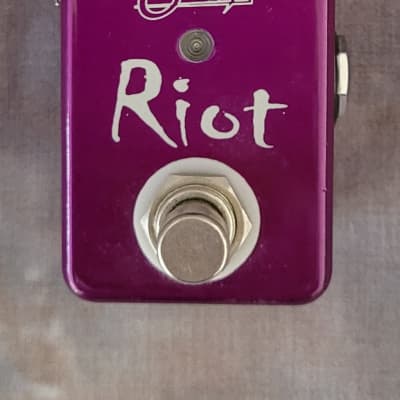

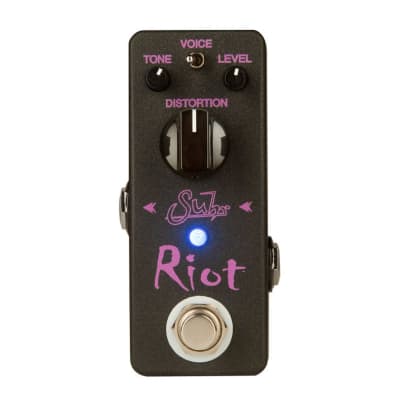

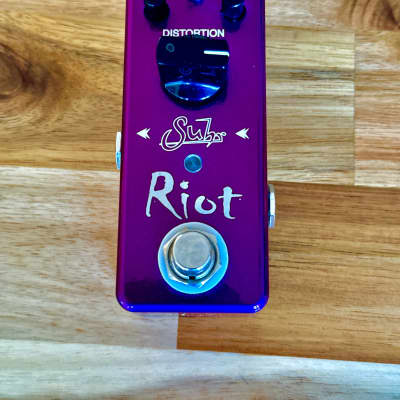

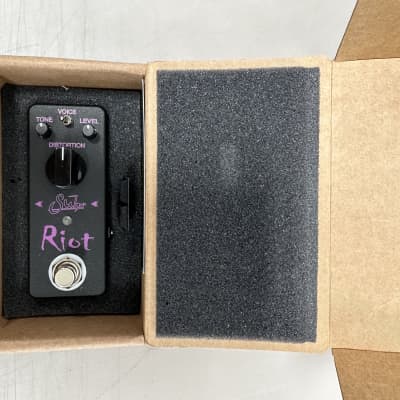

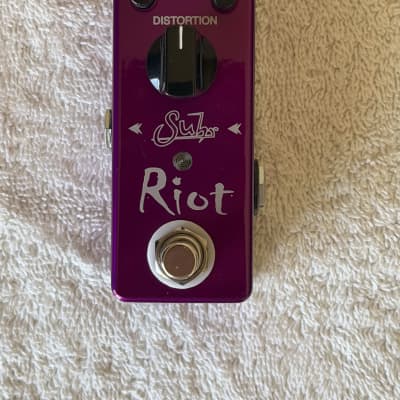

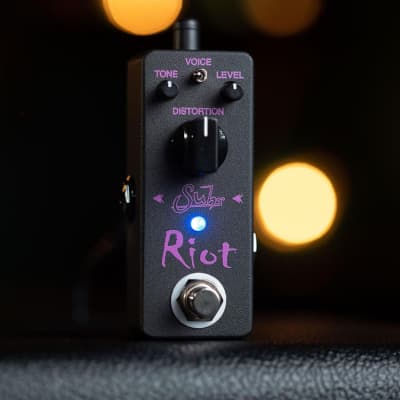

The Suhr Riot Mini is a high-gain distortion pedal designed to provide the sonic characteristics and touch sensitivity of a high-quality 100-watt tube amplifier. It is compact and pedalboard-friendly, making it suitable for various use-cases. The pedal features Distortion, Tone, and Level Controls, as well as a 2-Position Voicing switch, True Bypass, and an On/Off Effect Status Indicator.

Technical Specifications:
- Input Impedance: 1M Ohm
- Output Impedance: 600 Ohm
- Power Connector: Center Negative, 2.1mm x 5.5mm
- Operating voltage: 4V to 18V (nominal 9V)
- Maximum Voltage: 20 Vdc
- Reverse Battery Protection: Yes
- Over Voltage Protection: Yes
- Current Consumption: 8mA
- Dimensions: 1.82”(W) x 3.85”(D) x 1.89”(H)
- Weight: 0.365lb
- ROHS Compliant: Yes

The pedal is housed in a road-worthy powder-coated die-cast enclosure, ensuring reliable performance. It can be powered via any -9Vdc power supply. The Riot Mini is suitable for guitarists looking to add high-gain distortion with versatile tonal shaping to their setup while conserving pedalboard space.
