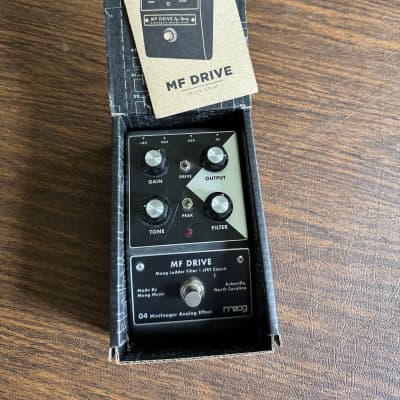

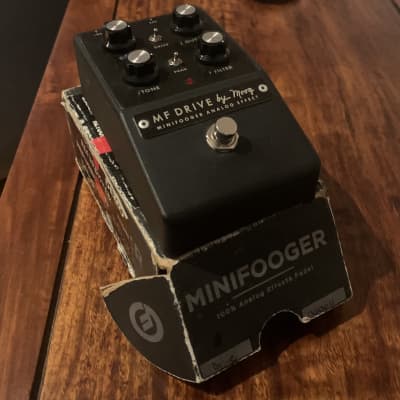

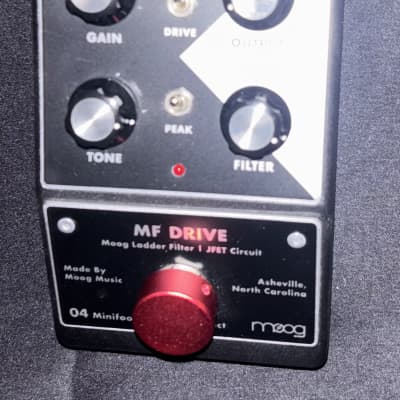

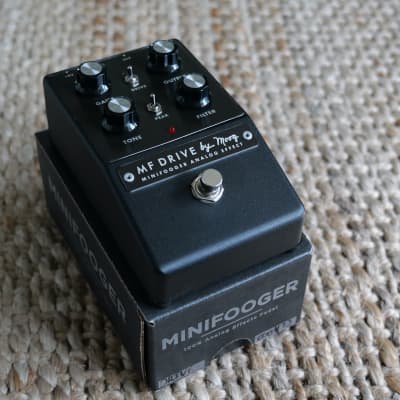

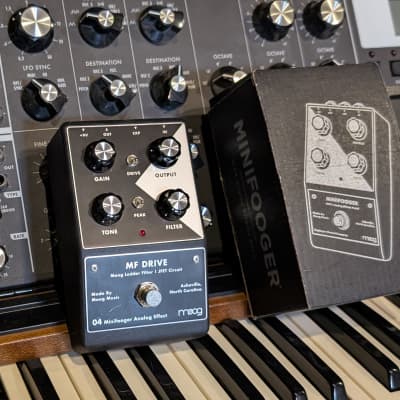

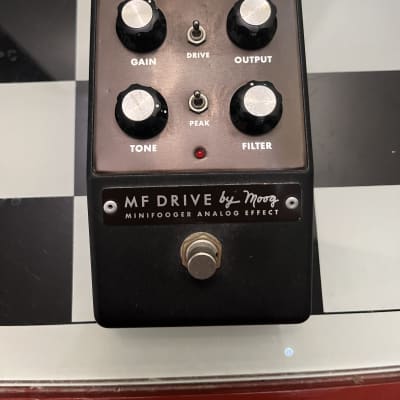

Minifooger MF Drive

The Minifooger MF Drive by Moog is a dynamic and highly reactive filter-based overdrive pedal that incorporates a Moog Ladder Filter, boutique FET amplifiers, and classic Operational Transconductance Amplifiers (OTAs) in its drive section. It offers a range of tones from creamy British overdrive to cranked American-style tube amp sounds, and even fuzz tones. The pedal features a 4-pole Moog Ladder filter, making it highly reactive to input gain and picking dynamics.

Here are the technical specifications for the Minifooger MF Drive:

- Signal Path: 100% Analog
- Bypass: True bypass
- Power: 9 VDC
- Drive: Down: +6.8 to +48 dB gain, Up: +16 to +57 dB gain
- Peak Level: +15 dB resonance peak at the filter cutoff frequency
- Tone Control: Low-pass -6 dB at 1 kHz (center), -6 dB scoop at 800 Hz (maximum); High-pass -6 dB at 1 kHz (-18 dB shelf)
- Filter: Ladder Filter: 2-pole 12 dB/octave 100 Hz to 17.5 kHz
- Expression Pedal: Controls Filter (maximum input level +5 VDC)
- Input Impedance: >1 MOhm
- Output Impedance: <500 ohms
- Current: 10 mA
- Enclosure: Cast aluminum
- Dimensions: 5.75 x 3.25 x 2.25" (14.4 x 8.3 x 5.8 cm)
- Weight: 18 oz (0.5 kg)

The Minifooger MF Drive is suitable for guitar and bass applications, offering versatility and expressive control over the drive and filter parameters. It also supports the use of an expression pedal for live filter sweeps and can be switched to a dirty fuzz wah mode with the Peak switch.
