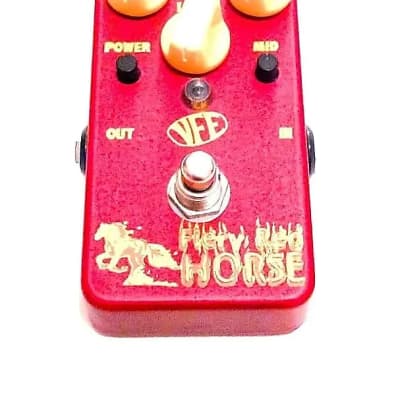

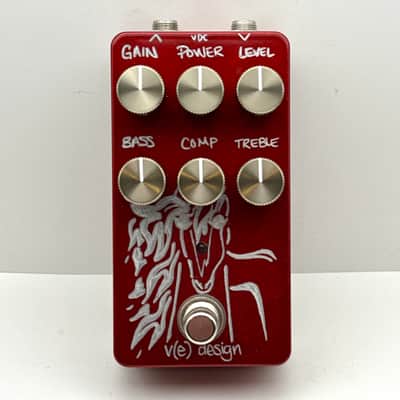

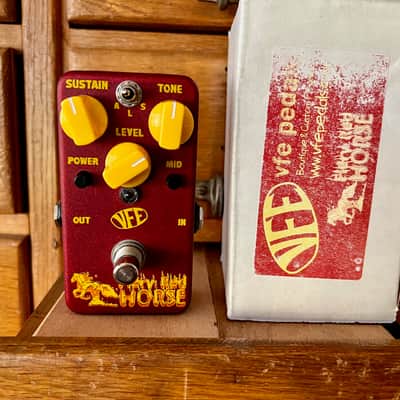

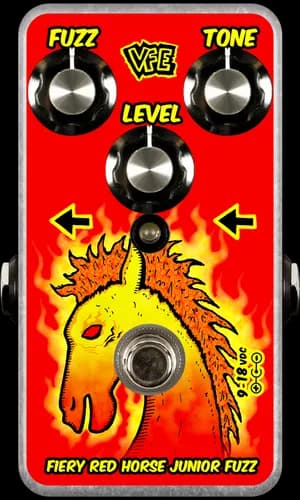

Fiery Red Horse

The Fiery Red Horse VFE is a versatile fuzz pedal designed to offer over-the- top saturation and sustain, as well as big, dynamic fuzzstortion tones. The pedal features a range of controls and functionalities, making it suitable for various use-cases. Here are the technical specifications and features:

- Power: The pedal can be powered with a standard 9V power supply, with the circuit being fed 3V up to 16V. When using a 15V power supply, the circuit is fed 3V up to 27V.
- Gain: The gain control sets the strength of the signal fed to the gain stages, affecting the distortion and volume.
- Level: This passive attenuator sets the output volume of the pedal.
- Compression (COMP): The variable HCC circuitry controls the compression and harmonic character of the fuzz. It allows for adjustments from a grittier, biting silicon fuzz to a warm, ultra-saturated germanium fuzz.
- Bass and Treble: The pedal features active Baxandall EQ controls for bass and treble, allowing users to boost or cut the respective frequencies.
- FX Type: Saturated Fuzz

Additionally, the pedal offers a power control to simulate a dying battery, as well as dual gain stages for enhanced versatility in tone. The dimensions of the pedal are 2.17” W x 2.025” H.

For detailed assembly and technical information, including schematics, Eagle files, Gerber files, and assembly sheets, the manufacturer provides a digital download of a ZIP file with all the documentation needed to build the Fiery Red Horse.
