Fooz

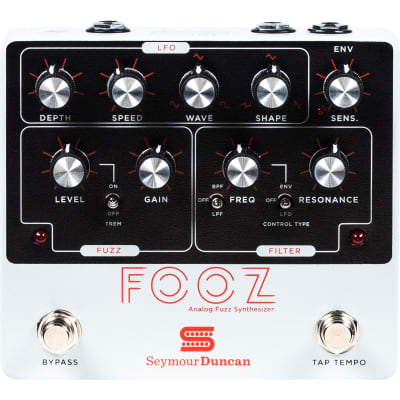

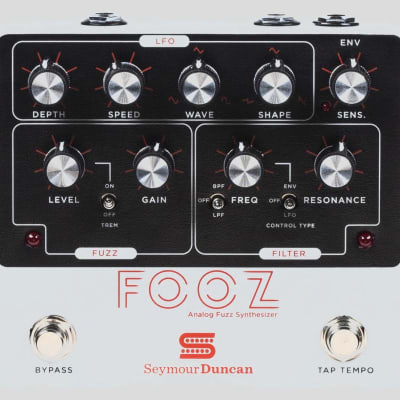

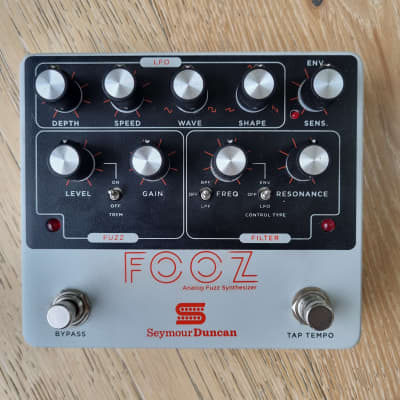

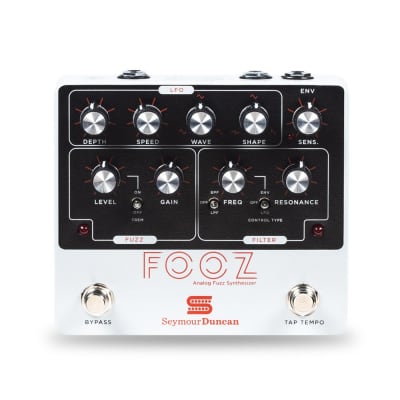

The Fooz by Seymour Duncan is an analog fuzz synthesizer pedal designed to bring the spirit of synth creativity to guitar. It utilizes a heavily saturated square-wave fuzz to transform the guitar into an 'oscillator', ready to be sculpted by other 'blocks', and it also functions as a standalone fuzz tone generator.

Key Technical Specifications:
- Input Impedance: 1M Ohms
- Output Impedance: 1K Ohms
- Gain Range: 4dB to 72dB, plus tremolo and filter gain changes
- Noise Referred to Input: <-118dBV, 400Hz to 20kHz
- Power: External 9V regulated DC adapter
- Dimensions: 143 x 127 x 57.2mm
- Weight: 21 oz

Features and Functionality:
- Analog fuzz synthesizer pedal for electric guitar
- Synth-like control layout with sections for fuzz, filter, LFO, and envelope
- Offers low pass and band pass filter modes with frequency cutoff and resonance controls
- Tremolo mode with various wave shapes for rhythmic effects
- Tap tempo switch for LFO synchronization
- Expression pedal jack for parameter control
- Deep tone tailoring possibilities with dip switches
- External 9V DC power supply

Use Cases:
- Guitarists seeking to explore synth-like creativity and tones
- Musicians looking to expand their sonic palette with unique fuzz and synth- inspired sounds

The Fooz pedal offers a wide range of tonal possibilities, making it suitable for creative guitarists and those interested in exploring analog synth- inspired effects.
