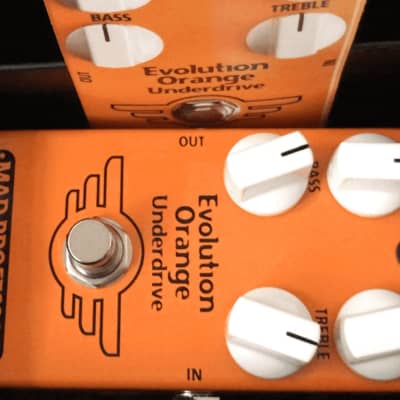

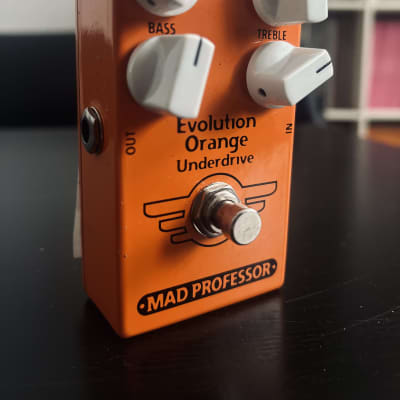

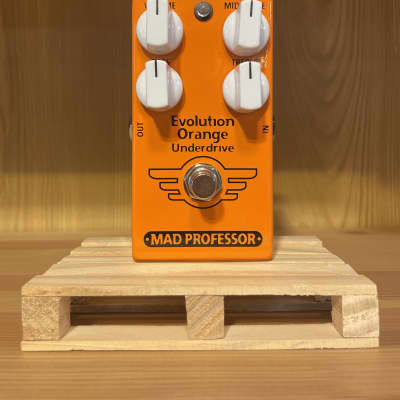

Evolution Orange Underdrive

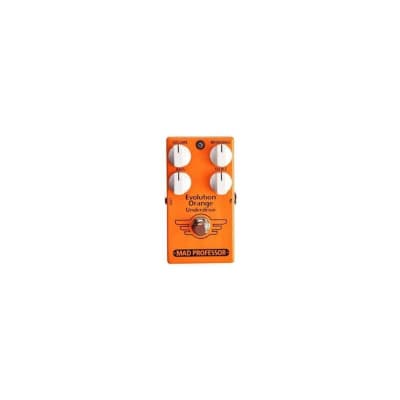

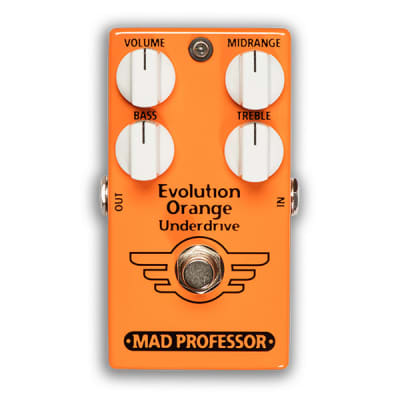

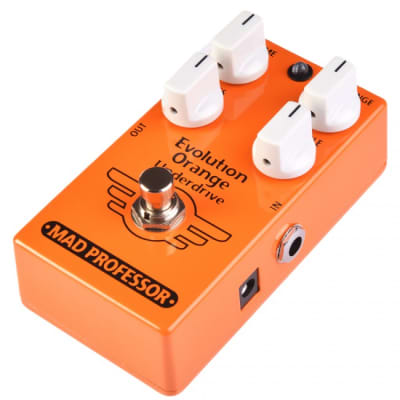

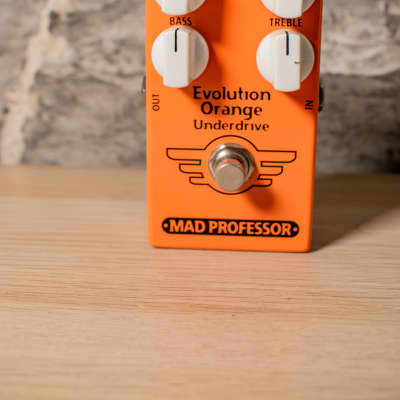

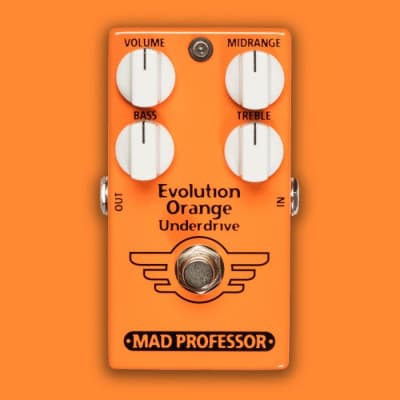

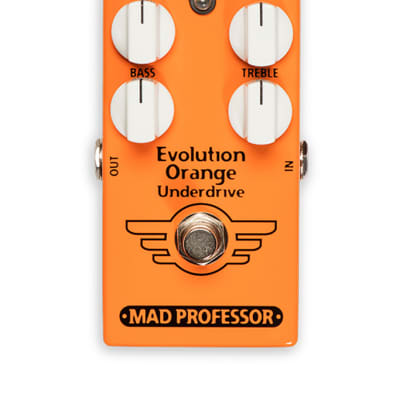

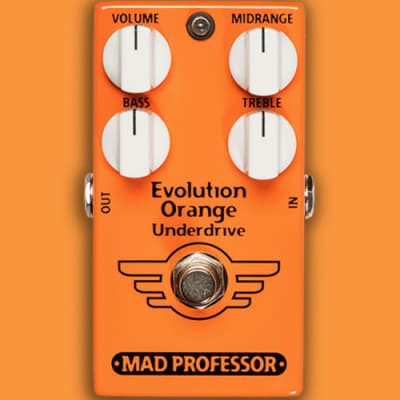

The Evolution Orange Underdrive by Mad Professor is a unique pedal offering a new approach to tone manipulation. It is designed to provide cleaner tones from overdriven tones, a concept referred to as underdriving. The pedal is particularly suitable for use with vintage single-channel amps that excel when pushed to overdrive.

Key Technical Specifications:
- Input Impedance: Approximately 500K
- Output Impedance: Approximately 5K
- Current Draw: 10 mA at 9V
- Voltage Supply Range: +8V to +18V DC

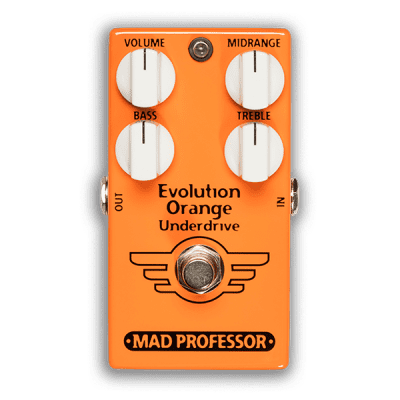

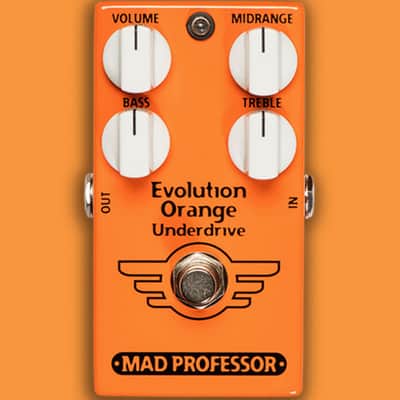

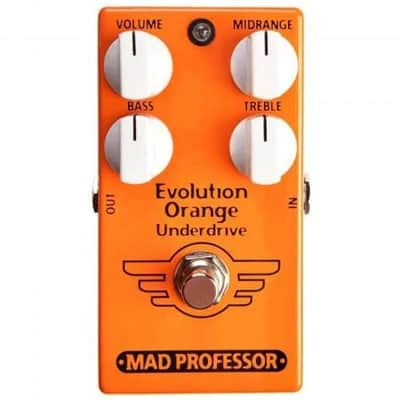

Controls:
- Midrange: ± 15 dB at 400Hz
- Treble: ± 15 dB at 7KHz
- Bass: ± 15 dB at 100Hz
- Volume: Sets the overall volume level when the pedal is engaged

Functionality:
The Evolution Orange Underdrive allows users to tailor their cleaner tone using the four control pots. By lowering the midrange, which is where the overdrive primarily resides, users can dampen the amplifier input with the Volume control and then adjust the Bass and Treble to customize the clean tone. Additionally, the pedal can be used to boost the mids by setting the Midrange and Volume up.

Use Cases:
This pedal is ideal for guitarists seeking to maintain clarity and sparkle in their tone while playing predominantly dirty. It can serve as a valuable companion to vintage amps being run hot, allowing the amp to remain in its sweet spot while the Evolution Orange performs cleanup duty.

For more detailed information, the original product page or the manual can be referenced for comprehensive specifications and usage guidelines.
