Dragon

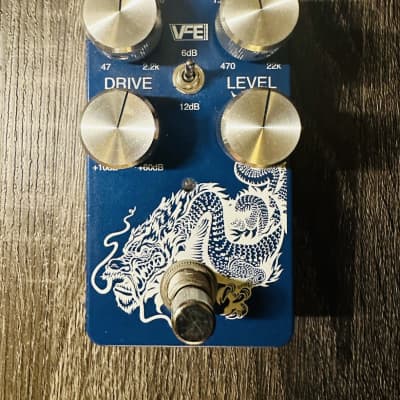

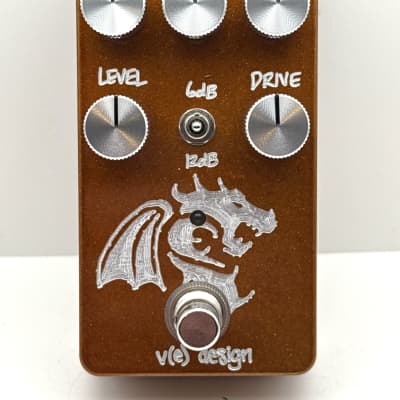

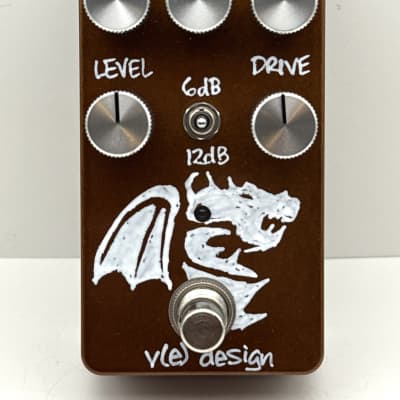

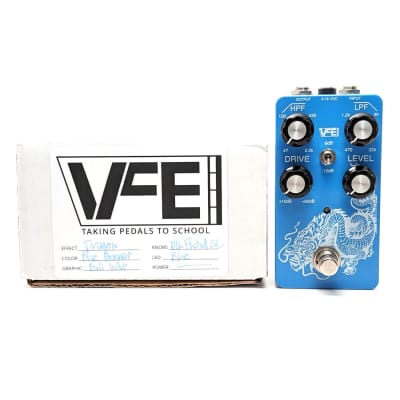

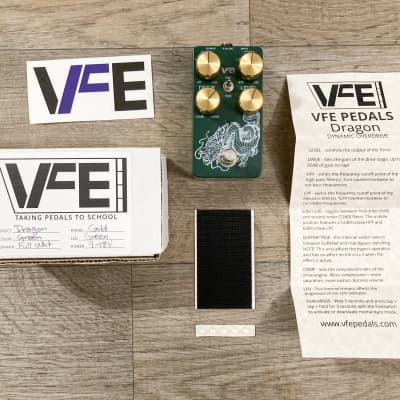

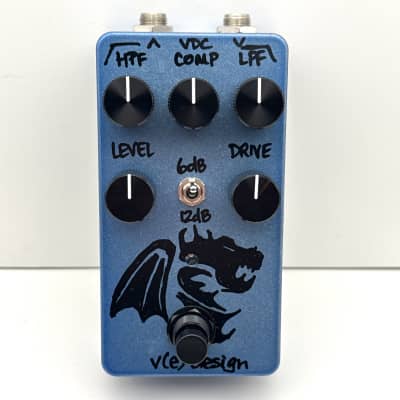

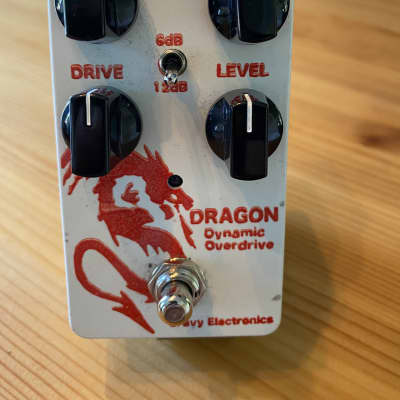

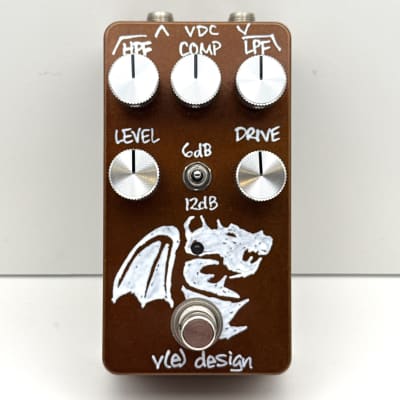

The Dragon by VFE is a dynamic overdrive pedal designed to provide precise control over the pre-gain bass cut (HPF) and post-gain treble cut (LPF). This allows users to tighten or fatten up the low end, smooth out the top end, or add sparkle to their tone. The pedal offers a range of functionalities and features, including:

- True bypass with a buffered bypass option via an internal switch
- A massive amount of boost to push any amp
- Internal trimpot to adjust the compression of the gain stage
- Cut filters that can be set to 6dB or 12dB for more extreme EQ cuts

Technical Specifications:
- Enclosure dimensions: 2.4" W x 4.4" L x 1.4" H (60 x 111 x 35mm)
- With knobs & jacks: 2.4" W x 4.6" L x 2.2" H (60 x 117 x 56mm)
- Power: Industry-standard 2.1mm, negative-tip DC power supply
- Standard: accepts 9V up to 18V (recommended)
- Charge pump mod: accepts 9V (recommended) up to 12V
- Input impedance: 1.8M-ohm
- Current draw:
- Standard: ~15mA off, ~45mA on @ 9V, ~25mA off, ~55mA on @ 18V
- Charge pump mod: ~30mA off, ~60mA on

The Dragon by VFE offers musicians the ability to tailor their overdrive tone to their exact preferences, making it a versatile and powerful tool for guitarists and other musicians.
