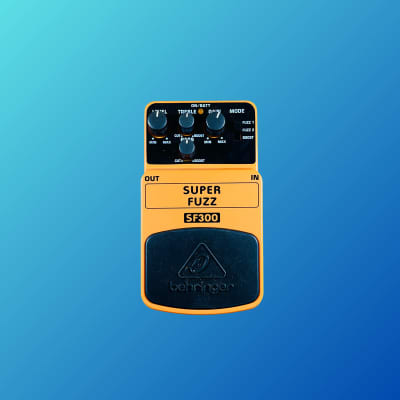

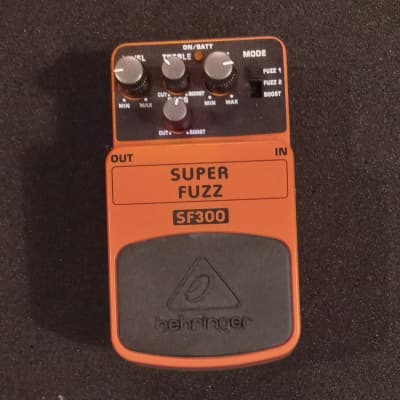

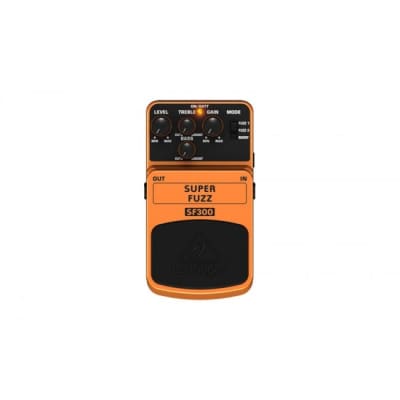

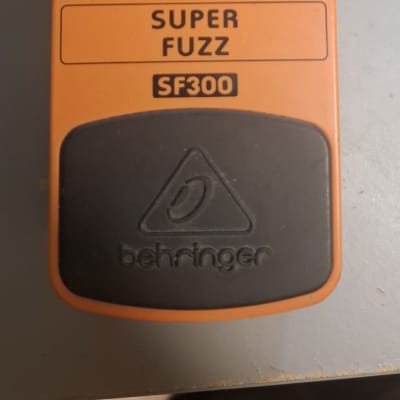

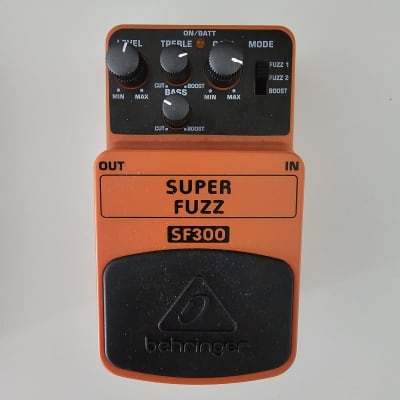

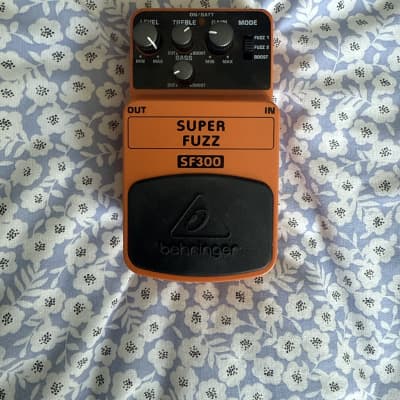

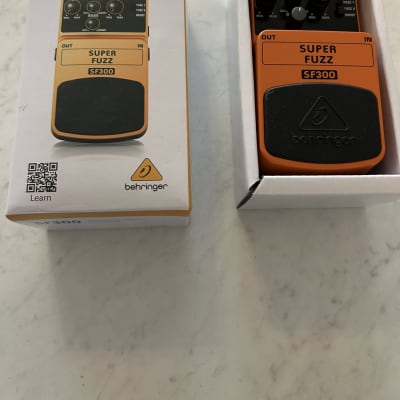

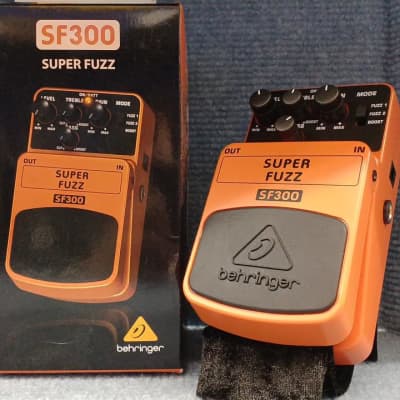

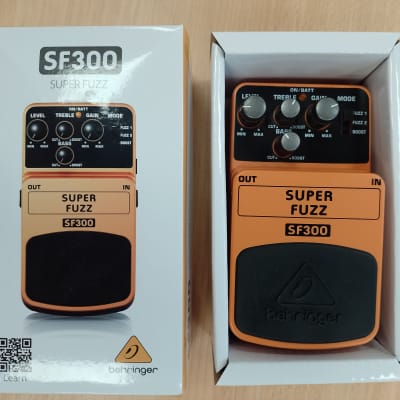

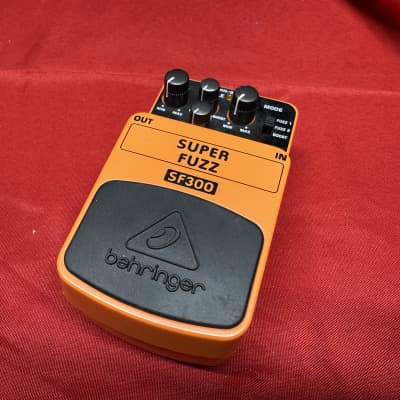

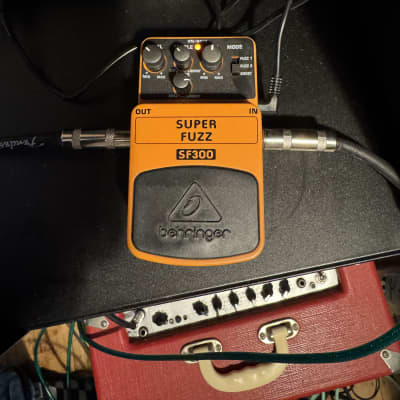

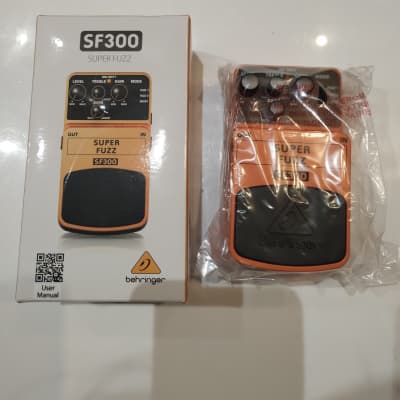

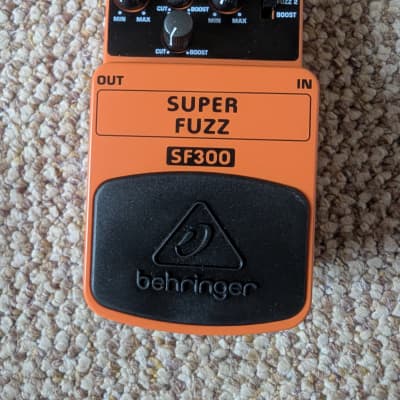

SF300 Super Fuzz

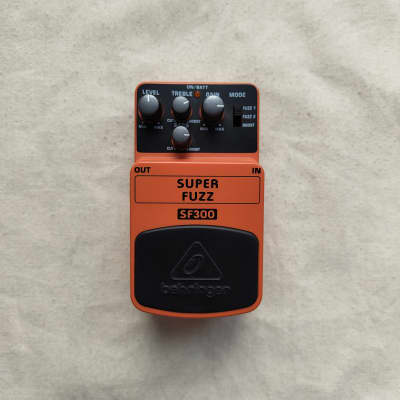

The Behringer SF300 Super Fuzz is a 3-mode fuzz distortion effects pedal designed for electric guitars, recreating a variety of famous fuzz tones from the '60s and '70s. The pedal features the following controls:

1. LEVEL: Adjusts the output level.
2. TREBLE: Allows boosting/cutting of the high-frequency range.
3. BASS: Allows boosting/cutting of the low-frequency range.
4. GAIN: Adjusts the gain for more distorted sounds.
5. MODE switch: Selects between 3 effect modes:
- FUZZ 1: Basic fuzz sound with emphasis on the midrange.
- FUZZ 2: Full-bodied fuzz sound with scooped mids and sharp harmonics.
- BOOST: The Level control is inactive, and the Gain control adjusts the boost.

Additional features include an ON/BATT LED that serves as a battery level indicator, a footswitch for activating/deactivating the effect, 1/4" TS IN and OUT connectors for instrument and amp connections, and a DC IN connection for a 9V power supply (not included). The pedal can also be powered by a 9V battery.

Technical Specifications:
- Input Impedance: 500 kΩ
- Output Impedance: 1 kΩ

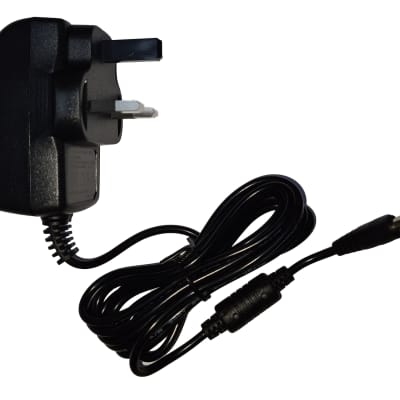

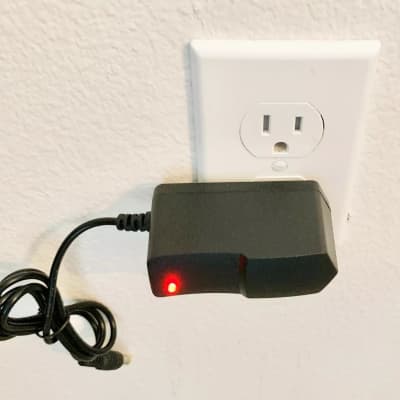

- Power Supply: 9V DC, 100 mA regulated
- Power Connector: 2 mm DC jack, negative center
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D), or 54 x 70 x 123 mm
- Weight: Approximately 0.73 lbs / 0.33 kg
