Meat

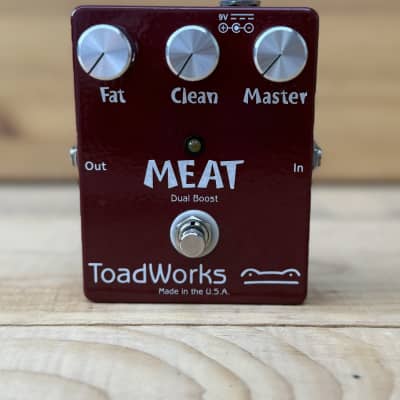

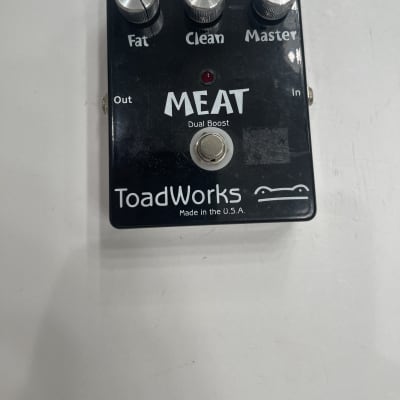

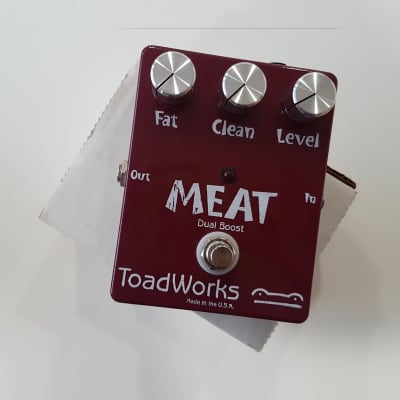

The Meat by ToadWorks is a dual boost effect pedal designed for maximum versatility with minimum tweakage. It has been tested with a wide range of guitars and amplifiers, providing a fat, warm boost, a crisp, clear boost, or any combination of the two. The pedal features independent Fat and Clean controls, allowing users to quickly dial in the perfect EQ for any setting. The Fat and Clean signal paths are in parallel, and changes to either control may require an overall level adjustment via the Master control.

Technical Specifications:
- Fat Knob: Controls the amount of "fattened" signal level being returned to the summing node. The Fat signal EQ changes slightly across the full sweep of the control.
- Clean Knob: Controls the amount of "clean" (linear frequency response) signal level being returned to the summing node. The Clean signal EQ remains the same across the full sweep of the control.
- Master Knob: Controls the overall output volume of the pedal.
- Input/Output Jacks: Designed for use with 1/4" phone plugs only.
- Switch: Used to turn the effect on and off. The pedal is wired for "True Bypass," meaning that when the switch is in the "off" position, the original signal is routed around the effect circuit, resulting in no signal loss or coloration.
- Power: Uses a standard 9V alkaline battery or a 2.1mm barrel jack for use with a tip-negative 9 Volt power adapter. It is important to use only high- quality power adapters to avoid damage to the pedal components.

Warranty:
The pedal comes with a two-year warranty from the date of purchase, guaranteeing it to be free of defects in workmanship and operation.

Manufacturer Contact Information:
ToadWorks USA
720 South Cannon St. Ste D
Spokane, WA 99204 USA
Phone: (415) 462-5539
Fax: (708) 570-8303
Website: ToadWorksUSA.com
