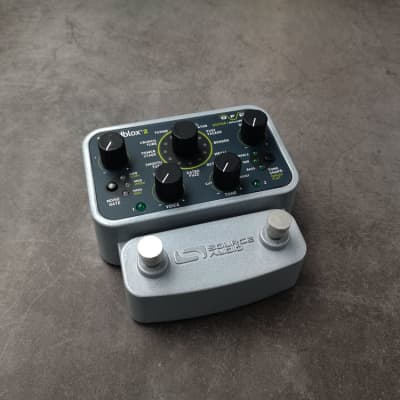

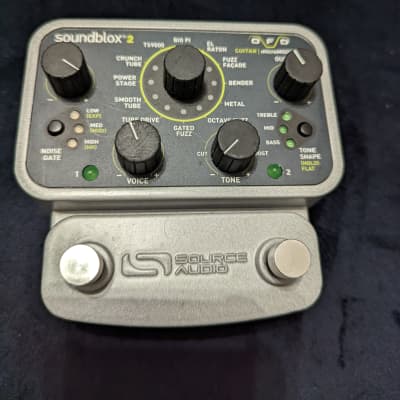

Soundblox 2 OFD Guitar microModeler by Source Audio

The Soundblox 2 OFD Guitar microModeler by Source Audio is a versatile effects pedal designed for electric guitar players, offering 12 different overdrive, fuzz, and distortion tones in a compact enclosure. It features a rugged, cast- aluminum housing and can be configured for analog buffered or relay-based true bypass. The pedal allows for easy configuration of user presets, selectable via two footswitches, and includes a flexible three-band tone control.

Key Specifications:
- Maximum Input Level: 2.0 Vrms (+6 dBV)
- Impedance: Input - 1 MOhm, Output - 1 kOhm
- Dynamic Range: 115 dB audio path
- DSP: 56-bit digital data path
- AD/DA Conversion: 24-bit
- Bypass: Buffered or relay-based true bypass
- Power: 140 mA at 9 VDC (max 180 mA with Hot Hand Wireless Adapter)
- Dimensions: 4.5 x 4.5 x 2.3" / 11.4 x 11.4 x 5.7 cm
- Weight: 1.0 lb / 0.5 kg

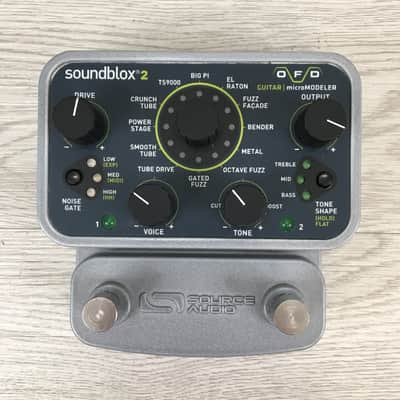

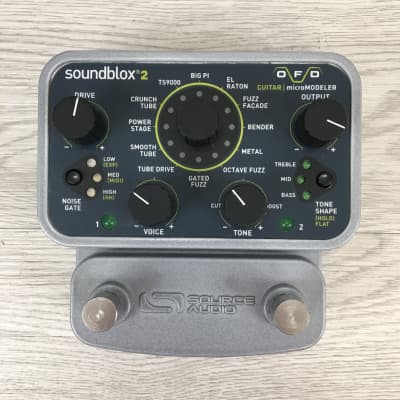

Controls:
- EFFECT Knob: Selects the type of distortion
- DRIVE Knob: Adjusts the amount of distortion applied to the signal
- VOICE Knob: Gradual timbre adjustment affecting the overall character of each distortion
- TONE Knob: Cuts or boosts the selected TONE SHAPE (treble, mid, and bass)
- OUTPUT Knob: Adjusts the output level of the effect
- NOISE GATE Button: Selects the noise gate threshold level and External Control mode
- TONE SHAPE Button: Selects which frequency range will be adjusted by the TONE knob
- FOOTSWITCHES (x2): Enable/disable presets and save edited presets

The pedal also features a 3.5 mm Multi-Function input and output, allowing for preset morphing or knob-by-knob expression control via Source Audio’s Hot Hand Motion Sensor Ring, the Source Audio Dual Expression Pedal, or MIDI. Additionally, it offers compatibility with Hot Hand Motion Sensors for unique parameter control.

The Soundblox 2 OFD Guitar microModeler provides a diverse sound palette with accurate modeling of classic overdrive, fuzz, and distortion tones, making it a valuable tool for guitarists seeking a wide range of tonal possibilities in a compact and robust package.
