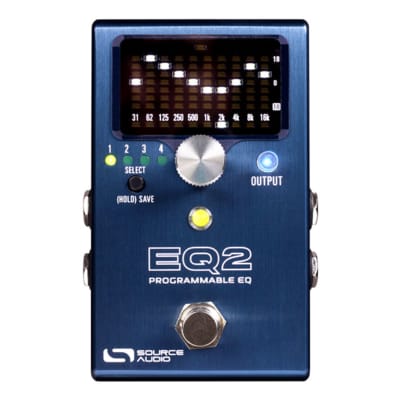

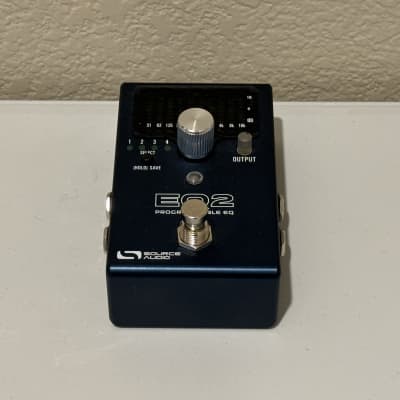

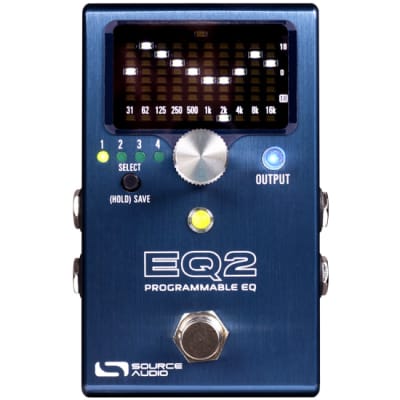

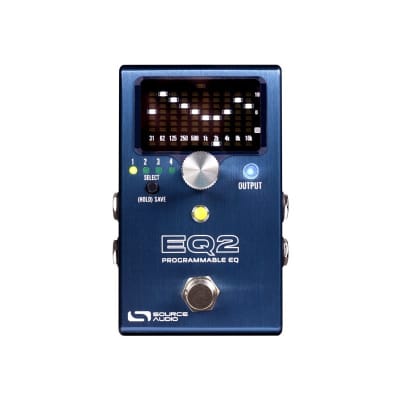

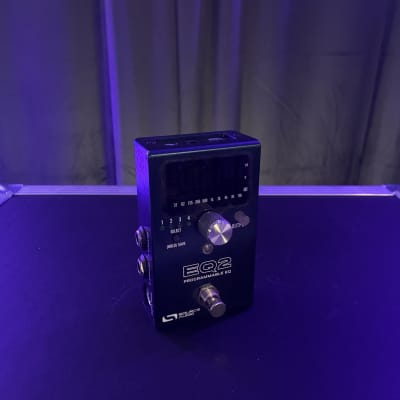

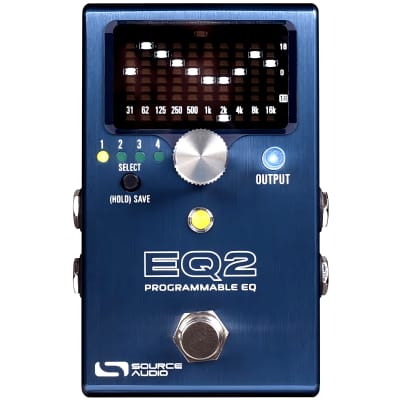

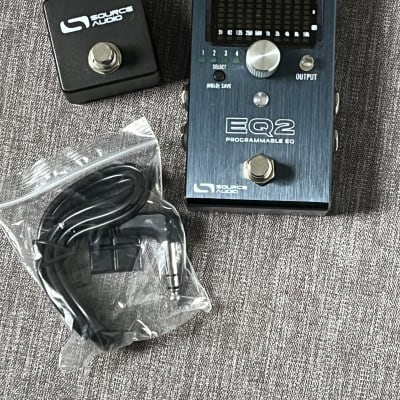

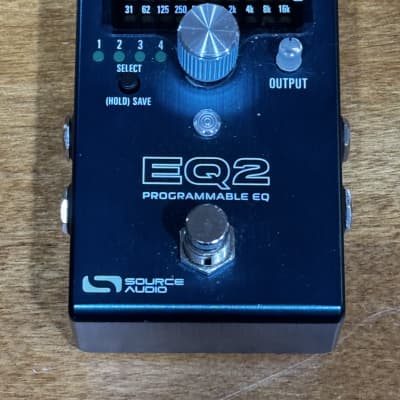

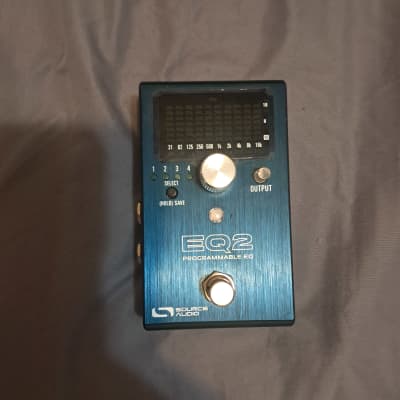

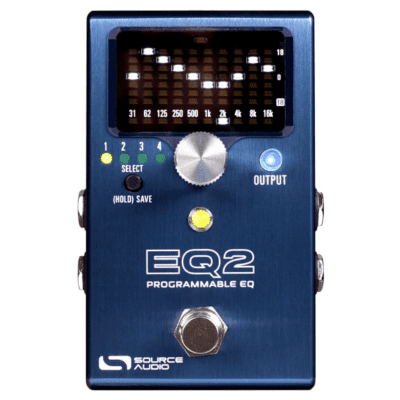

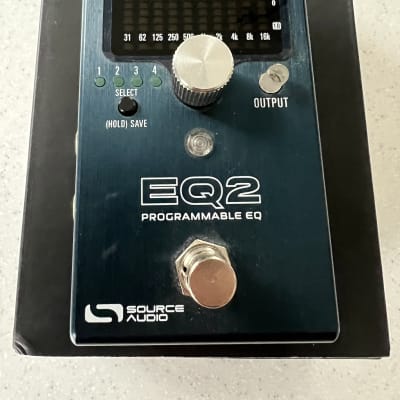

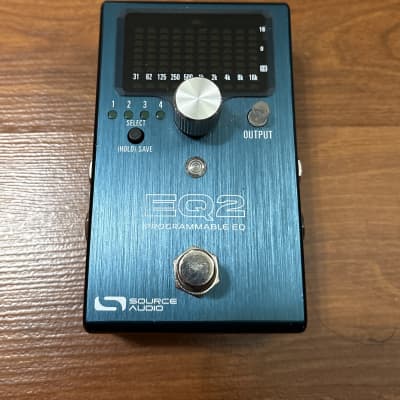

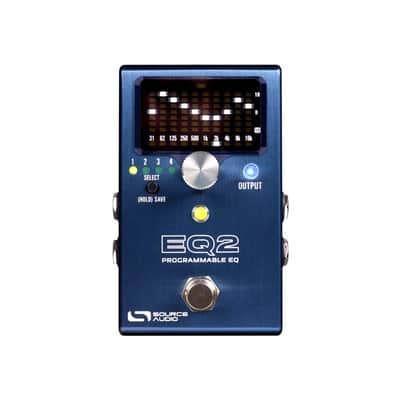

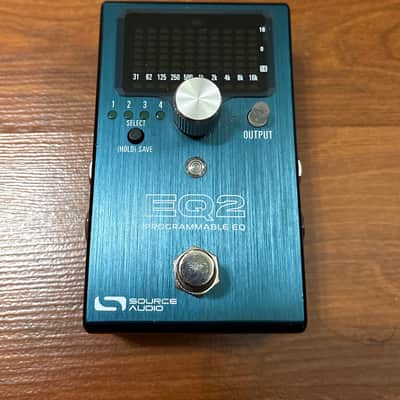

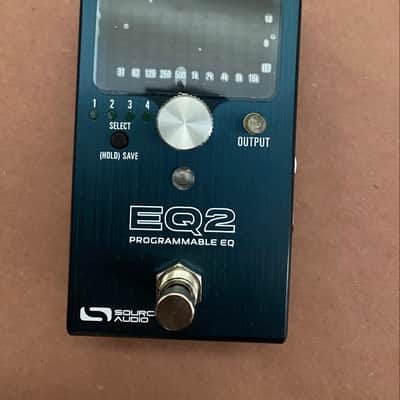

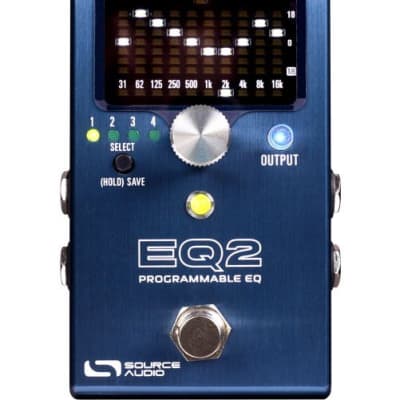

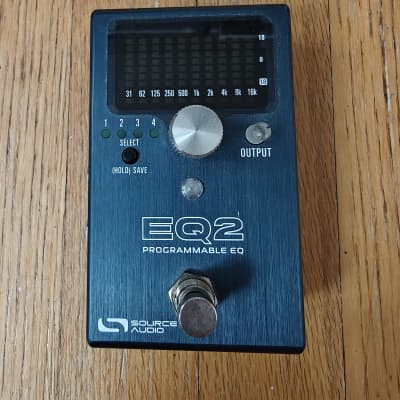

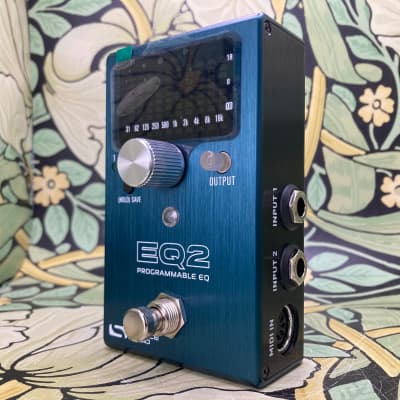

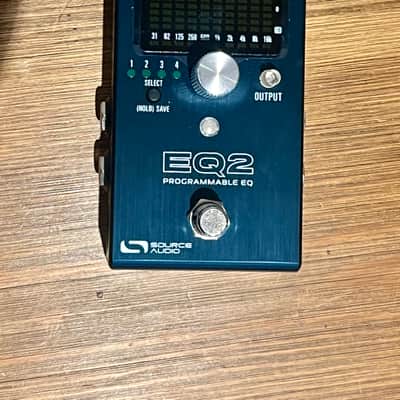

Programmable EQ

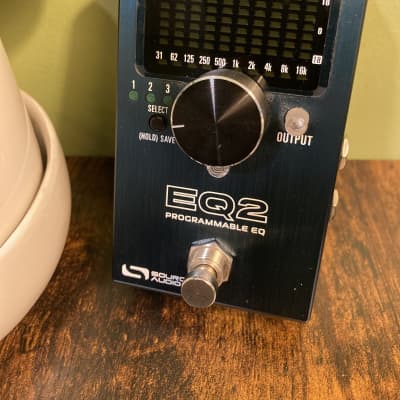

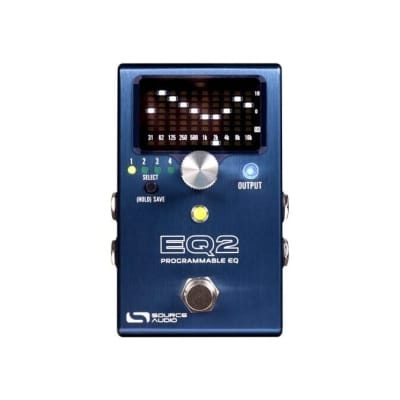

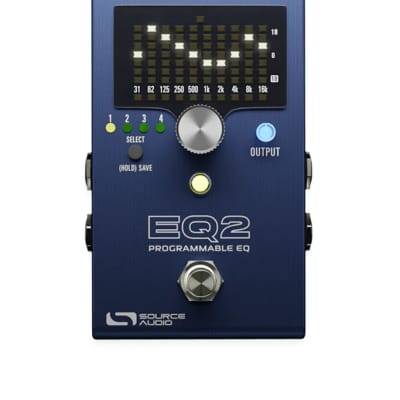

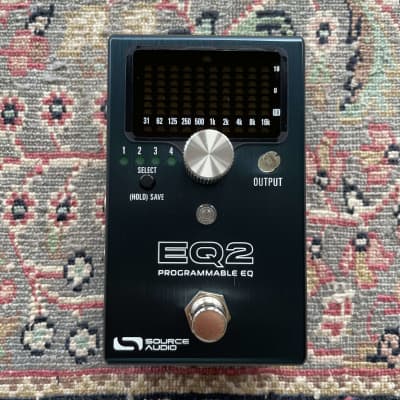

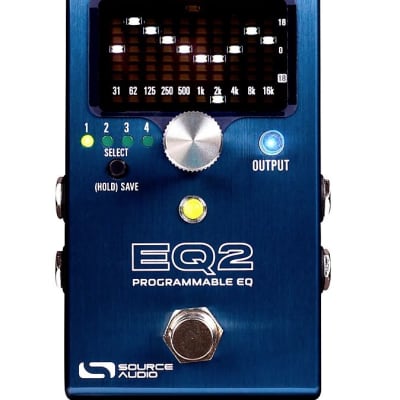

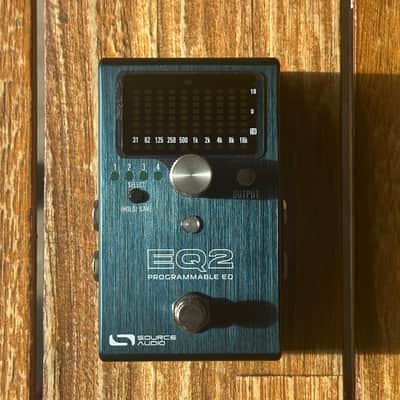

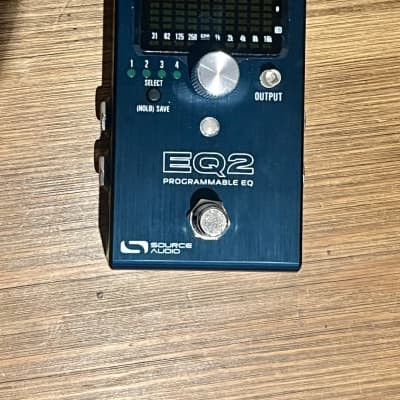

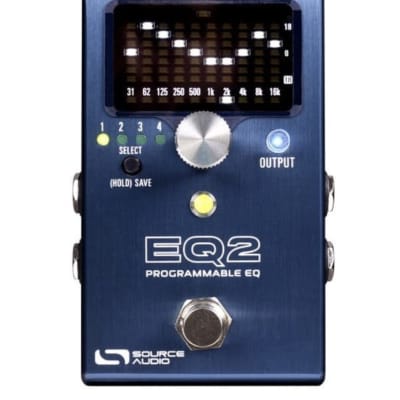

The Source Audio Programmable EQ is a MIDI-controllable, modern upgrade to traditional equalizer pedals. It offers plus or minus 18dB of range over seven frequency bands, with an additional frequency band at 62Hz accessible via the Octave Extend function. The pedal also provides a substantial clean boost of up to 12dB.

Key Features and Specifications:
- +/- 18dB range over seven frequency bands
- Four independent programmable user presets easily recalled via the footswitch
- Octave Extend Function: optimizes the EQ for bass with an additional frequency band at 62Hz
- Small footprint: compact, rugged, cast aluminum housing
- 12dB of clean boost
- Auto-scrolling function: automatically scrolls through all four presets to create unique effects
- Universal Bypass: Choose between Hardwire “True” Bypass or Buffered Bypass
- MIDI input: Recall presets, control parameters, engage/bypass remotely via MIDI
- State-of-the-art DSP: proprietary 56-bit Digital Signal Processor (SA601) and crystal-clear 24-bit converters
- Dimensions: 4.5 in/11.4cm (L) x 2.5 in/6.4cm (W) x 2 in/5.1cm (H)
- Power: Runs on a 9V battery (included) or power supply (not included - requires 9V DC supply with at least 100mA output)
- Output impedance: 1k ohms, Input impedance: 1 megaohm, Max output level: 2.2V RMS

The Source Audio Programmable EQ is a versatile tool suitable for various instruments, playing styles, and genres, making it an essential addition to any live rig. It has been used by renowned artists and offers advanced functionality for precise tone sculpting.
