PS-008

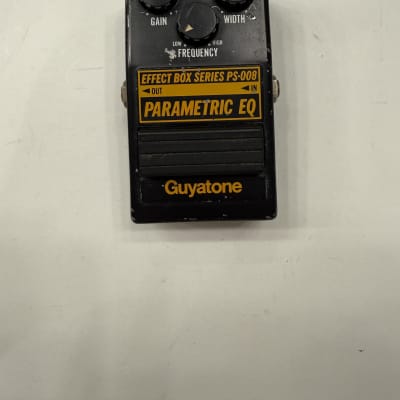

The Guyatone PS-008 Parametric Equalizer is a vintage guitar effect pedal with the following technical specifications:

- Input Impedance: 330 K ohm
- Maximum Input Level: 0dB
- Output Impedance: 10 K ohm
- Maximum Output Level: +6 dB
- Signal-to-Noise Ratio: -90dB
- Frequency Characteristics: 20-20,000Hz +/- 1dB
- Gain: +/- 18dB
- Frequency Variable Range: 70-5,000Hz
- Band Width: 7-1 octave
- Power: Battery DC 9 Volt / AC adaptor
- Battery Drain: 6mA
- Switching System: "Noiseless" Solid state type
- Overall Size: 68 (W) x 53 (H) x 120 (D) mm
- Weight: 370g

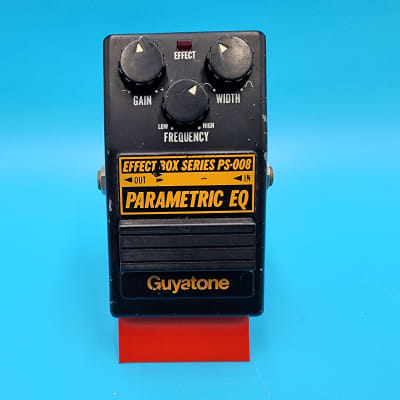

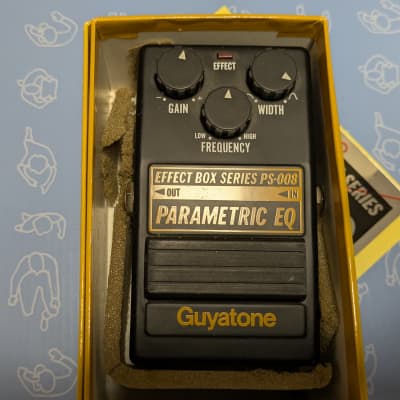

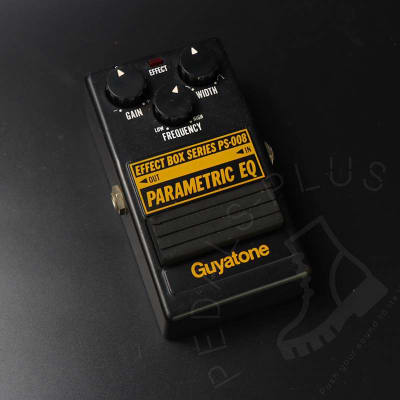

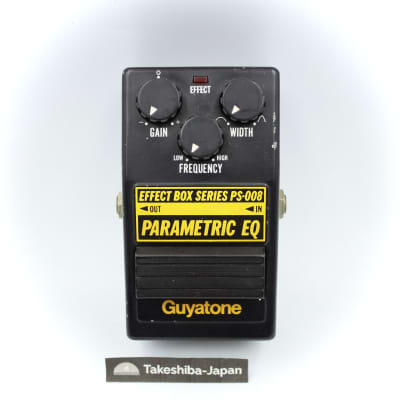

The pedal features controls for Gain, Width, and Frequency, allowing users to adjust the emphasis or attenuation of specific frequency bands. It is designed to provide precise tone sculpting for guitar and bass instruments, making it suitable for a wide range of musical styles and genres.
