GE601

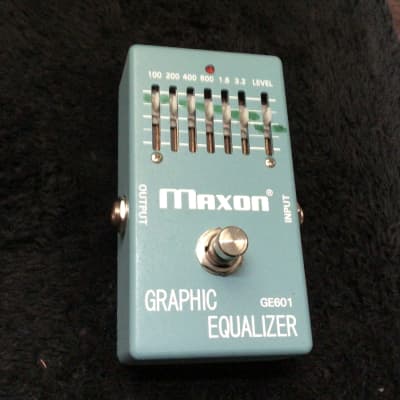

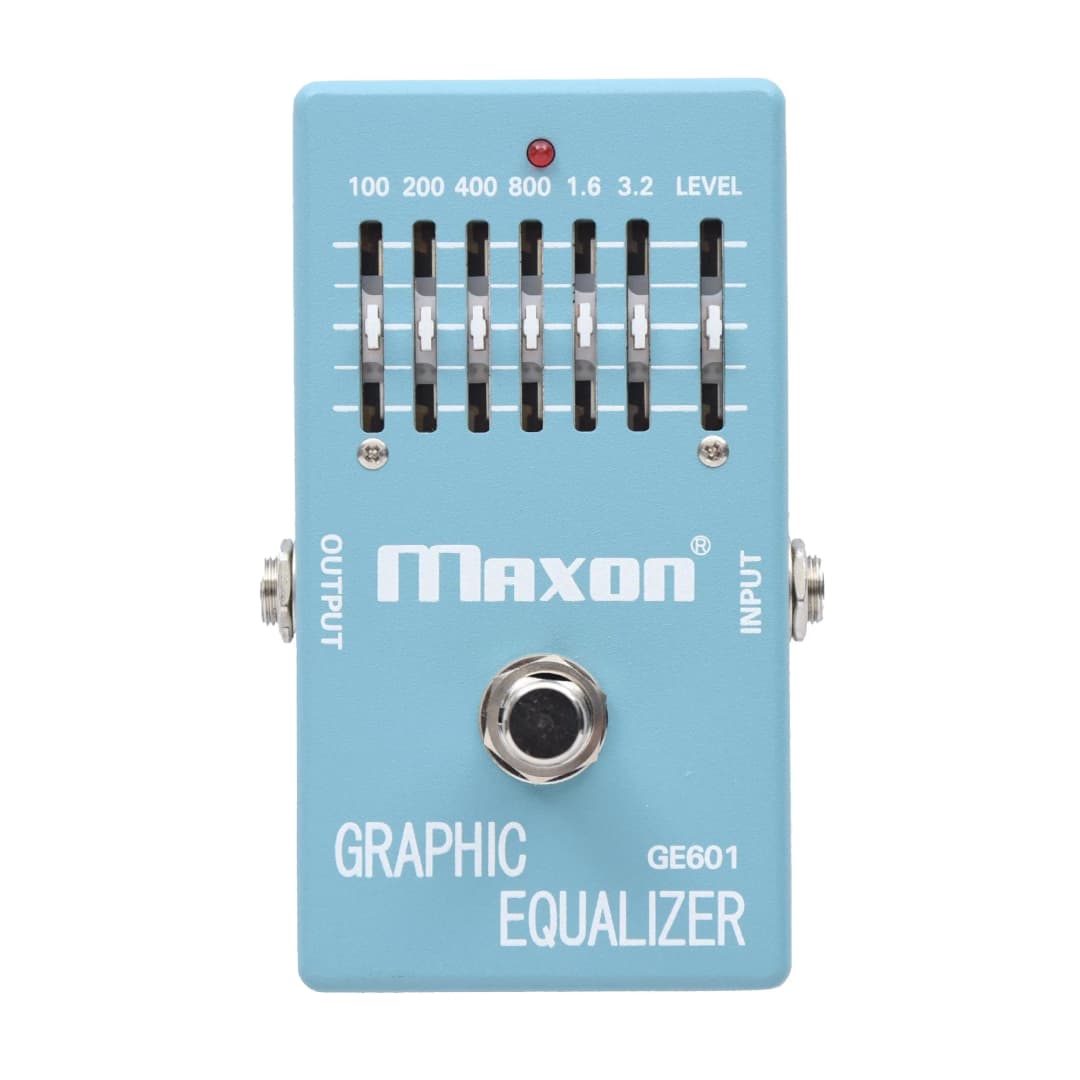

The Maxon GE601 Graphic Equalizer is a versatile tool designed for precise sound control across a wide range of instruments. It covers six carefully selected frequency bands over a five-octave range, offering 12 dB of boost/cut per band. The pedal can be used for various applications, including sound filtering, feedback elimination, and level boosting.

Technical Specifications:
- Input Impedance: 500K Ohms
- Input Jack: 1/4 inch standard phone jack
- Output Impedance: 10K Ohms
- Output Jack: 1/4 inch standard phone jack
- Output: 1
- Controls: Cut/Boost (6), Level (1)
- Switch: Normal/Effect
- Max Input: 4 dBu
- Noise (IHF-A): -110 dBu
- Max Amplitude: 12 dB
- Frequency Range: 100 Hz - 3.2 KHz
- Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
- Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
- Current Consumption: 11 mA (9V) / 12 mA (10 V)
- AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +
- Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
- Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
- Weight: 240 g

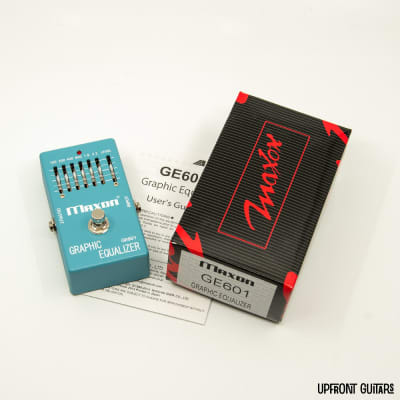

- Accessories: 9V Manganese dry cell battery (S-006P) x 1, Non-skid pad x 1, Warranty Card x 1, User's Manual x 1

The GE601 features buffered, JFET bypass switching with a low impedance output, allowing it to drive long cable lengths or other effect units without signal loss. It also incorporates a low-impedance input buffer and splits its signal into 6 parallel EQ bands, each powered by its own Op Amp (JRC4558).

The pedal's wide frequency range and versatile controls make it suitable for use with a variety of instruments such as guitars, basses, and keyboards. It offers precise sound shaping capabilities and can be used to create a range of tonal effects, from pickup simulation to clean boosting and wah-like tones.
