Venue DI

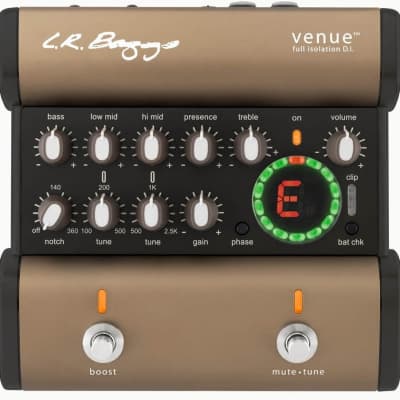

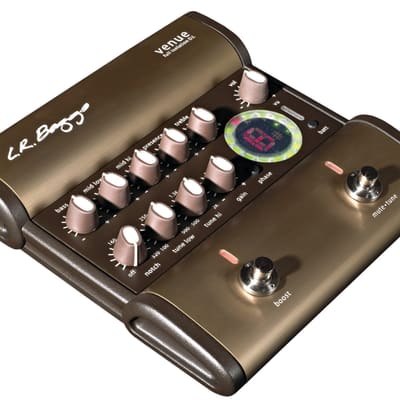

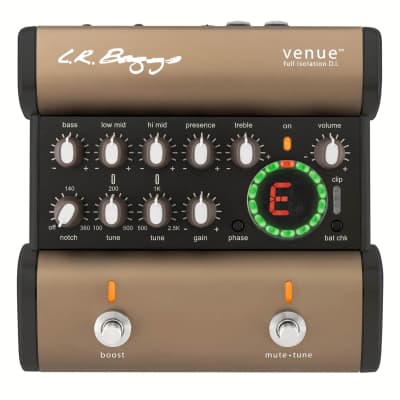

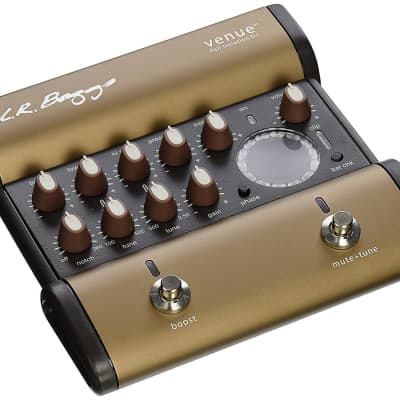

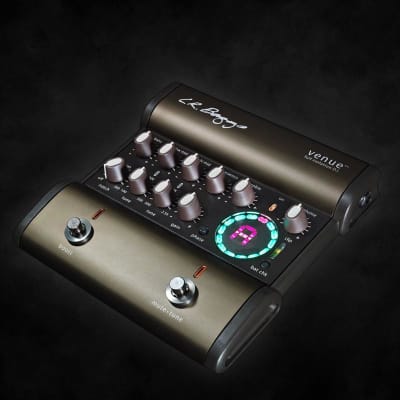

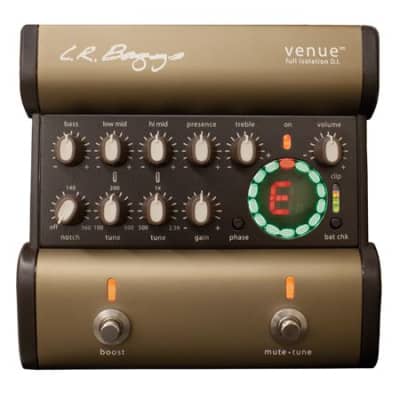

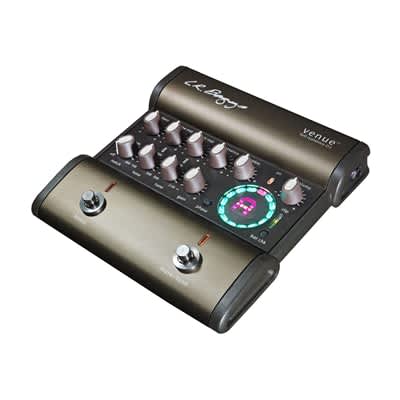

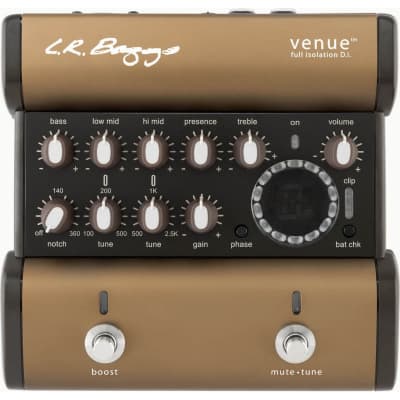

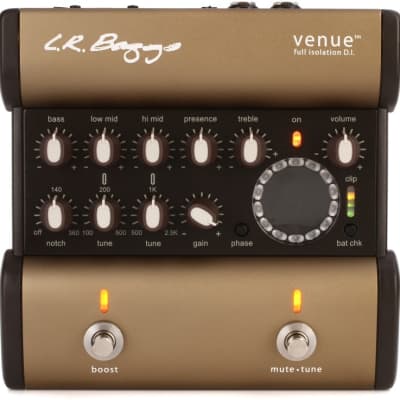

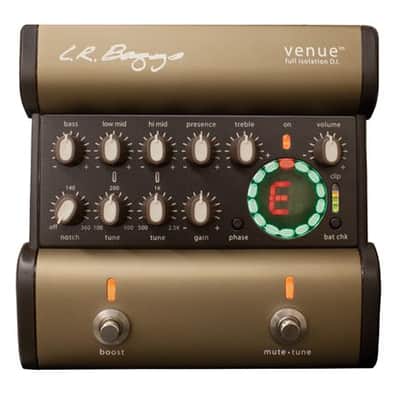

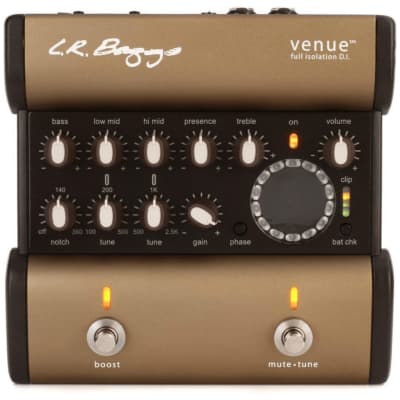

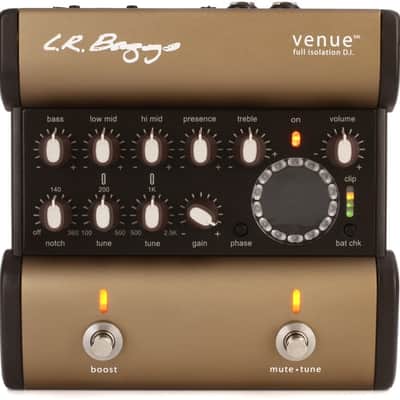

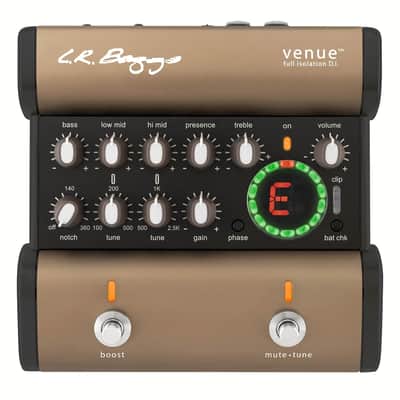

The LR Baggs Venue DI is an acoustic guitar preamp that offers a comprehensive set of features for live performances and studio recordings. It combines a full-isolation DI output, 5-band EQ, variable clean boost, and chromatic tuner in a single pedal. The technical specifications of the LR Baggs Venue DI are as follows:

1. Input Impedance: 10 megohms
2. Preamp Gain: -12dB to +26dB
3. Input Level: -25dBv to +1.8dBv (.053Vrms to 1.23Vrms)
4. EQ:
- Notch: -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave
- Bass: +/- 12dB @ 90Hz
- Lo Mid: +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz
- Hi Mid: +/- 12dB @ 1kHz, sweepable from 500Hz to 2.5kHz
- Presence: +/- 12dB @ 3kHz
- Treble: +/- 12dB @ 10kHz

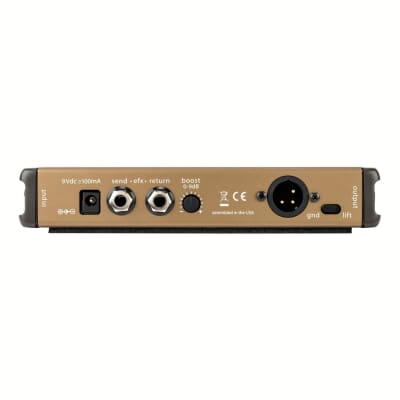

5. Effects Loops:
- Send Level: 0 dBv (0.707Vrms)
- Output Impedance: 600 ohms
- Return Level: 0dBv (0.707Vrms) Maximum before clipping
- Input Impedance: 80 Kohms
6. D.I. Output:
- Output level: -1dBv (0.88Vrms) Balanced
- Output impedance: 600 ohms (Transformer coupled)
7. Line Out:
- Output level: -1dBv (0.88Vrms) Un-balanced
- Output impedance: 200 ohms
8. Power:
- DC Power Consumption: 0.65W Max @ 9V
- DC Current Draw: 12mA (without tuner), 66mA (with tuner)
- Voltage Range: 7.5VDC Min – 12VDC Max
- Power Supply: 9VDC with 100mA (or 1Watt) minimum
- Avg. Battery Life: 40 hrs. (*depends on tuner usage)
- Signal to Noise: 90dB, unweighted
9. Physical Characteristics:
- Weight: 2.2 lbs
- Dimensions: 7.625” Width x 7.5” Depth x 1.5” Height

The LR Baggs Venue DI is designed to provide studio-quality sound for live performances and offers extensive control over the acoustic guitar's tone and feedback. It also includes a phase inversion feature, battery status gauge, and a series FX loop. The pedal can be powered by a 9V battery or a DC adapter.
