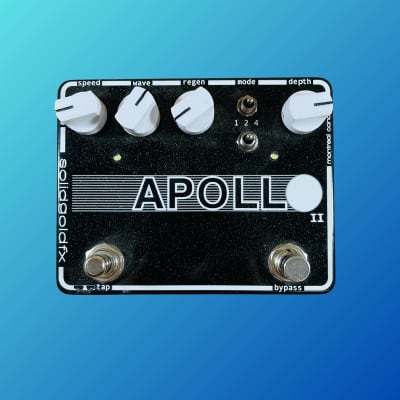

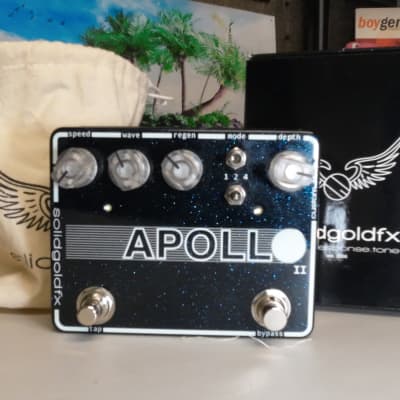

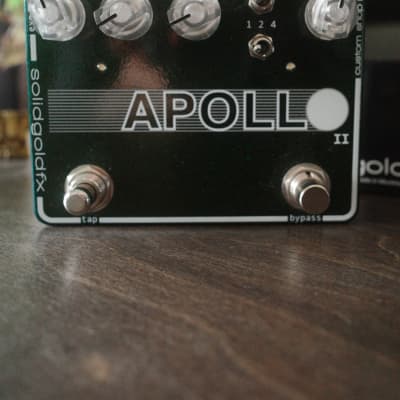

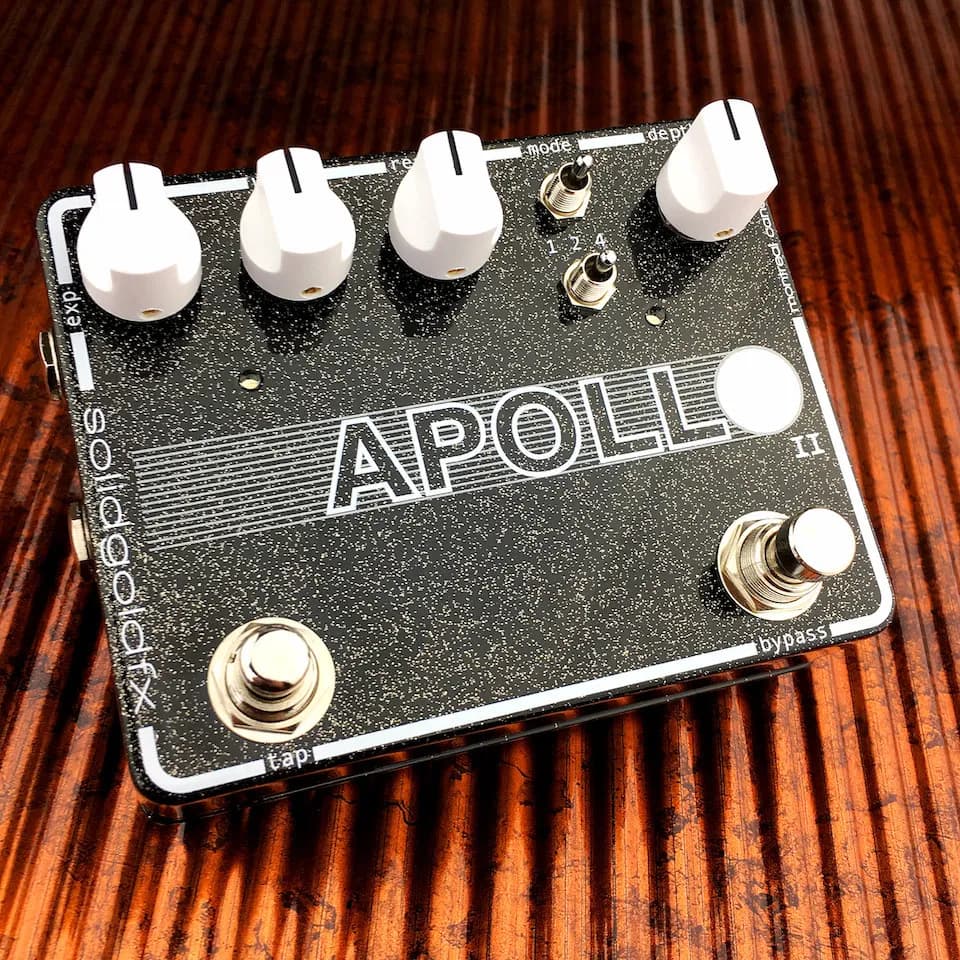

Apollo II

The SolidGoldFX Apollo II is a rich, whirling 4-stage analog phaser pedal with an exclusive microprocessor-controlled tap tempo. It combines a lush, all- analog 4-stage phaser circuit with a tap tempo microprocessor, offering a significant update to the previous generation Apollo. The pedal features a variety of distinct waveforms accessible via an 11-position detent control, which can be used in conjunction with three different rhythmic patterns, providing a vast array of unique phasing options. The waveforms include conventional sine and triangle-based shapes, step phasers, combined settings, randomizer, and manual phase control.

Specifications:
- Current Draw: Approx. 30mA
- 9V DC Input: This pedal uses a negative ground, 9V DC power supply. Battery operation is not possible.
- Dimensions: 4.67" x 3.68" x 1.18" (119mm x 94mm x 30mm)

Features:
- Depth: Controls the width of the phaser effect. The depth knob has no effect when the Wave selector is set to Manual mode.
- EXP (Expression Pedal Input): Allows connection of an expression pedal to replace the Speed control for on-the-fly adjustment or manual control.
- Mode: Toggle switch for selecting between 3 different phaser modes allowing for patterns and rhythmic accents.
- Regen: Controls the amount of regeneration (feedback) in the phaser effect.
- Wave: 11-position knob for selecting different waveforms that alter the phase sweep.
- 1-2-4 Switch: Sets the tempo range from slow to fast in standard speed mode. In tap mode, this switch multiplies the tapped tempo by 1, 2, or 4.
- Speed: Sets the rate of the phaser effect.

The Apollo II also features a Bypass Switch for engaging or bypassing the effect, and it is true bypass.
