PT999

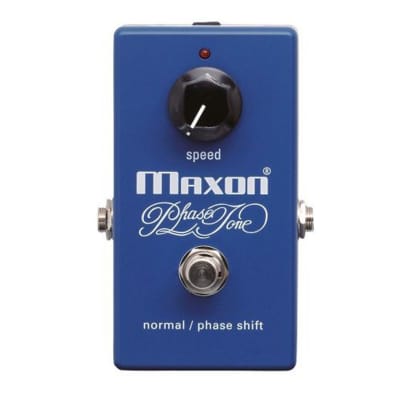

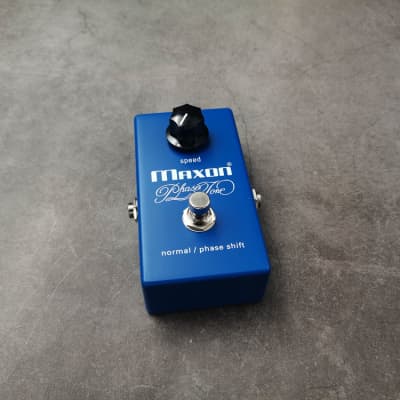

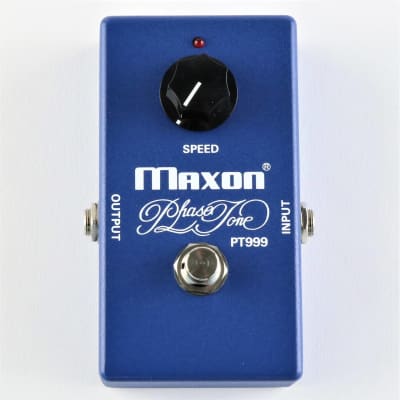

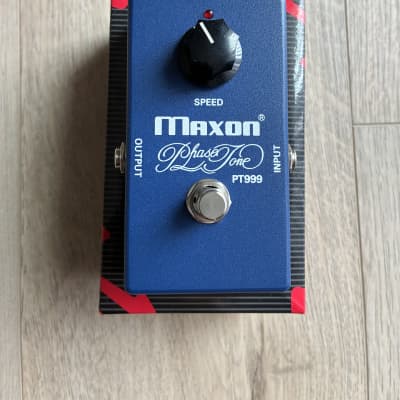

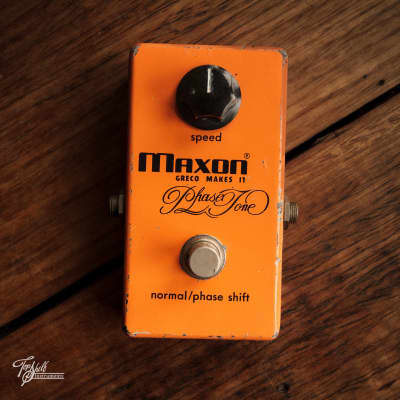

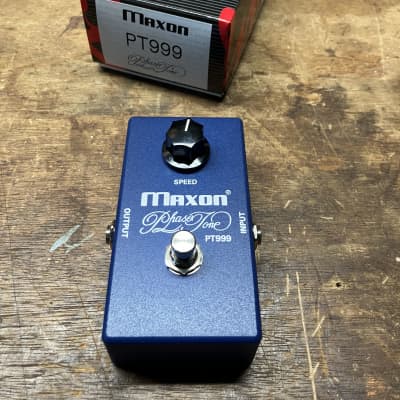

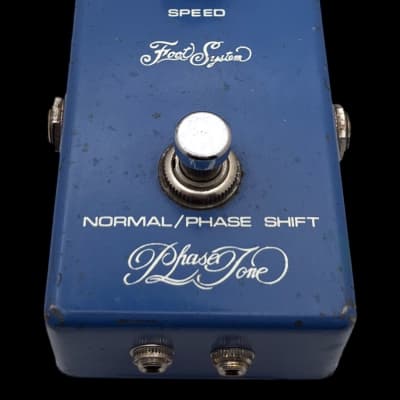

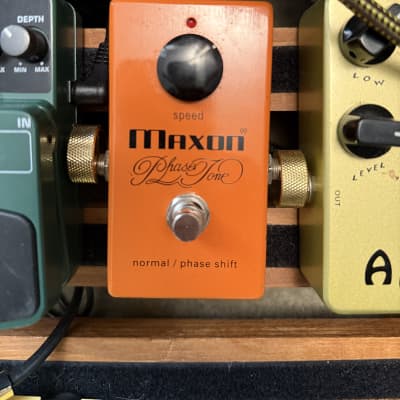

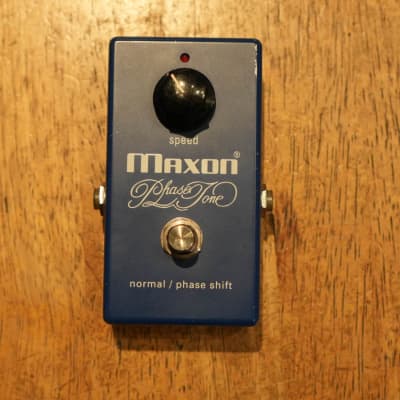

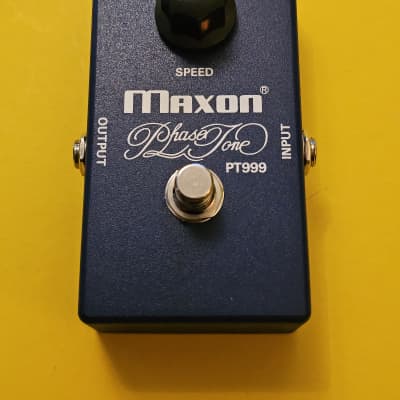

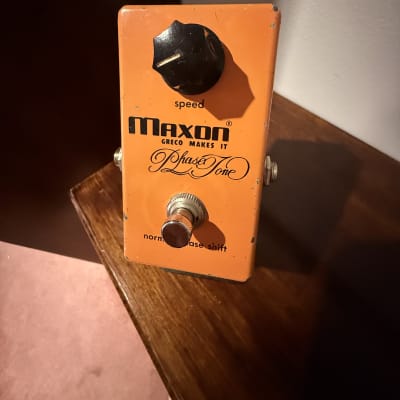

The Maxon PT999 Phase Tone pedal is a compact and versatile phaser unit designed for guitar and bass effects. It offers a range of authentic 70's era phasing effects in a current production unit. The PT999 features a minimalist circuit with a single knob and switch, allowing for a wide variety of expressive phasing nuances. The circuit used in the PT999 is unchanged since its introduction in 1974, providing a timeless tone.

Key Technical Specifications:
- Input Impedance: 500K Ohms
- Input Jack: 1/4 inch standard phone jack
- Output Impedance: 10K Ohms
- Output Jack: 1/4 inch standard phone jack
- Controls: Rate
- Switch: Normal/Effect
- Max Input Level: 0 dBu
- Noise (IHF-A): -80 dBu
- Speed Frequency: 0.2 Hz ­ 14 Hz
- Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
- Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
- Current Consumption: 12 mA (9V) / 14 mA (10 V)
- AC Adaptor AC210N (optional) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +
- Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
- Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
- Weight: 270 g

The PT999's four-stage phasing circuit offers 720 degrees of phasing sweep variable from 0.2 to 14 Hz. The FET's (Toshiba #2SK246) are carefully sorted and matched by hand to produce a smooth phasing sweep with low noise. The pedal runs negative feedback of the signal to each phase-shifting FET for less distortion. Internal trimmers adjust center frequency and width of the phasing sweep, calibrated prior to market.

The PT999 Phase Tone pedal is designed to provide classic phase shifting effects without compromising the guitar's signature tone, making it a valuable addition to any musician's effects arsenal.
