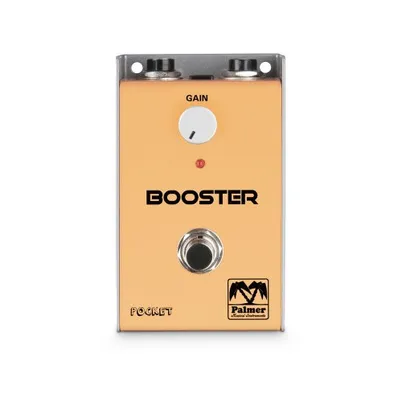

Pocket Booster

The Palmer Pocket Booster is a versatile effect pedal designed for quick and easy gain control. It is constructed with strong sheet steel material and features a powder-coated surface. The pedal can be powered by a 9V battery or an optional power adapter. The technical specifications of the Palmer Pocket Booster are as follows:

- Inputs: 1
- Input connectors: 6.3 mm Jack
- Input impedance: 1 M Ohm(s)
- Outputs: 1
- Output connectors: 6.3 mm Jack
- Output impedance: 100 k Ohm(s)
- Residual noise: -85 dB
- Controls: Gain
- Display: on/off
- Operating voltage: 9 V block, 9 V DC power supply
- Power consumption: 20 mA
- Dimensions: Width 60 mm, Depth 100 mm, Height 55 mm
- Weight: 0.3 kg

The Pocket Booster can be used to increase the volume of an amp, provide more overdrive when placed at the front end of an effects chain, or deliver a lead level boost when placed at the end of an effects chain.
