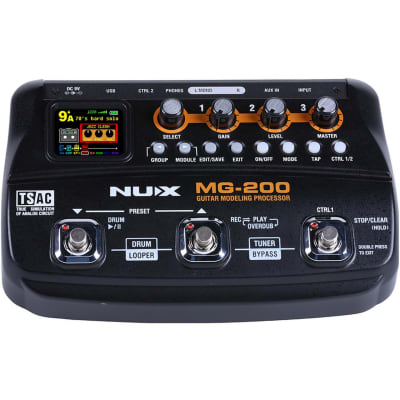

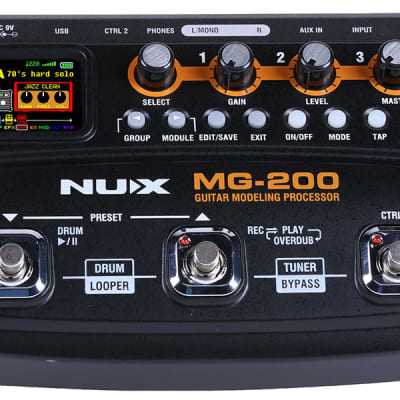

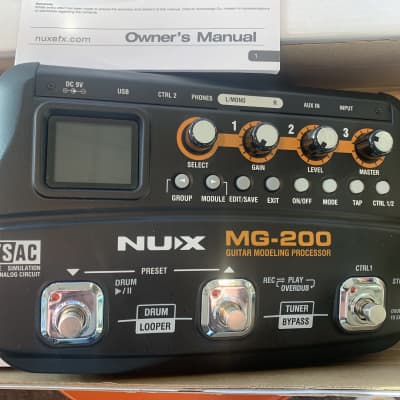

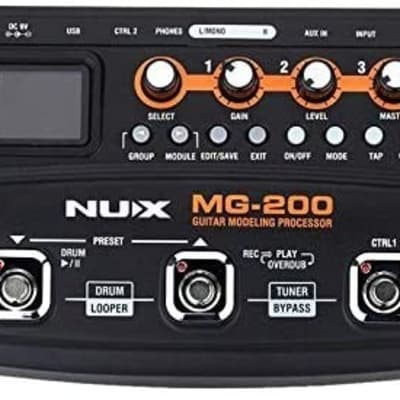

MG-200

The MG-200 by NUX is a versatile multi-effects processor designed to provide a wide range of features and functionalities for guitarists. Here are the technical specifications and details for the MG-200:

Features:
- Total of 55 models, with up to 8 usable simultaneously
- 13 classic amp models with true simulation of analog circuit (TSAC) technology
- Vintage 3-band passive EQ modeling for every amp model
- 6-band graphic EQ designed specifically for electric guitar (100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz, 3.2kHz)
- 12 cabinet models provided
- Built-in drum machine with CD quality PCM sounds
- 56 drum patterns including rock, pop, funk, jazz, etc., and metronome
- Up to 70 seconds phrase loop with sound on sound, adding more playability
- AUX IN jack for practicing with MP3, CDs, and other inputs
- Large color TFT LCD panel (160x128), with a graphic interface for easy and intuitive operation
- A total of 72 presets (36 factory + 36 user presets)
- New generation 32-bit DSP, high performance 24Bit 44.1kHz AD/DA converter

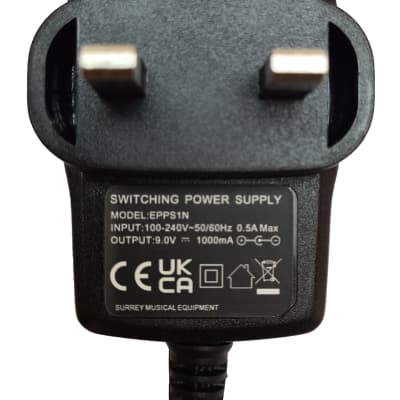

- Runs on batteries and AC adaptor, with six AA/LR6 alkaline batteries providing continuous use for 8 hours

Functionality:
- Dynamics / Filter: Offers a variety of filter options to shape and control sound with compressors, noise gates, filters, 6-band graphic EQ, and wah effects
- Overdrive / Distortion: Allows users to create their drive tone by selecting boosters, overdrives, fuzzes, and lead guitar sounds
- Amp / Cabinets: Features 13 selected amps and cabinets, including simulations of classic tube and solid-state amps powered by NUX TS/AC Technology
- Modulation: Enhances sound with phasers, flangers, chorus, pitch shift, tremolo, and vibrato
- Delay / Reverb: Provides delay and natural-sounding reverbs, including rooms, halls, plates, springs, and tape delay simulators, designed to add depth and spaciousness to sound
- Tuner: Instantly accessible, fast, and accurate tuning

Design:
- Multi-functional 3 footswitches for preset switching, drum and looper control
- One assignable control footswitch "CTRL 1" for quick access to functions like booster, TAP TEMPO, or any selected function to engage/disengage
- Loop Station with Drum Machine: Realistic-sounding drums playing patterns in various music genres, allowing users to record up to 40 seconds loop track with the selected drum style

Specifications:
- Sampling frequency: 44.1 kHz
- AD/DA conversion: 24bit
- Frequency Response: 20Hz-20000Hz ± 1dB
- THD+N: -93dBu (<0.003%)
- Dynamic Range: 110dB
- Input: -20dB
- Output: -10dB
- Power: DV 9V
- Dimensions: 240(L) x 155(W) x 67(D) mm
- Weight: 0.95kg

The MG-200 offers a comprehensive set of features, high-quality sound, and a portable design, making it a valuable addition to any guitarist's setup.
