LVX Modular Delay System Pedal

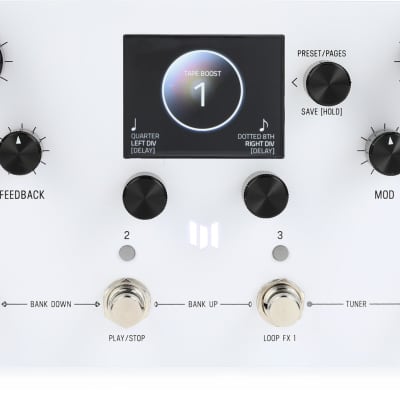

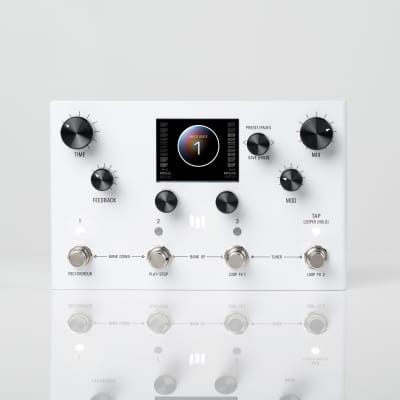

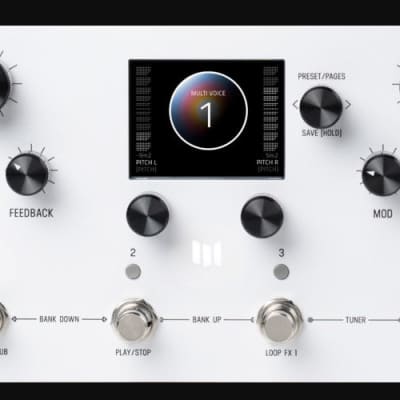

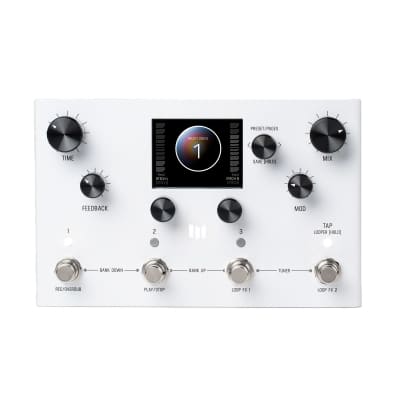

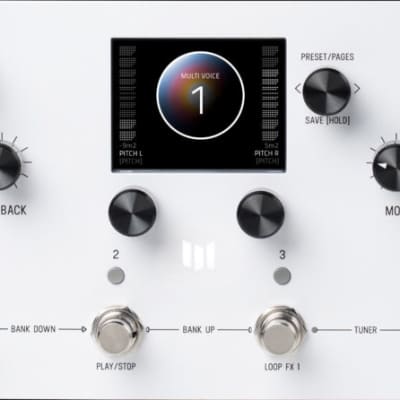

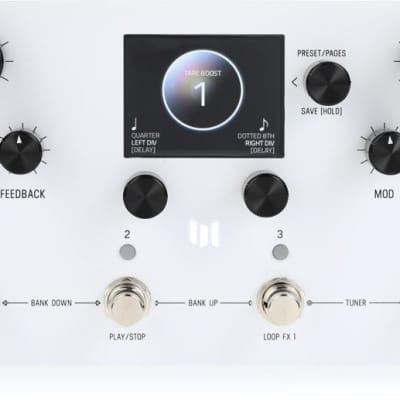

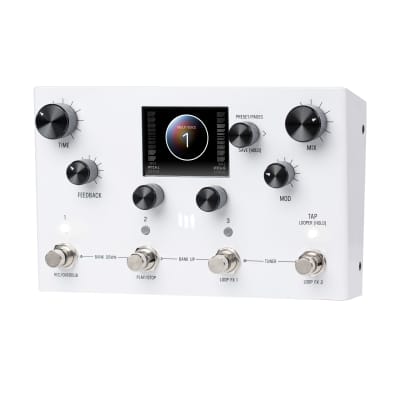

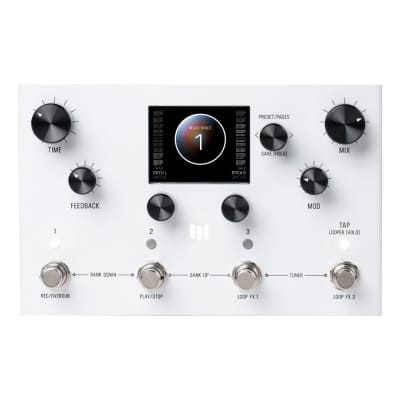

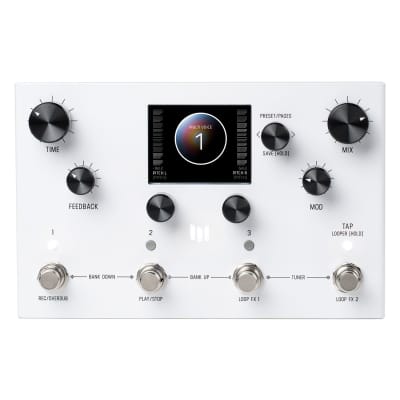

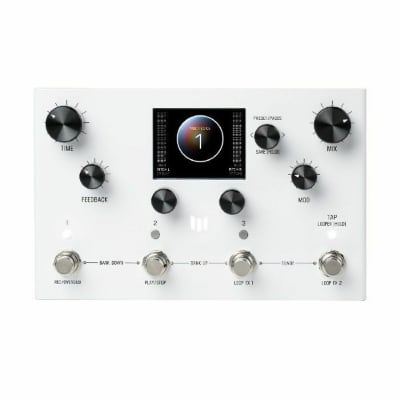

The Meris LVX Modular Delay System Pedal is a pro audio, modular delay system designed to provide ultimate creative freedom in designing custom delay effects. It features a completely new user interface and architecture that allows for nearly infinite flexibility in crafting custom sounds. The pedal offers 2540ms of highly configurable dual delay and an intuitive color screen- based user interface.

Key technical specifications include:
- Pedal Type: Modular Delay
- Analog/Digital: Digital
- Presets: 99 x User, 3 x Favorites
- Max Delay Time: 2540ms
- Looping Time: 1 minute
- Tap Tempo
- Power Supply: 9V DC center negative (power supply sold separately), 300mA
- Bypass: True Bypass, switchable to Buffered Bypass
- Dimensions: H: 6.8 cm (incl. knobs), W: 7.25” wide, 4.5” long, 2” tall
- Weight: 24 ounces

The LVX Modular Delay System Pedal also offers configurable delay structures, types, and processing elements, as well as a deep modifier section for routing control signals to processing parameters. It features true stereo processing elements with selectable note divisions for each side of the stereo dual delay, digitally controlled analog mix bus, switchable input/output headroom levels, and assignable expression pedal control for multiple parameters simultaneously. Additionally, the pedal supports MIDI presets and beat clock synchronization, and it offers the choice between true bypass (relay) or analog buffered bypass.

The pedal's advanced processing elements and high-performance signal path make it suitable for a wide range of use-cases, from studio recording to live performances, offering musicians and sound engineers the flexibility and control to create rich, expansive soundscapes.
