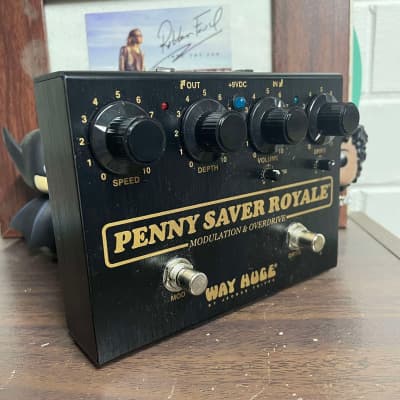

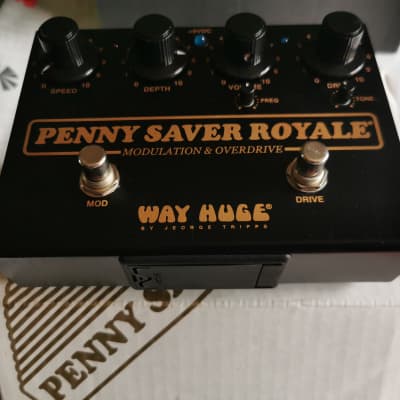

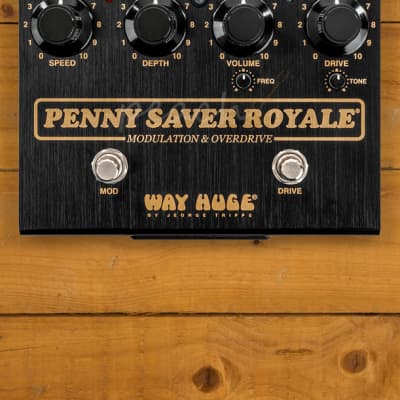

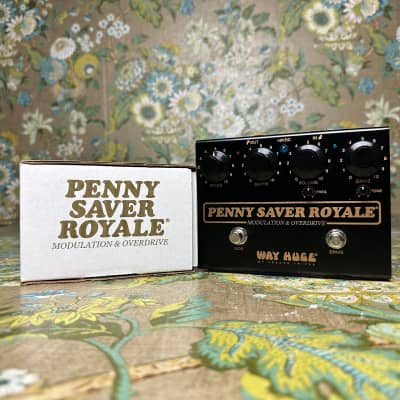

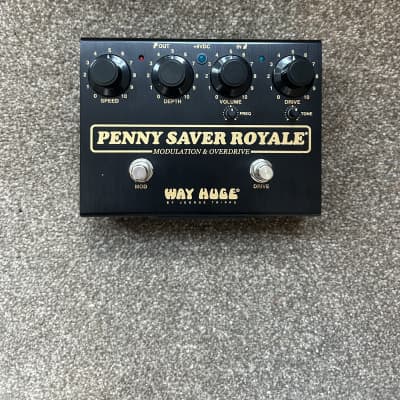

Penny Saver Royale Modulation & Overdrive

The Way Huge Penny Saver Royale Modulation & Overdrive unites Joe Bonamassa's beloved Way Huge pedals in a single housing. One side features the punch, grit, and tweakability of the Overrated Special Overdrive, while the other side features the lush tones of the Blue Hippo Chorus' primary mode, with a custom delay time specially suited to Joe's taste. The pedal allows for running each effect independently or combining the overdrive with the chorus for soupy textures.

Specifications:
- Input Impedance: >500 kΩ
- Output Impedance: < 2 kΩ
- Noise Floor: < -88 dBV
- Bypass: True Hardwire
- Current Draw: 49 mA
- Power Supply: 9 VDC

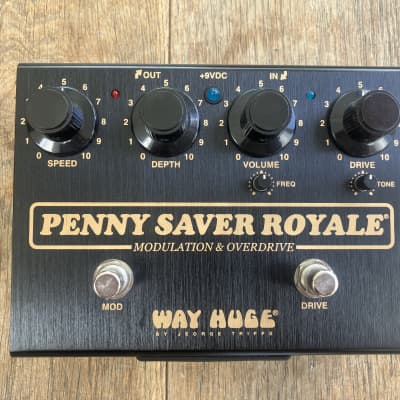

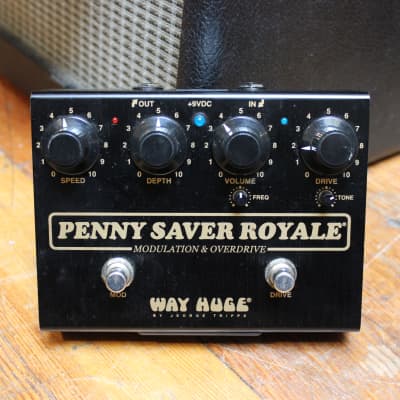

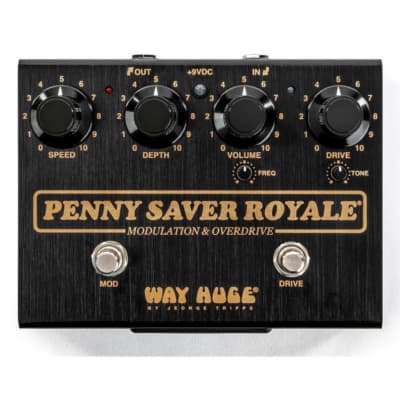

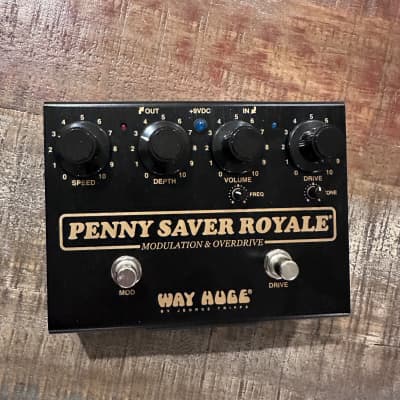

Controls:
1. MOD footswitch toggles modulation effect on/bypass (small red LED indicates ON)
2. SPEED knob controls rate of modulation effect
3. DEPTH knob controls intensity of modulation effect
4. CENTER LED indicates pedal on/bypass status (blue light indicates ON)
5. VOLUME knob controls overall volume of overdrive effect
6. DRIVE knob controls intensity of overdrive effect
7. FREQ knob cuts or boosts low midrange of overdrive effect at 900Hz
8. TONE knob adjusts overall EQ of overdrive effect
9. DRIVE footswitch toggles overdrive effect on/bypass (small blue LED indicates ON)

Power:
The pedal is powered by a single 9-volt battery, a 9-volt AC adapter such as the Dunlop ECB003, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies. The power input is a 5.5mm x 2.1mm jack with the positive voltage on the outer sleeve. Using an external power supply will disconnect the battery. The pedal includes power protection circuitry to prevent damage from AC power supplies.

The Way Huge Penny Saver Royale Modulation & Overdrive is designed to infuse electrifying gain and sustain into guitar licks and offers the liquefied intensity of a rotating speaker, providing a tonal splurge for musicians.
