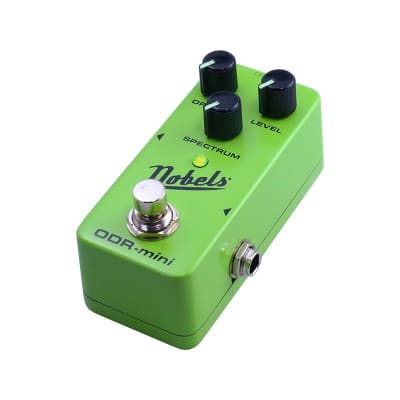

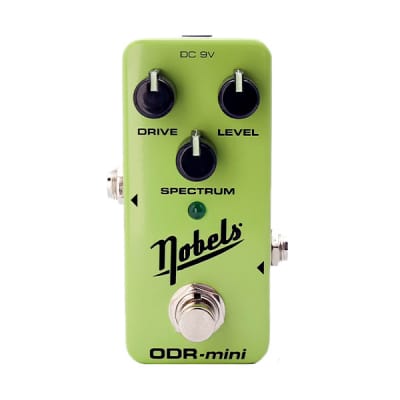

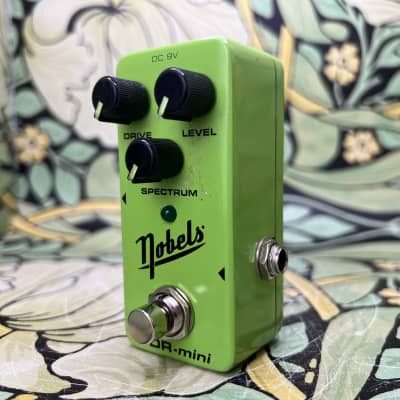

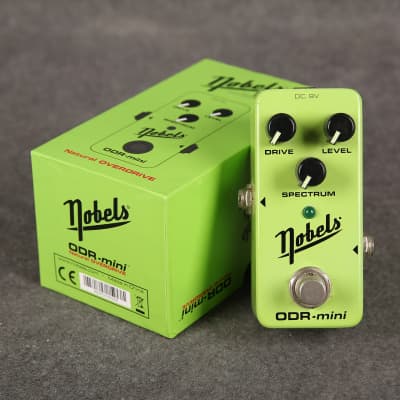

ODR-Mini

The Nobels ODR-Mini is a compact overdrive pedal designed for guitarists seeking natural, tube-amp style overdrive tones. Here are the technical specifications and features:

- Dimensions: 41.5 mm (W) x 93 mm (L) x 50 mm (H)
- Weight: 175 g
- Power: Stabilized power supply (9 Volt DC), power connector 2.1 mm / negative center, consumption max. 11 mA
- Input impedance: Approximately 1 MΩ
- Output impedance: Approximately 2.2 kΩ
- Max. input level: +6 dB
- Controls: Drive, Spectrum, Level (featuring "Glow in the Dark" knobs)
- Jacks: DC, Input 1/4“ (6.3 mm), Output 1/4“ (6.3 mm)
- LED: 1x green LED for On/Off indication
- True Bypass
- Operation up to 18 volts for increased headroom
- Analog design
- Mono In, Mono Out
- Power consumption: 25mA
- Made in China
- Additional features: True Bypass, Spectrum control with mid-click, compact and solid housing

The ODR-Mini is optimized for 9V DC, but operation with power supply units of up to 18 V DC is possible, with slight variations in sound results. The pedal is equipped with a Drive control for adjusting from slight crunch to full overdrive, a Spectrum control for adjusting deep-mid and treble frequencies, and a Level control for volume adjustment.

The pedal is known for delivering creamy, natural tones from pushed clean amp to gain-filled stack tones, making it suitable for rock, blues, and hard rock sounds. The ODR-Mini features true-bypass switching, "Glow in the Dark" knobs, and a center grid on the Spectrum potentiometer for better orientation on dark stages.
