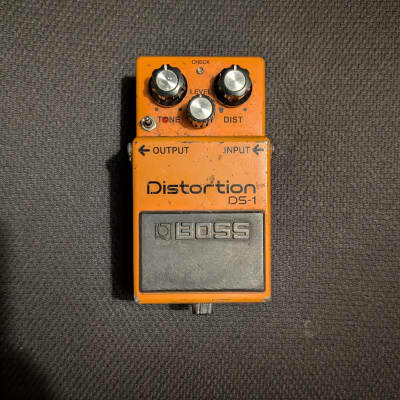

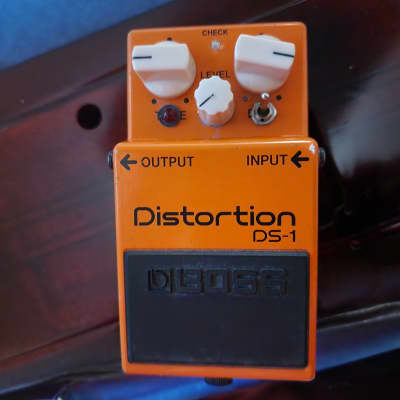

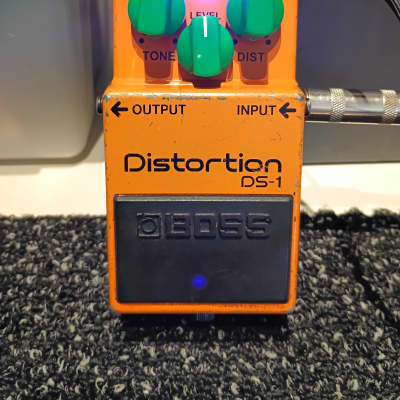

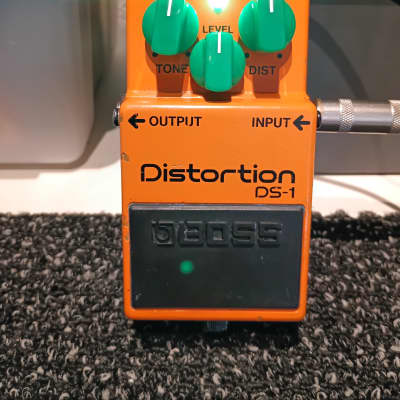

DS-1 Distortion

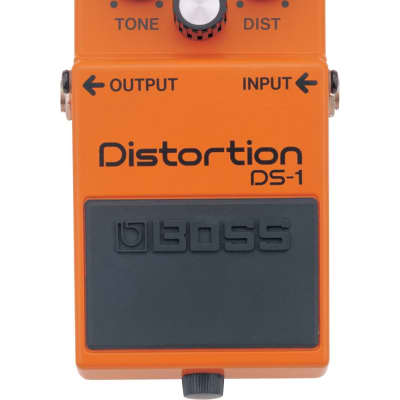

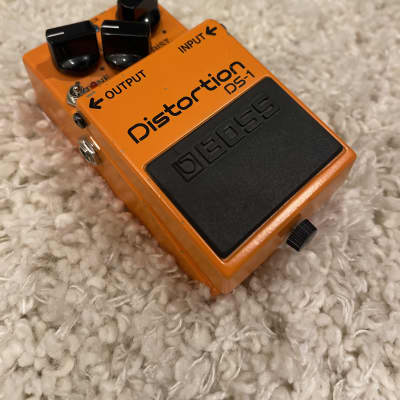

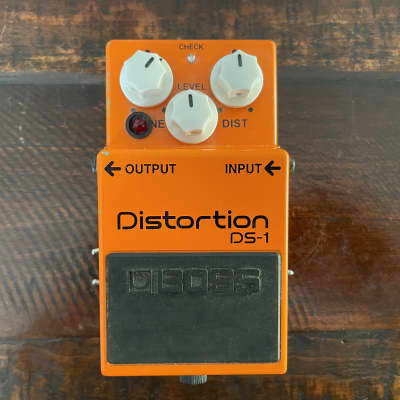

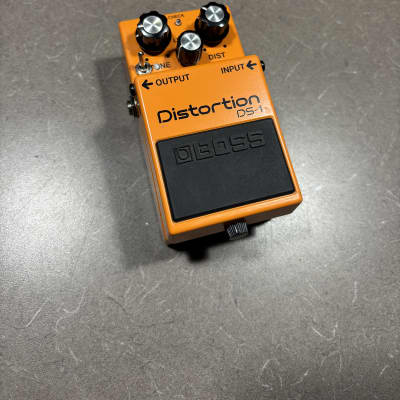

The BOSS DS-1 Distortion pedal is a legendary guitar effects pedal that has been used by guitarists since 1978. It is known for its classic tones suitable for various music genres. The pedal features a hard-edged attack that remains clear even at maximum distortion settings, making it ideal for heavy rhythms and cutting solos. Additionally, it can function as a booster at low distortion settings.

The DS-1 Distortion pedal incorporates a unique tone control that offers a wide range of sound shaping. Unlike typical tone controls that only cut highs, the DS-1's tone circuit has an innovative design that provides a broader range. This allows users to dial in everything from tight, cutting rhythm sounds to smooth, fat lead voices. The pedal's tone control is particularly effective for maintaining low-end definition when used as a booster with vintage-style amps.

The pedal's distortion knob offers an extremely wide range, from a mild boost for driving amps and pedals to full-throttle gain for powerful rock riffs. Its pioneering two-stage circuit incorporates both transistor and op-amp gain stages, which is critical to the DS-1's characteristic low-frequency fullness, loved by guitarists who play heavy music genres.

The technical specifications of the BOSS DS-1 Distortion pedal include:
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Power Supply: 9V DC

The DS-1 Distortion pedal is a true icon in the world of guitar effects, and its original, unchanged design continues to inspire the creation of great music.
