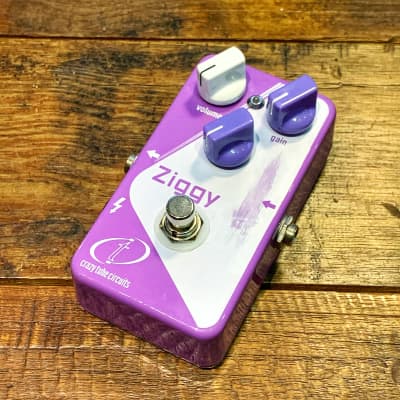

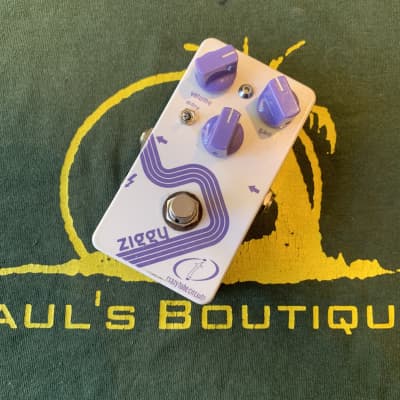

Ziggy

The Ziggy by Crazy Tube Circuits is a compact and versatile overdrive/distortion pedal designed for electric guitar. It features five control knobs: Volume, Gain, Tone, Presence, and a 3-way Clipping Switch. The Volume knob adjusts the output volume of the pedal, while the Gain knob controls the amount of distortion and overdrive. The Tone knob lets you adjust the overall tonal character of the effect, while the Presence knob controls the high-frequency response. The 3-way Clipping Switch allows you to choose between silicon, LED, and no clipping for different levels of distortion and compression.

The pedal uses a true bypass switching system and can be powered by a 9-volt battery or an AC adapter. It features a sturdy metal construction built to withstand the rigors of live performance. The internal circuitry provides 18V DC from a standard 9V DC power supply to ensure maximum headroom and tube-like response.

Specifications:
- Controls: Volume, Gain, Tone, Presence, 3-way Clipping Switch
- Input Impedance: 1 MOhm
- Output Impedance: 1 kOhm
- Maximum Output Level: +6 dBu
- Maximum Gain: 75 dB
- Power Supply: 9V DC, AC Adapter, or 9V Battery
- Current Draw: 20 mA (DC 9V)
- Dimensions: 112 (W) x 60 (D) x 31 (H) mm / 4.4 (W) x 2.4 (D) x 1.2 (H) inches
- Weight: 250 g / 0.55 lbs
