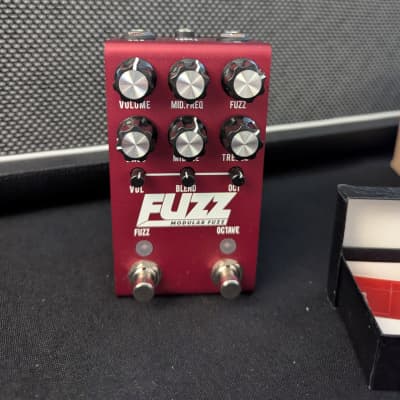

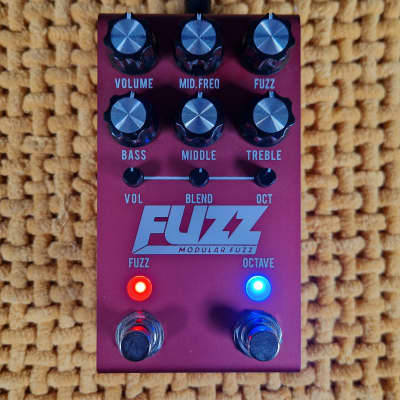

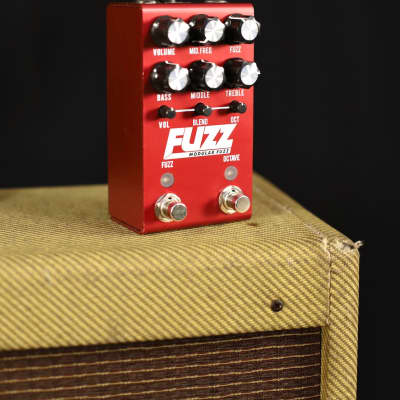

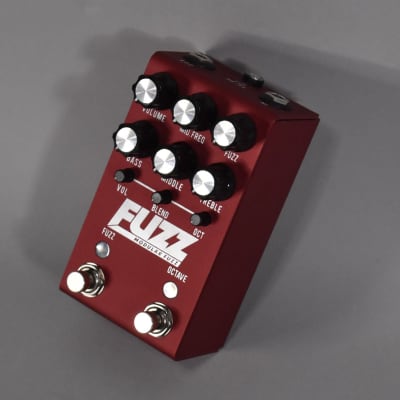

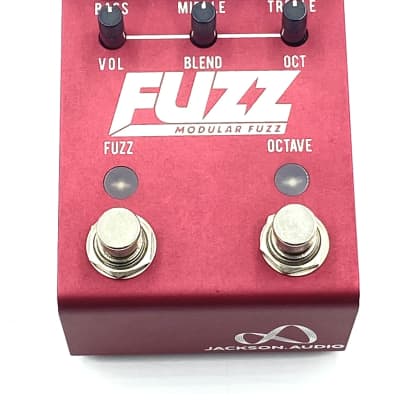

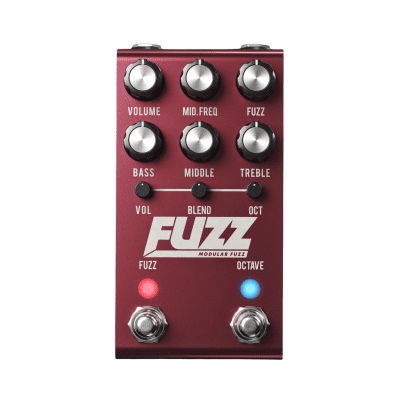

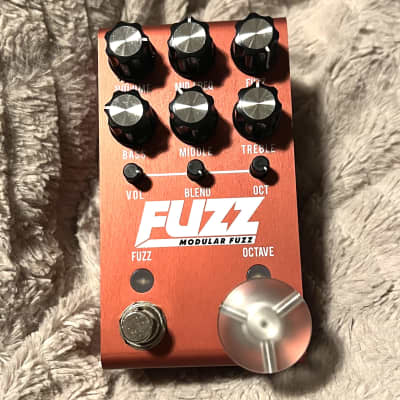

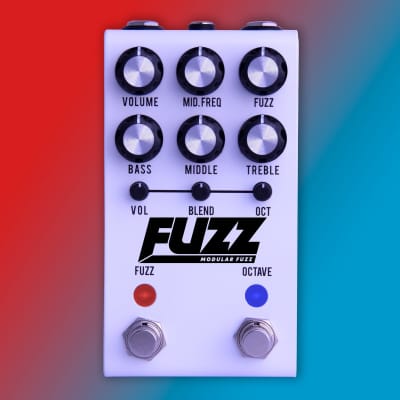

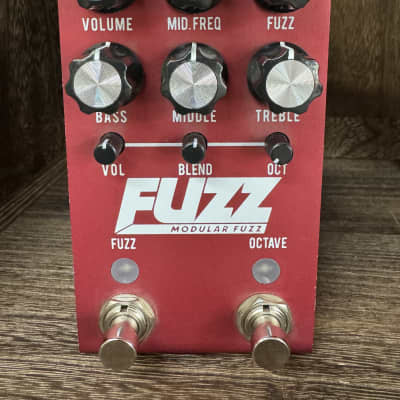

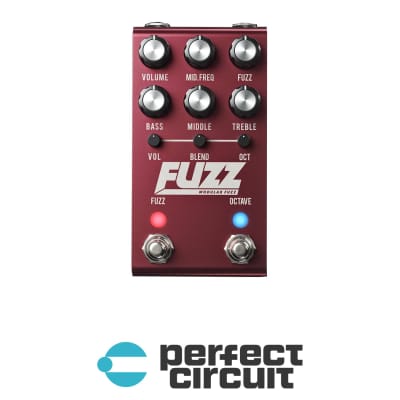

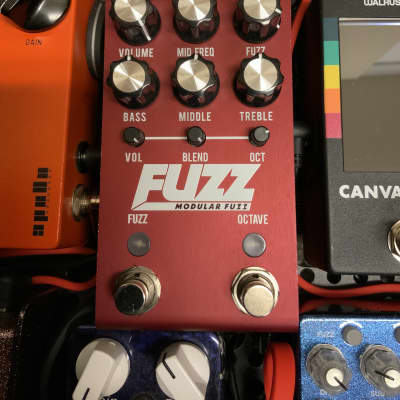

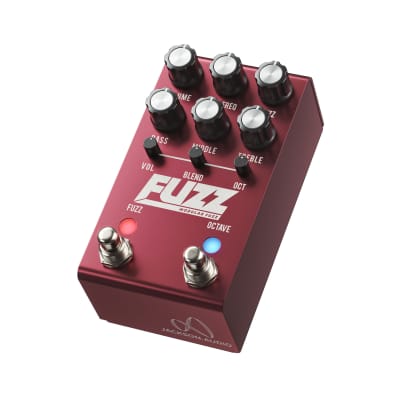

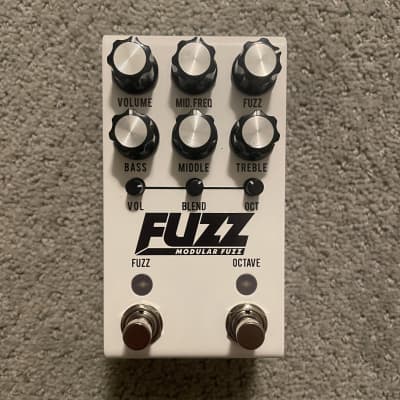

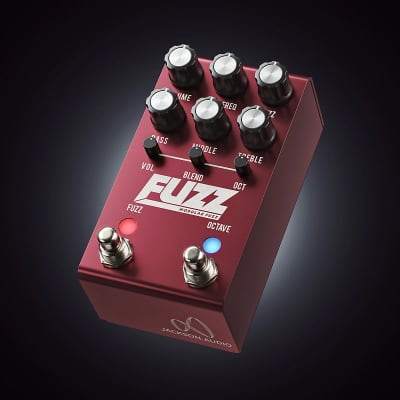

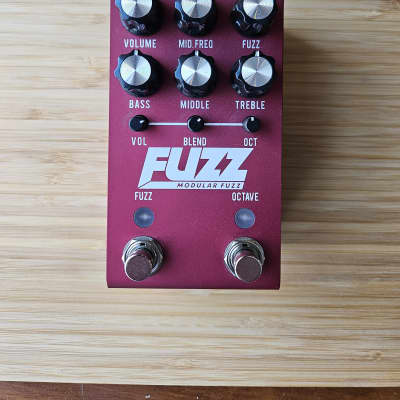

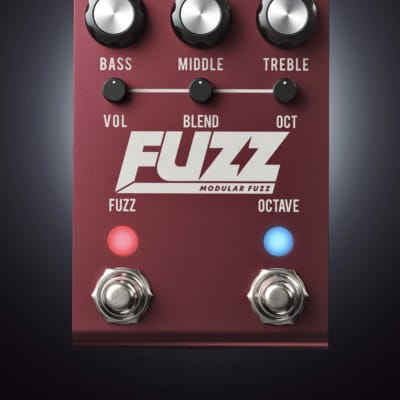

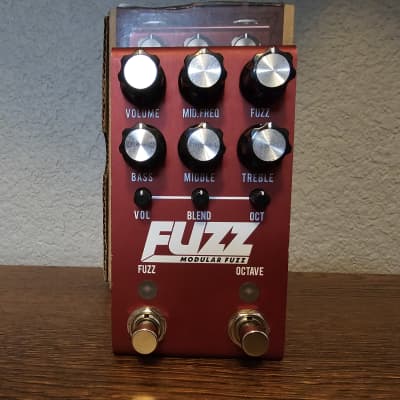

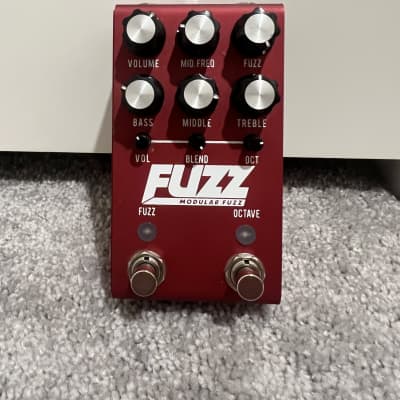

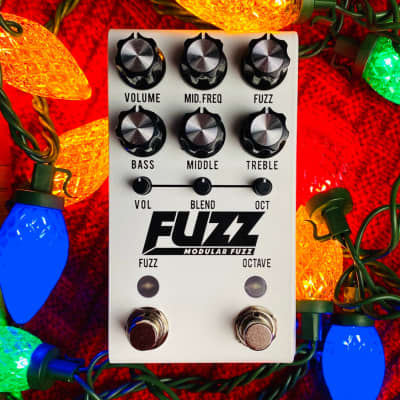

Modular Fuzz

The Modular Fuzz by Jackson Audio is a versatile and innovative pedal that offers a range of features and functionalities. Here are the technical specifications and details for the Modular Fuzz:

- True Bypass (mechanical) for each circuit
- Input Impedance: 1M
- Output Impedance: 100k
- Power Supply: DC
- Voltage Input: 9V MAX
- Polarity: Center Negative
- Min Current Required: 50mA
- Dimensions: 2.7” x 4.875″

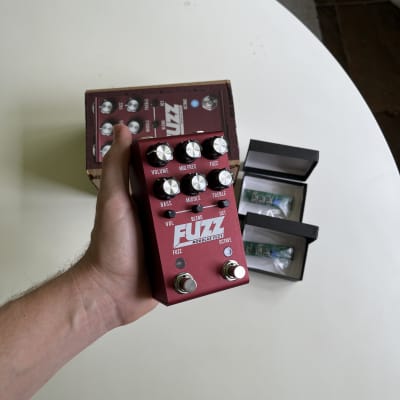

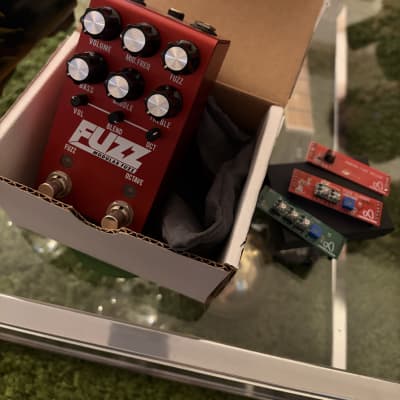

The pedal ships with the MODERN FUZZ installed and the FUZZ CLASSIC - VINTAGE as an extra module. It also features analog plug-ins that allow users to update their fuzz sound completely and turn the pedal into a whole new pedal with a simple and affordable plug-in swap.

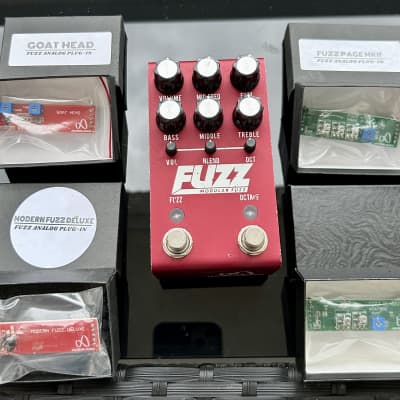

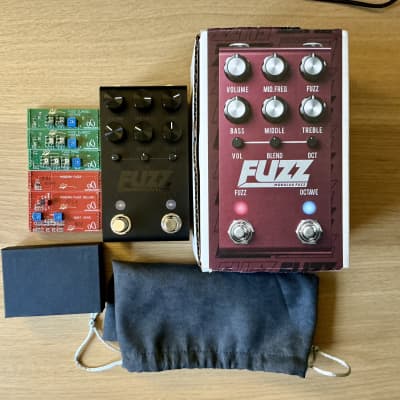

The pedal includes various analog plug-ins such as MODERN FUZZ, MODERN FUZZ DELUXE, FUZZ CLASSIC/VINTAGE, FUZZ CLASSIC/MODERN, FUZZ PAGE MARK II, and GOAT HEAD, each offering unique tonal characteristics and sonic possibilities.

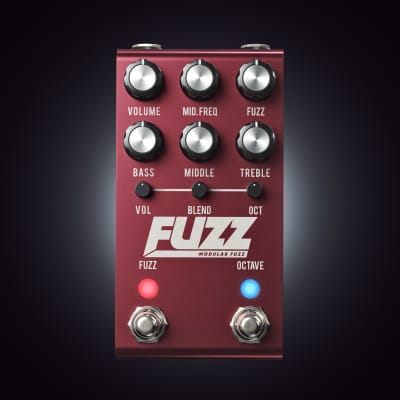

The Modular Fuzz is equipped with a 3-band, fully parametric EQ designed to provide effective tone controls. It includes controls for bass level, bass frequency, bass Q, mid level, mid frequency, mid Q, treble level, treble frequency, and treble Q, allowing users to sculpt their tone precisely.

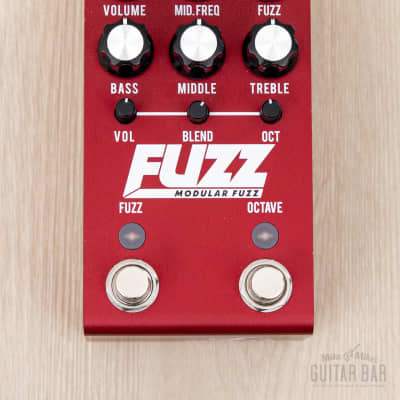

Additionally, the pedal features an octave circuit with a unique octave BLEND control, covering everything from perfectly pure octave up to screaming splatting sonic mayhem. The BLEND control mixes the clean signal with the fuzz/octave signal, allowing users to dial in precisely how much octave effect they want.

Overall, the Modular Fuzz by Jackson Audio is a highly tweak-able and versatile pedal that offers a wide range of sonic possibilities and tonal flexibility, making it suitable for a variety of musical styles and applications.
