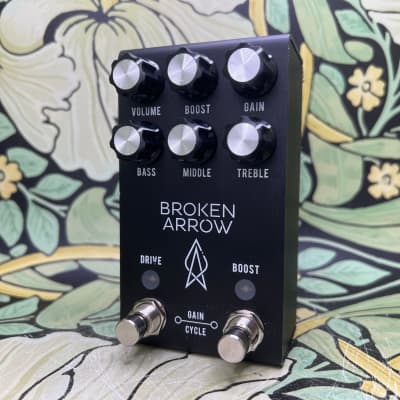

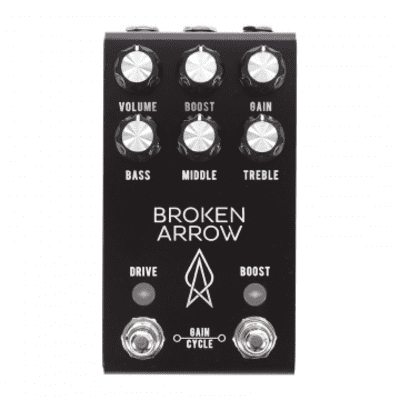

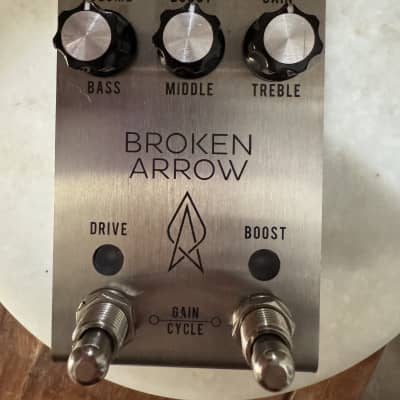

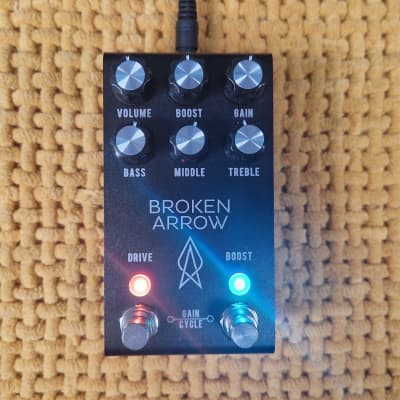

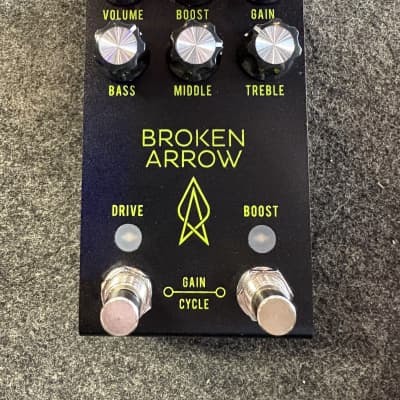

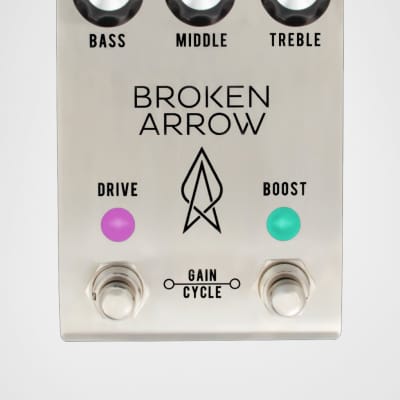

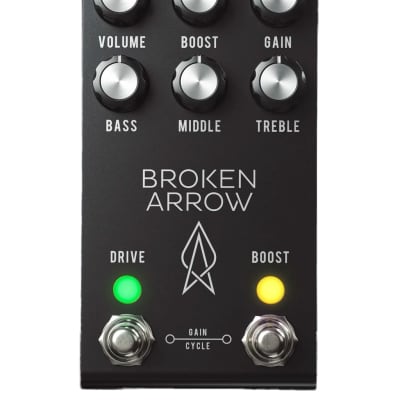

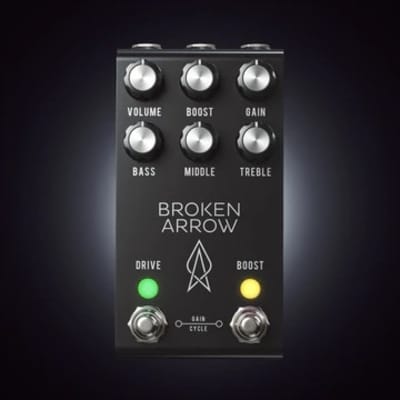

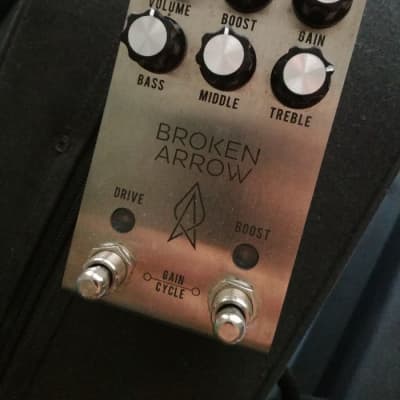

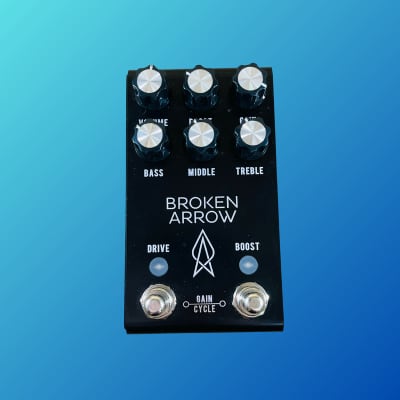

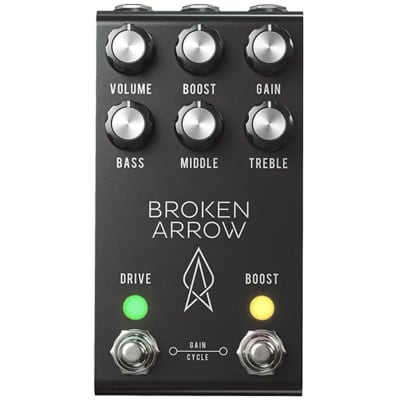

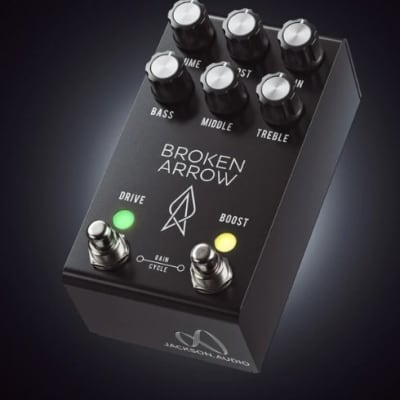

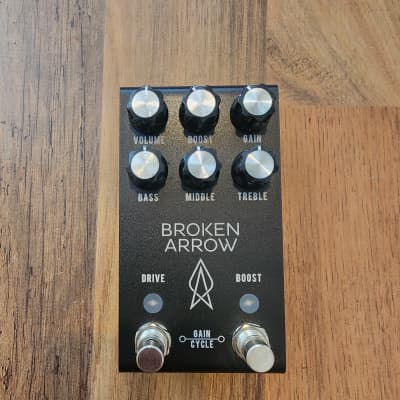

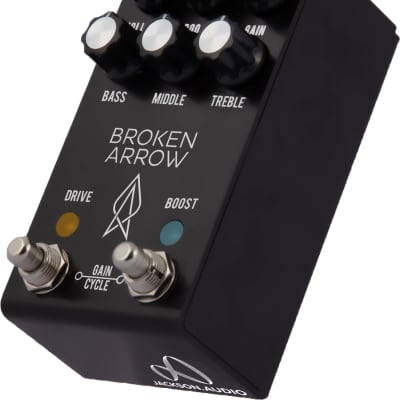

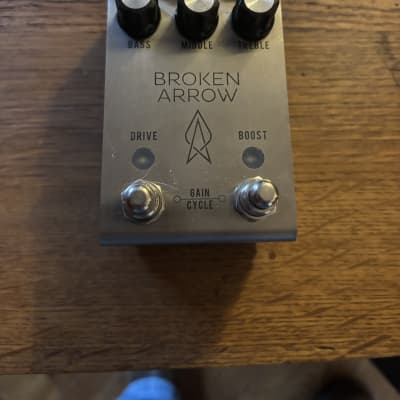

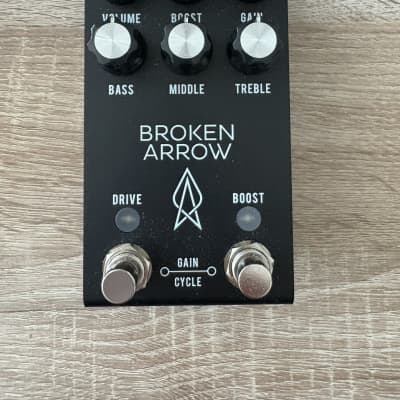

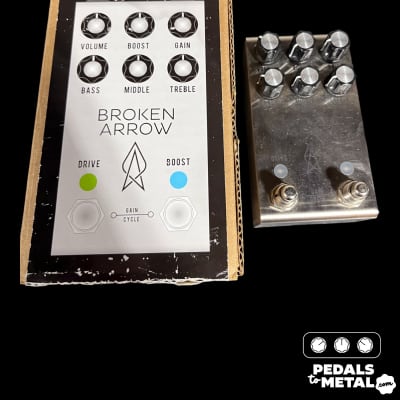

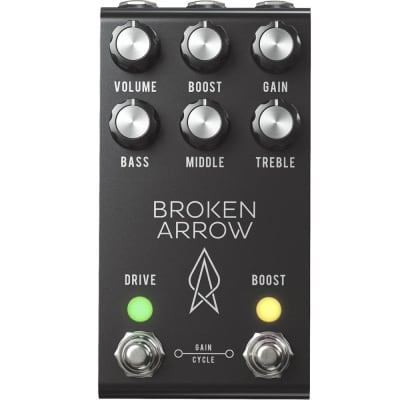

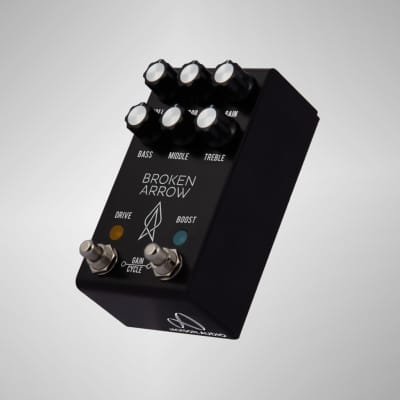

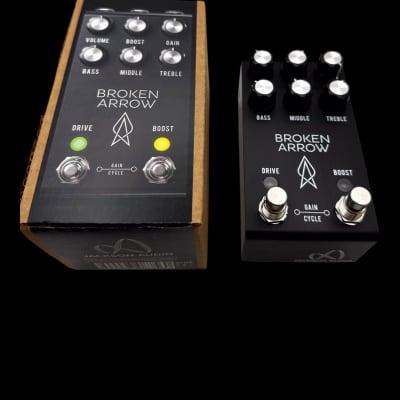

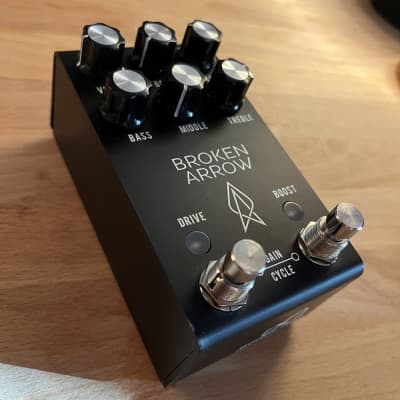

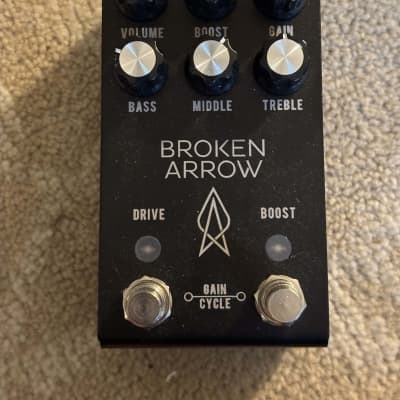

Broken Arrow

The Broken Arrow by Jackson Audio is a comprehensive overdrive platform designed to provide guitarists with a wide range of overdriven tones and innovative features. Here are the technical specifications:

- Input Impedance: 1M
- Output Impedance: 100k
- Power Supply: DC
- Voltage Input: 9V MAX
- Polarity: Center Negative
- Min. Current Required: 150mA
- Dimensions: 2.7” x 4.875”
- Weight: 317 g
- Hand-built in Fort Worth, Texas, USA
- True Bypass
- Lifetime warranty

The pedal features a boost circuit based on the MOSFET boost circuit found in Jackson Audio's Prism pedal. It offers 4 presets for tailoring the sound of the boost and how it interacts with the overdrive circuit.

The overdrive circuit is designed around a soft clipping overdrive circuit similar to the TS-808 Tubescreamer, with 4 distinct diode clipping choices and gain cycling for additional tonal options. The active 3-band EQ provides powerful tone sculpting capabilities.

Additionally, the Broken Arrow features MIDI control for all knobs, on/off, and boost, allowing for extensive control and flexibility.

Overall, the Broken Arrow is a versatile overdrive pedal with advanced features and robust construction, suitable for a wide range of musical applications.
