510

The 510 by Zoom is a dedicated distortion unit with two on-board distortion modules, PRE DRIVE and MAIN DRIVE. These modules allow for parallel or serial connection, providing a wide variety of overdrive and distortion sounds. The unit offers a total of 16 effects, with eight effect types per distortion module, including compressor, pedal wah, auto wah, and octaver. It features memory capacity for 24 patches, each with diverse settings based on user preference.

The 510 includes an integrated auto-chromatic tuner for guitar, allowing for easy tuning anywhere, anytime. It also features an optional expression pedal FP01 for controlling pedal wah, MAIN DRIVE gain, mixing balance for parallel connection, and other parameters. Additionally, the unit supports an optional foot switch FS01 for switching PRE DRIVE on and off during a performance.

The dual power supply design allows the unit to be powered from a 9V alkaline battery (6LR61) or an AC adapter. Safety precautions include recommendations for power sources, battery usage, and environmental conditions to ensure hazard-free use.

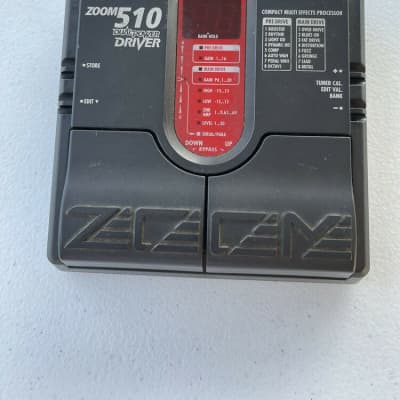

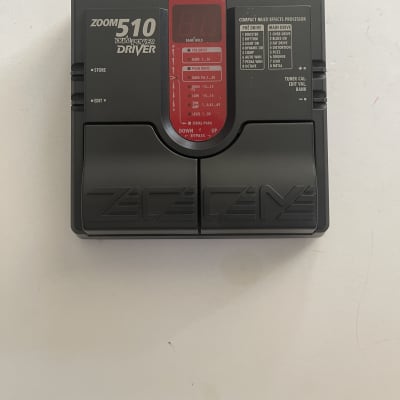

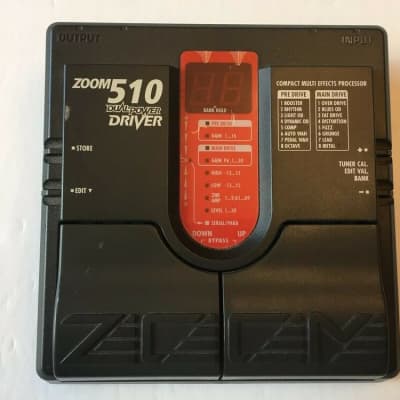

The 510's front panel features patch pedals for easy selection of the 24 patches, while the VALUE+/- keys enable bank switching. The unit also offers bypass and tuner modes, with indicators for tuning function, bypass mode, and battery status. The display provides essential information for operating the 510, including patch and bank selection, and tuning function.

The rear panel includes input and output jacks, a direct out jack, DC IN (AC adapter) jack, and CONTROL IN jack for connecting optional foot switches or expression pedals. The unit's configuration of effects involves the PRE DRIVE, MAIN DRIVE, HIGH/LOW (equalizer), and ZNR/AMP (Zoom Noise Reduction/Amp Simulator) modules, which can be connected in parallel or serial.

The 510 comes with 24 predefined patches, but users can edit and store their own patches, offering numerous possibilities for combining effects in innovative ways. The unit's editing mode allows for the selection and adjustment of effect parameters, providing flexibility for creating custom patches.
