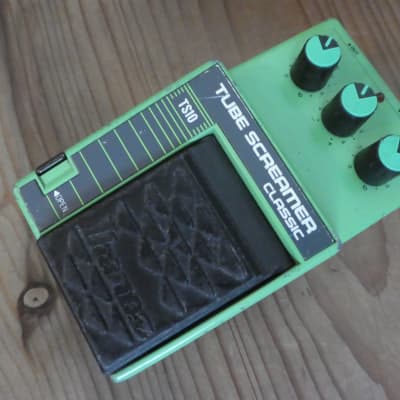

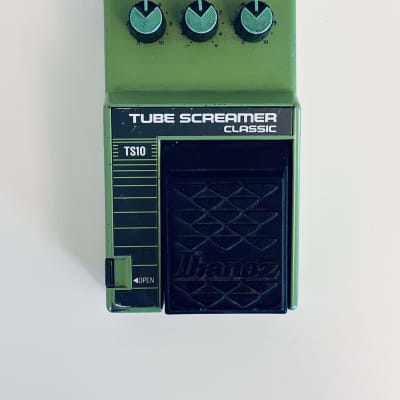

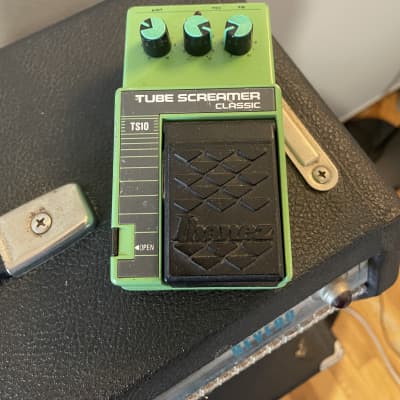

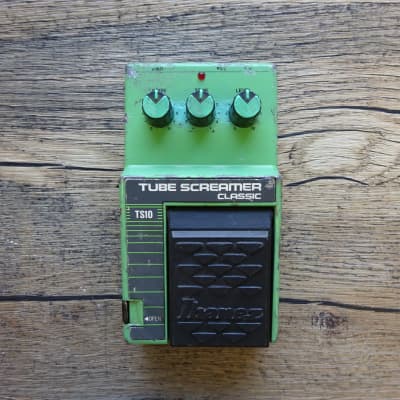

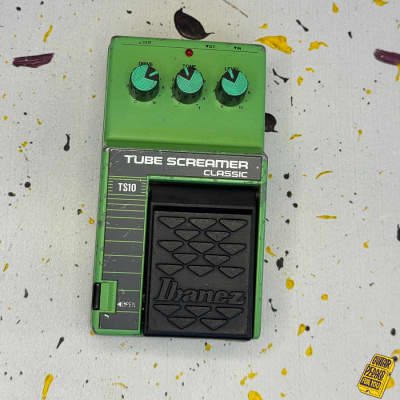

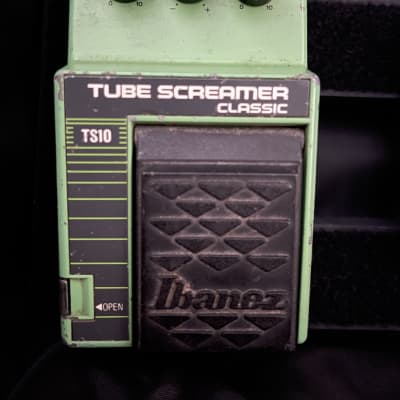

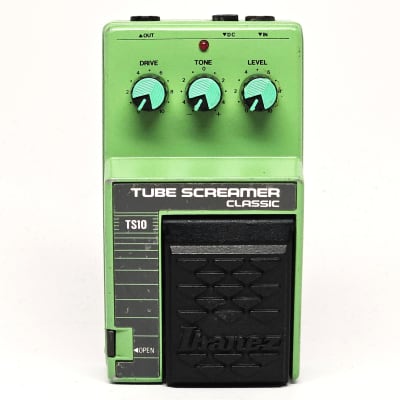

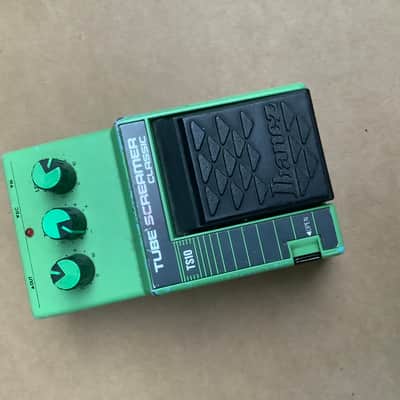

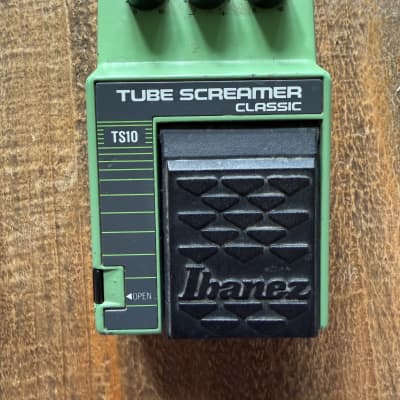

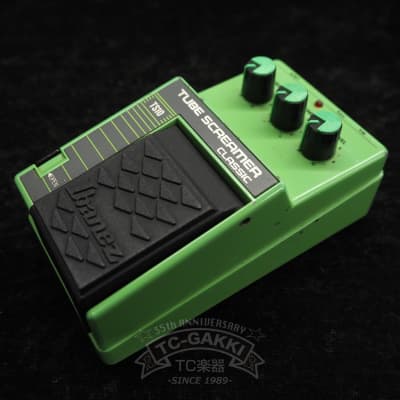

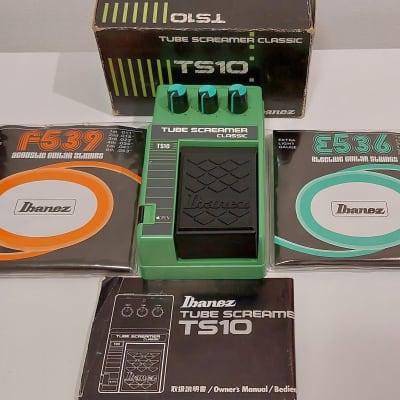

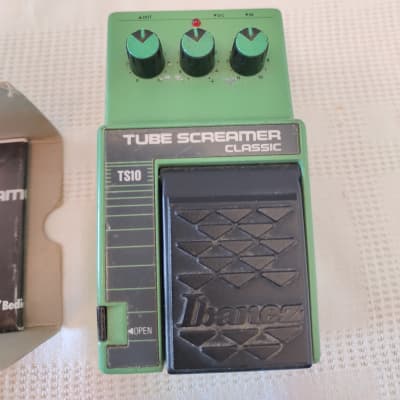

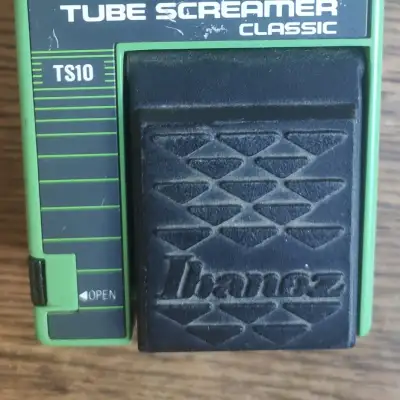

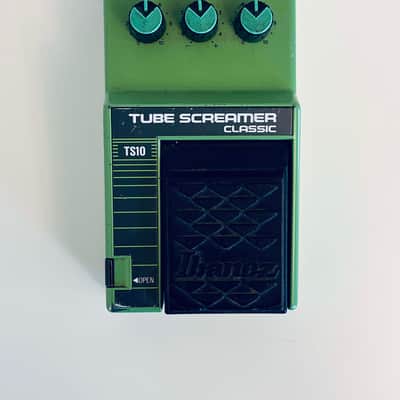

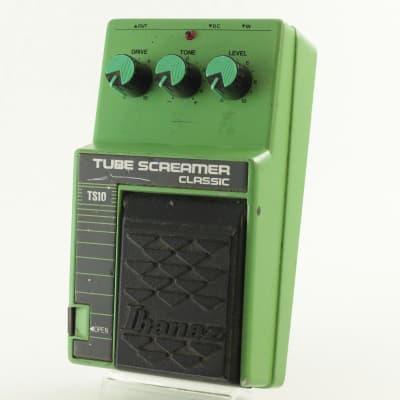

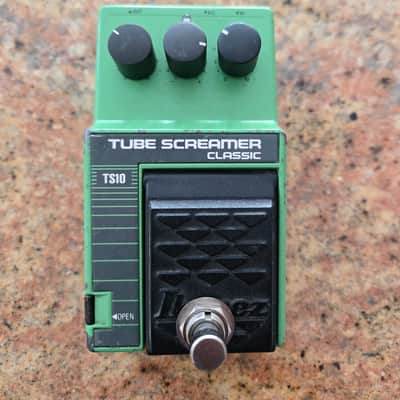

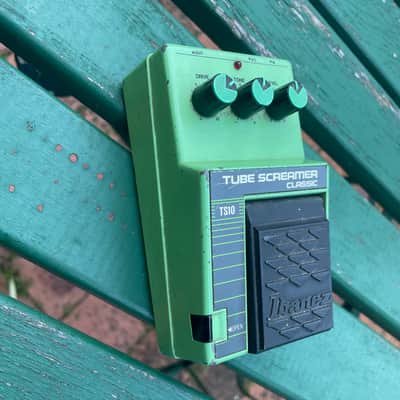

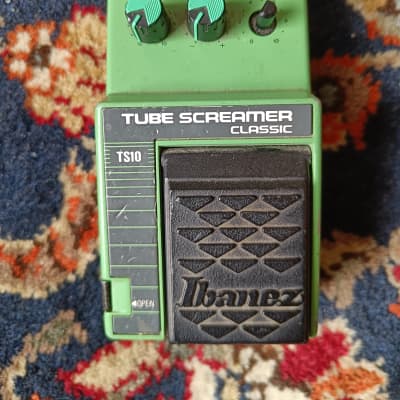

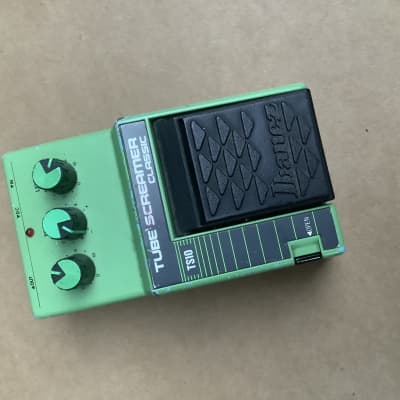

TS10 Tube Screamer Classic

The Ibanez TS10 Tube Screamer Classic is an iconic overdrive pedal known for its distinct sound and versatile functionality. Here are the technical specifications and details for the TS10:

- Input Impedance: 500k Ohms
- Output Impedance: < 1k Ohm
- Maximum Output Level: 0 dBv
- Maximum Gain: +40 dB
- Equivalent Input Noise: -110 dBv (IHF-A)
- Power Consumption: 7 mA
- Power Requirements: 9 V DC
- Dimensions: 125(D) x 70(W) x 54(H) mm
- Weight: 400g

Features:
- The TS10 provides the sound of an overdriven tube amp.

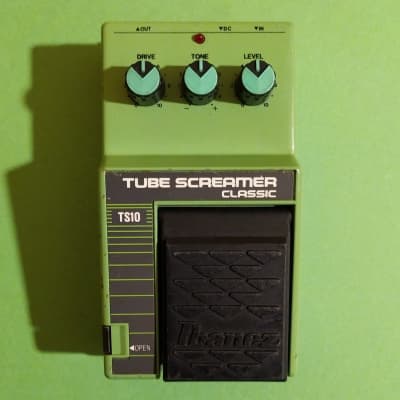

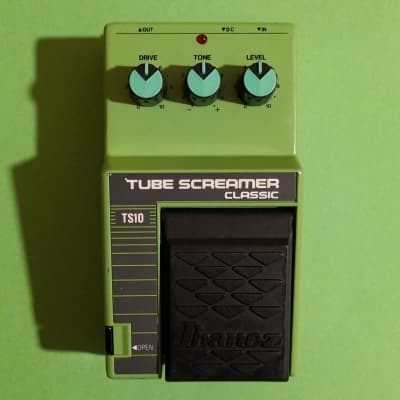

- It features a Drive control to vary the intensity of the distortion, a Tone control for equalization, and a Level control that varies the overall gain when the distortion is engaged.

Principle:
- The TS10 boosts the input signal to extremes and then clips the waveform with semiconductors that have the characteristics to distort naturally, like a tube amp. Sustain is also added to the sound.

Use:
- The TS10 is highly responsive to dynamics, allowing for a wide range of overdriven tones. It can be used in conjunction with other pedals, especially a good boost, to drive the amp beautifully just beyond break-up while maintaining clarity.

Overall, the TS10 Tube Screamer Classic is a versatile and responsive overdrive pedal that has been favored by many guitarists for its ability to deliver classic overdriven tones.
