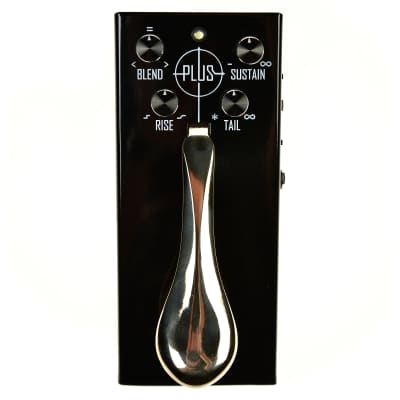

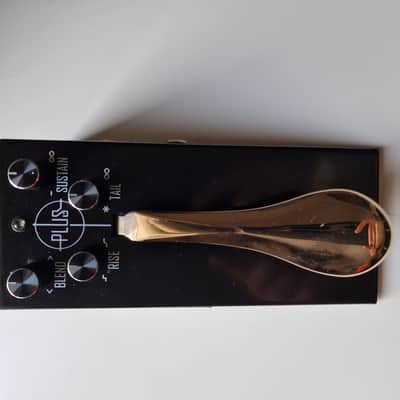

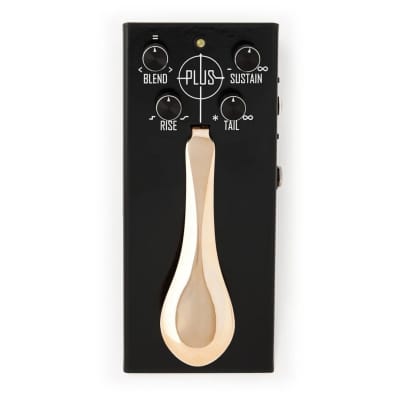

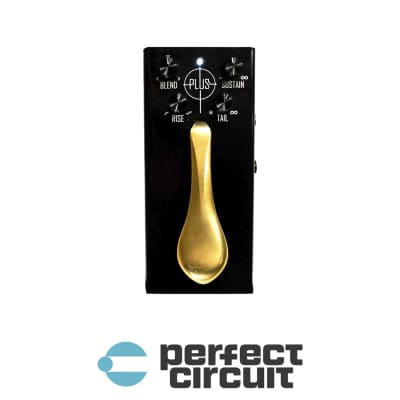

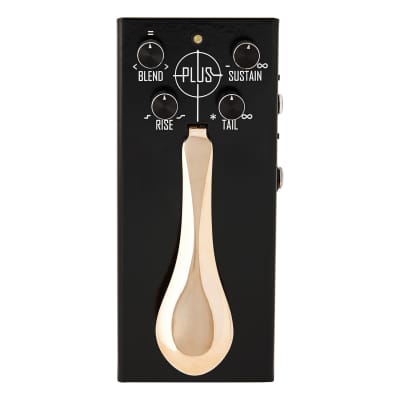

PLUS Pedal

The PLUS Pedal by Gamechanger Audio is a piano-style sustain pedal designed for guitars and all other melodic instruments. It offers piano-style sustain/sostenuto effects and uses real-time audio sampling to capture and sustain notes or chords. The pedal does not generate sounds with oscillators and filters, but instead, it samples short snippets of sound into seamless, continuous loops, ensuring that each sustained note or chord retains the exact character of the instrument and playing style.

Technical Specifications:
- Power Requirements: 200mA, 9VDC, center negative 2.1 x 5.5 mm plug
- Dimensions (WxDxH): 90 x 195 x 72 mm (3.55 x 7.7 x 2.8 in)
- Weight: 1020 g (2.25 lbs)
- Input: 1/4” TRS (Stereo) in from PLUS Pedal
- Outputs: 1/4” (mix out), 1/4” (clean out/footswitch input)

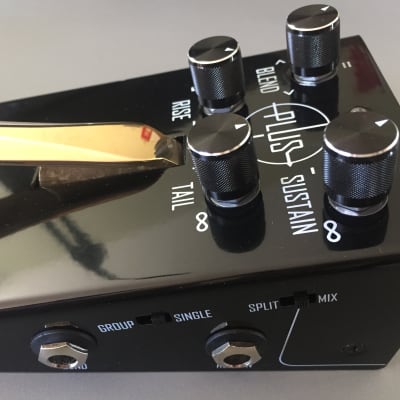

- Controls: 2-position foot pedal, Potentiometers: Blend, Sustain, Rise, Tail, Switches: Group/Single, Split/Mix, additional footswitch input
- Indicator: 3-level check and pedal state indicator
- Connectors: IN, CLEAN OUT/FSW, OUT, SEND, RETURN
- Power Consumption: 1.8W
- A/D D/A Conversion: 16 bit
- Frequency Response: Analog/Digital 20Hz to 22kHz/13kHz
- Signal to Noise Ratio: -97 dB (A weighted); ref = max level, 22 kHz bandwidth
- THD: -84 dB, ref= 6dBu, 1kHz

Key Features:
- Full spectrum of sustain controls with 4 knobs (Blend, Sustain, Rise, Tail)
- Multiple layers allow stacking up to 5 notes or chords simultaneously
- Unique design combining a guitar stomp-box and piano’s damper pedal
- Two Outputs for use with a two-amplifier setup or to split the effects chain
- FX Loop for linking with other effects units to modify the Wet signal

Use Cases:
- Compose "impossible" song arrangements using just one instrument
- Create soundscapes and ambiance without DAWs or multi-effect setups
- Transform chords into synth-like pads and beautiful textures
- Get inspired for songwriting and composition on the go

The PLUS Pedal is a versatile tool for live performances, songwriting, creating drones, ambient soundscapes, cinematic sound effects, aural training, and practicing improvisation. It is compatible with all types of microphones and offers a 30-day return period and a one-year warranty.
