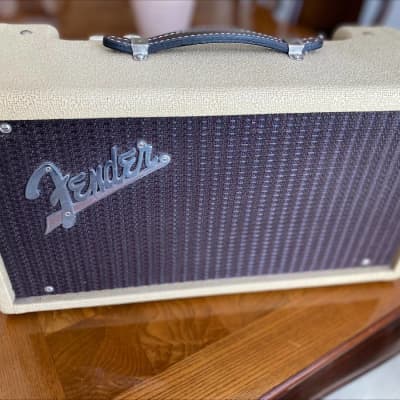

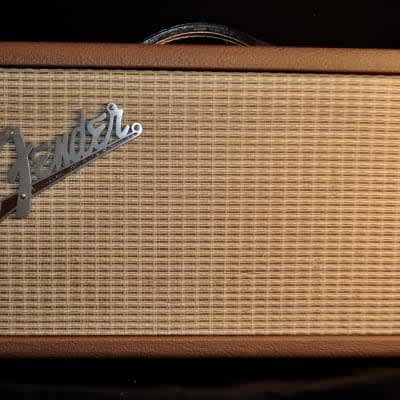

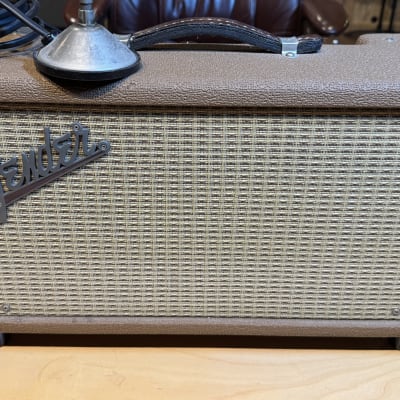

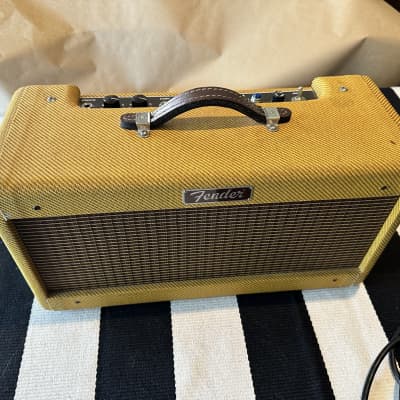

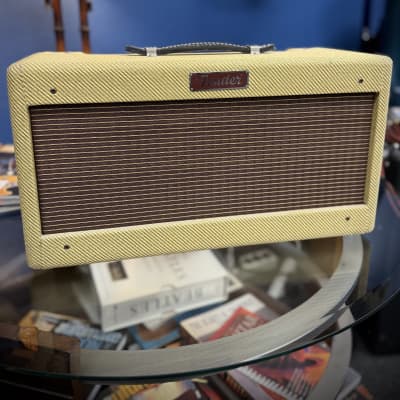

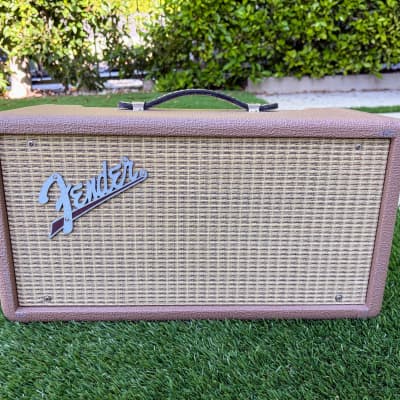

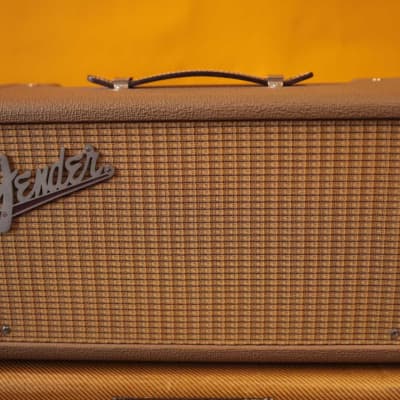

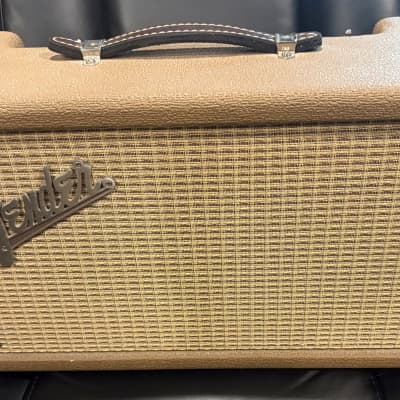

63' Reverb Unit

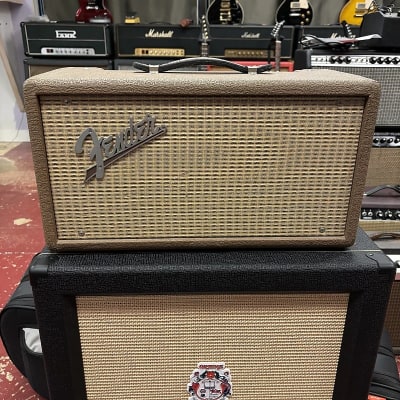

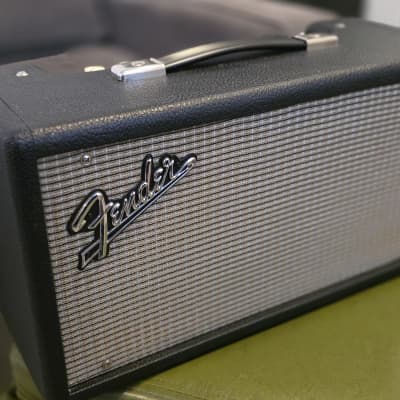

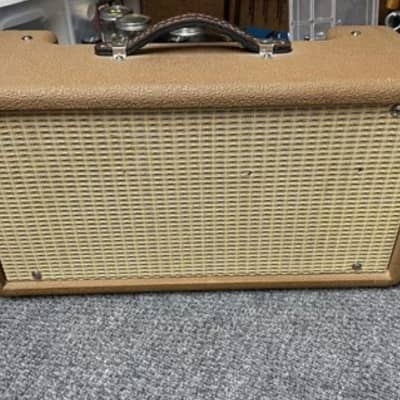

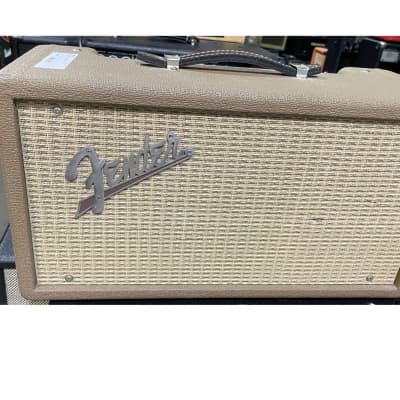

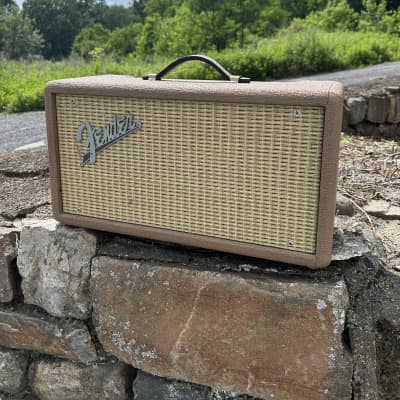

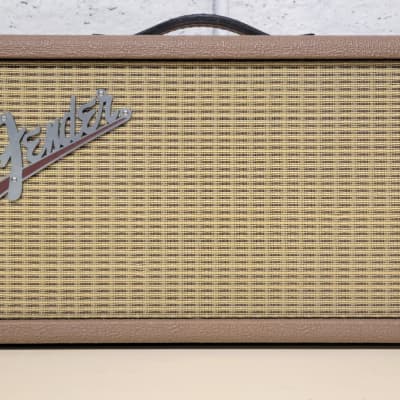

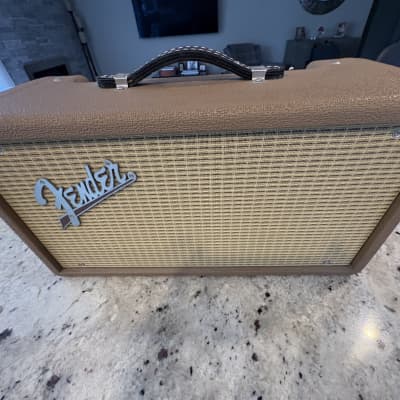

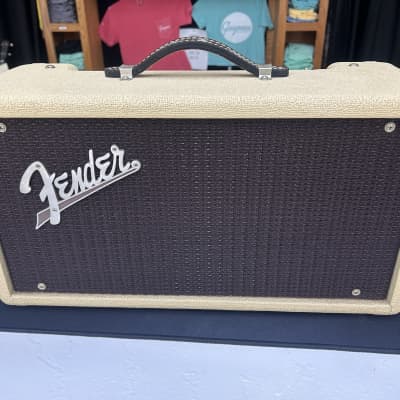

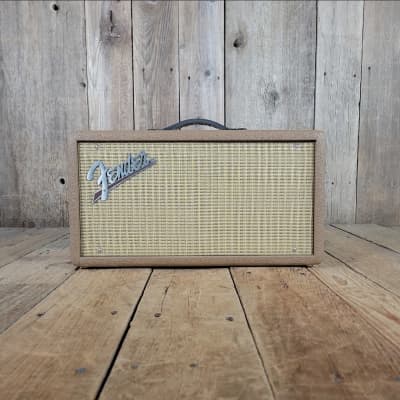

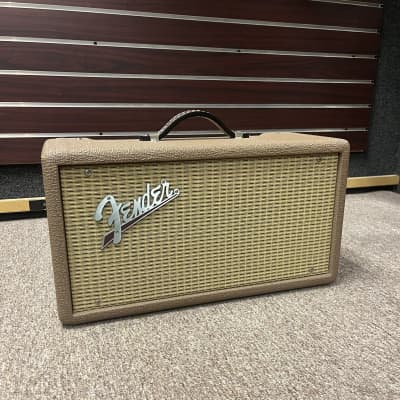

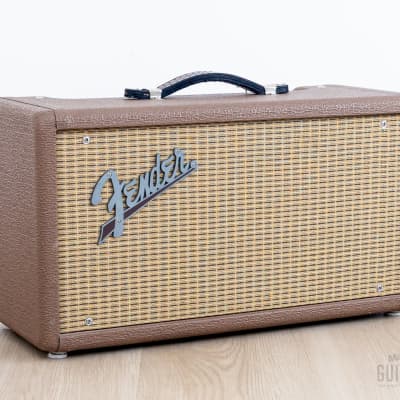

The Fender '63 Reverb Unit is a standalone tube-driven spring reverb unit designed to replicate the original 1963 Fender tube reverb. It features a solid steel welded chassis and all-tube circuitry. The unit includes the following controls:

1. Dwell: Adjusts the amount of signal sent to the reverb pan, creating varying levels of reverb intensity.
2. Mixer: Mixes the wet reverb signal with the dry signal, controlling the percentage of reverb in the output.
3. Tone: Affects the tone of the wet reverb signal, allowing adjustment of high frequencies.

The unit also includes an input jack for instruments and an output jack to send the signal to the amplifier. The power switch, fuse, and pilot light are located on the top panel, providing easy access for operation and maintenance.

Technical Specifications:
- Input Impedance: 520k Ohms
- Nominal Gain: Mixer fully CCW: 1
- Power Requirement: 120V Version: 120 Volts AC, 60Hz, 45W Maximum
- Dimensions: Height: 10 1/2’ (26.7 cm), Width: 18 7/8’ (47.9 cm), Depth: 7 1/2’ (19.0 cm)
- Weight: 13 Lbs. (5.9 kg)

The '63 Reverb Unit is designed to be used between a low-level instrument and a high input impedance amplifier, and it is recommended for use with the clean channel of the amplifier to achieve natural reverb effects.
