Reverberator

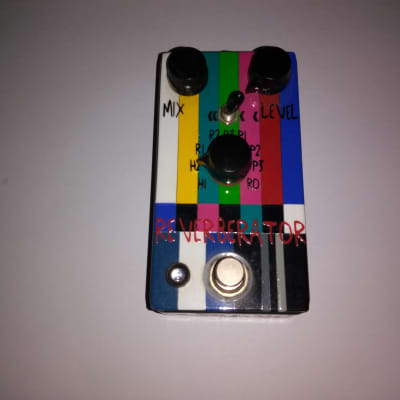

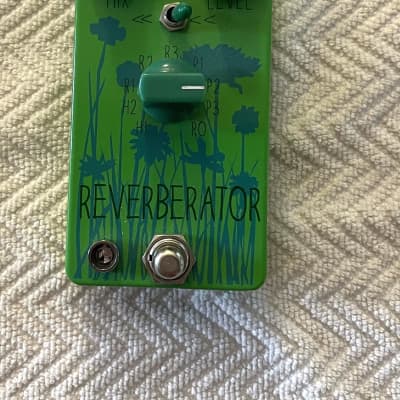

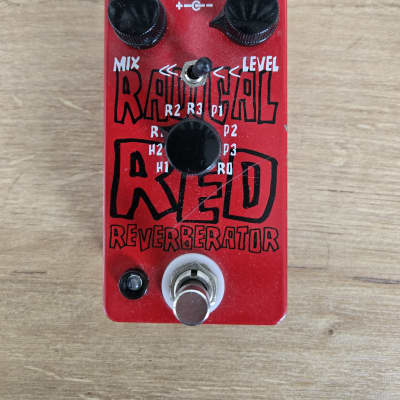

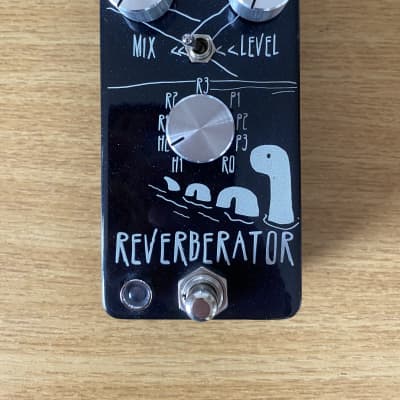

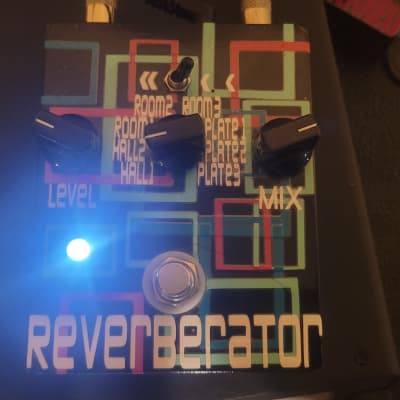

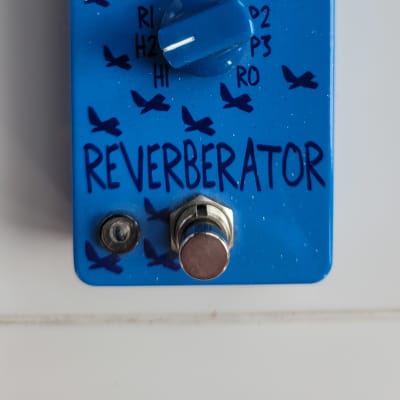

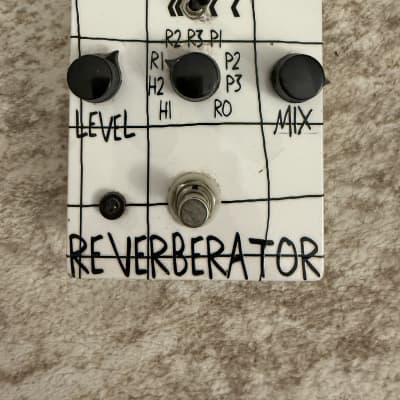

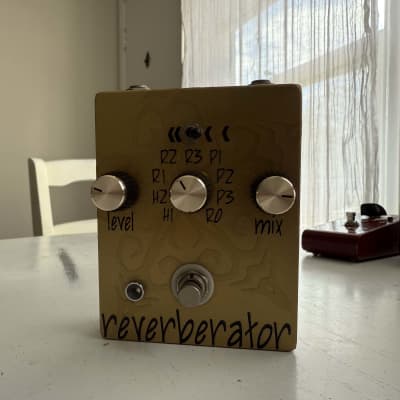

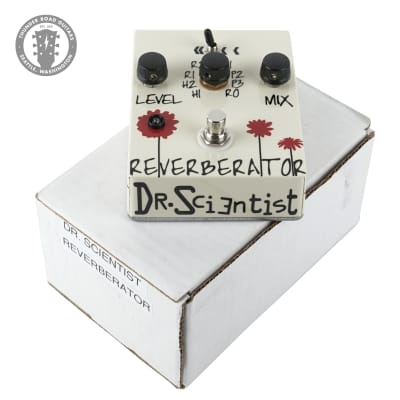

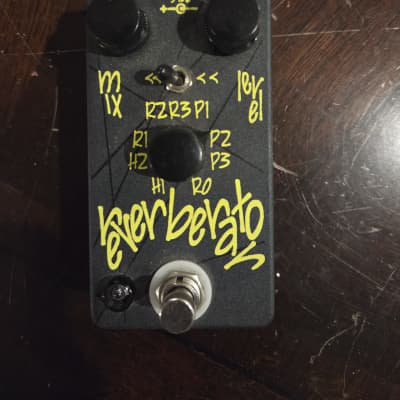

The Reverberator by Dr. Scientist is a digital reverb pedal with true bypass and simple controls. It offers 8 reverb settings and 1 rotary setting, providing a wide selection of tones. The pedal operates with mono input and mono output, with power requirements of 9VDC @ 75mA, 18VDC @ 150mA. The input/output impedance is 500kΩ/1kΩ, and it features true bypass using a soft- touch switch and relay. The level knob provides an op-amp boost with a range from unity to a large boost, while the mix control allows for dry at 0 and wet at full. The pedal also includes a decay time switch for short and long decay times, as well as a patch selector offering 9 different reverb patches:

1. Hall 1: Long bright hall
2. Hall 2: Long warm hall
3. Room 1: Hardwood room
4. Room 2: Standard room
5. Room 3: Warm room
6. Plate 1: Standard plate
7. Plate 2: Warm plate
8. Plate 3: Short vintage plate
9. Rotary: Rotating speaker effect with room reverb

The Reverberator has been used by notable musicians such as Tyler Burkum and Joel Davis. The pedal is known for its organic sound and versatile functionality, making it a popular choice among musicians and audio enthusiasts.
