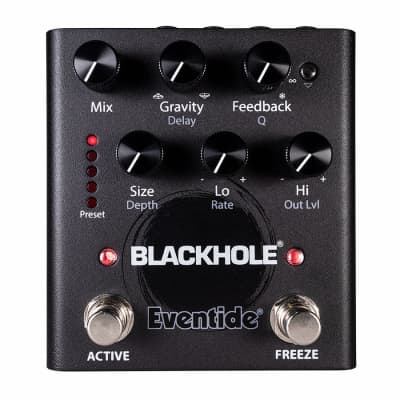

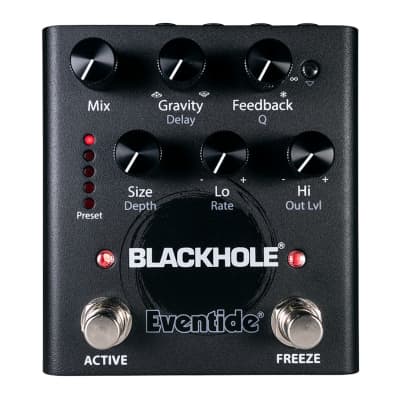

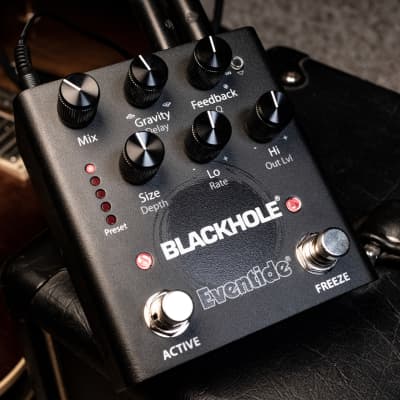

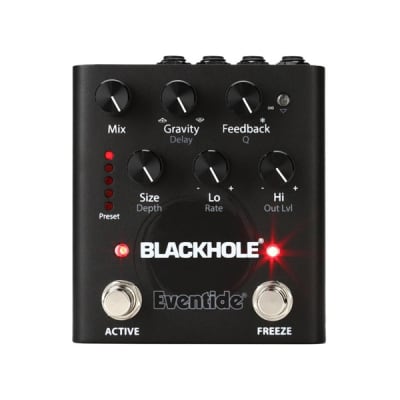

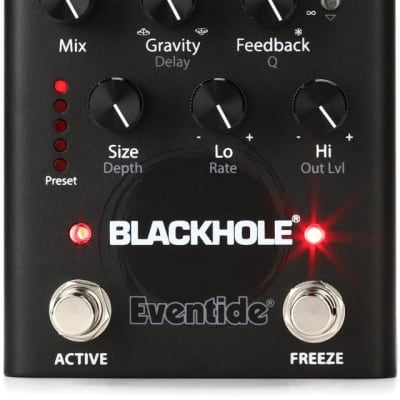

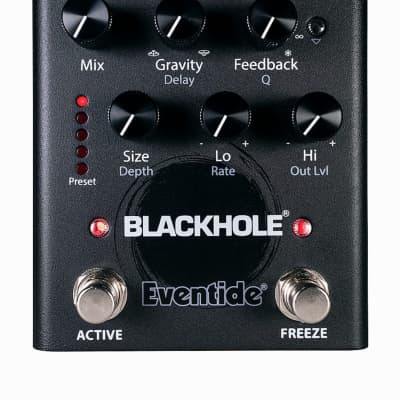

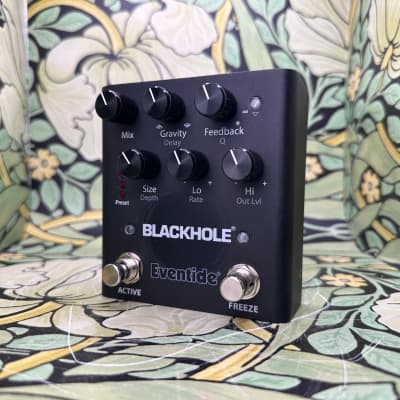

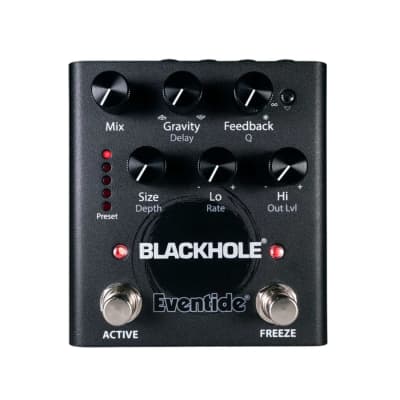

Blackhole

The Blackhole by Eventide features the following technical specifications:

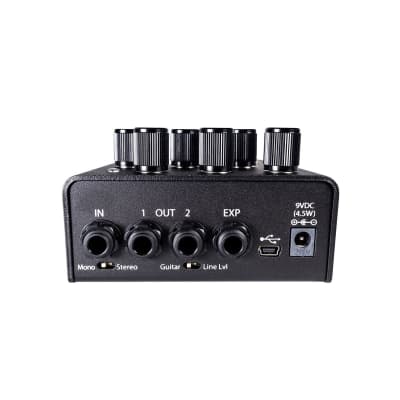

Input:
- 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 1:
- 1/4″ TS Mono / Mono Output
Out 2:
- 1/4″ TS Mono / Stereo Output
EXP:
- 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch:
- Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch:
- Optimizes internal gain structure
Mini USB:
- Software updates, MIDI I/O
DC Input Jack:
- 5.5mm / 2.1mm plug / Center Negative (-)
Input Impedance:
- 700k ohms Mono, 990k ohms Stereo
Output Impedance:
- 220 ohms
Recommended Load Impedance:
- 10k ohms
Power:
- 9V DC @ 300mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
Dimensions (Product):
- 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
Weight (Product):
- 1.06 lb / 0.48 kg
Dimensions (Package):
- 7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
Weight (Package):
- 1.68 lb / 0.77 kg

The Blackhole also offers over 50 presets, including those created by Eventide artists, and the ability to create extremely musical effects. It features unique "Gravity" control, mix lock, fully flexible mono and stereo options for inputs and outputs, and a kill switch for sound design and automation. The system requirements include macOS 10.9+ and Windows 8+, with AAX 64-bit, AU 64-bit, VST2 64-bit, and VST3 64-bit compatibility. An iLok account is required, but no physical dongle is necessary.
