Align Reverb

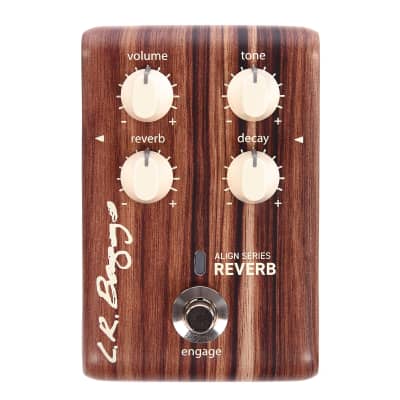

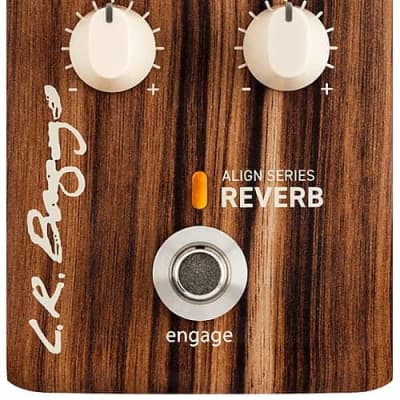

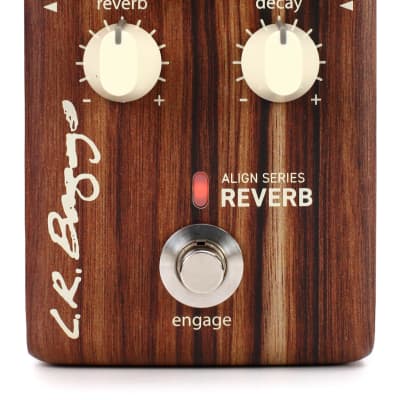

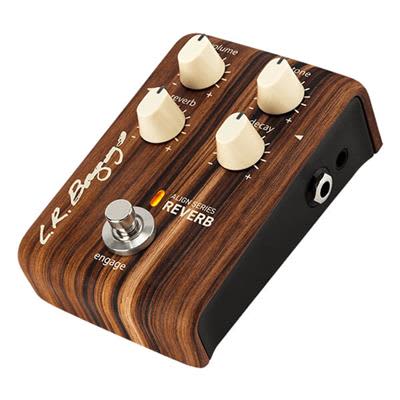

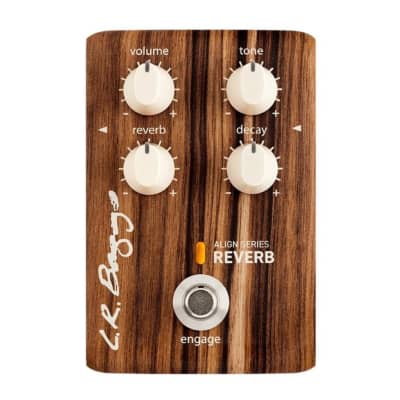

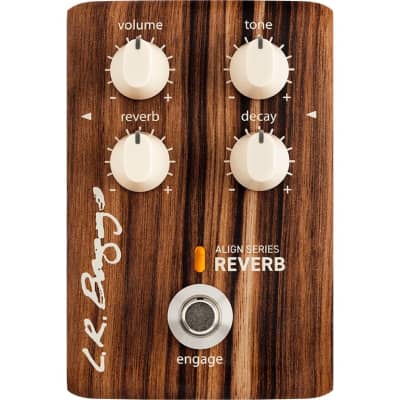

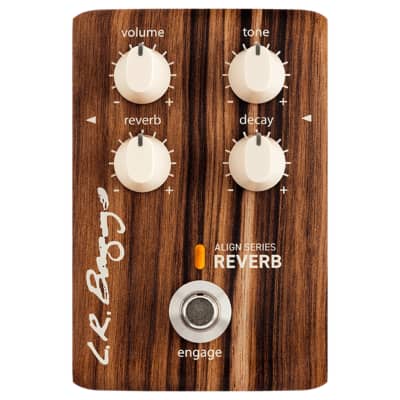

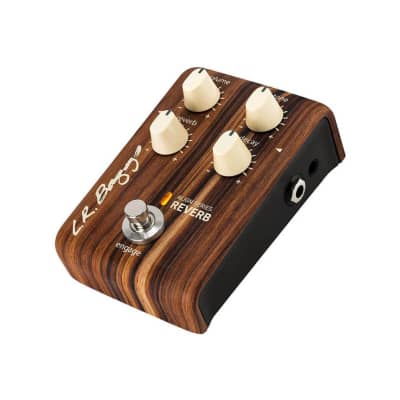

The LR Baggs Align Reverb is a pedal designed specifically for acoustic instruments, featuring a proprietary reverb tailored to complement the natural body dynamics and warmth of acoustic instruments. The circuit seamlessly integrates wet and dry signals with the effect in side chain to avoid overwhelming the original signal. The reverb is shaped with analog EQ to reflect the natural voice inherent in acoustic instruments, and the tone control adds versatility by sweeping from warm and muted to open and present.

Key Features:
- Reverb control blends reverb signal with unaffected signal
- Decay adjusts the length of the reverb tail
- Tone sweeps a wide range of warmth, clarity, and everywhere in between
- Engage footswitch for affected signal or true bypass
- Volume level control
- 9V battery or 9V DC powering options
- 1/4" output

Technical Specifications:
- 1/4” Input:
- Input Impedance: 2.2 Megohms
- Preamp Gain: +6dB
- Input Level: -25dBv to +5.7dBv (0.056Vrms to 1.944Vrms)
- Line Output:
- Output Level: +2.6dBv (1.343Vrms) Unbalanced
- Output Impedance: 220 Ohms
- Power:
- DC Power Consumption: 450mW Max at 9V
- DC Current Draw: 48mA
- Voltage Range: 7.5VDC – 12VDC
- Power Supply: 9VDC with 100mA minimum
- 9V Battery Life: 11 hours
- Signal to Noise: 90dB, Unweighted
- Physical Characteristics:
- Weight: 0.85 lbs
- Dimensions: 5” Length x 3.25” Width x 2” Depth

The LR Baggs Align Reverb is a versatile pedal that offers organic reverb while maintaining the audiophile purity of the original signal. It is an ideal tool for acoustic guitarists looking to enhance their sound with high-quality reverb effects.
