Small Stone

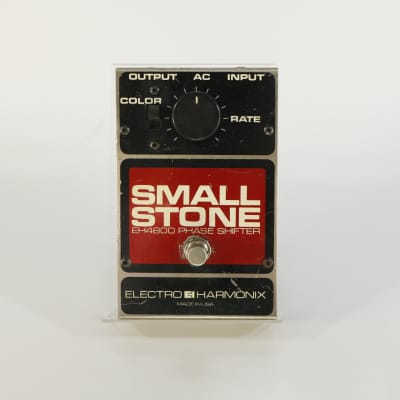

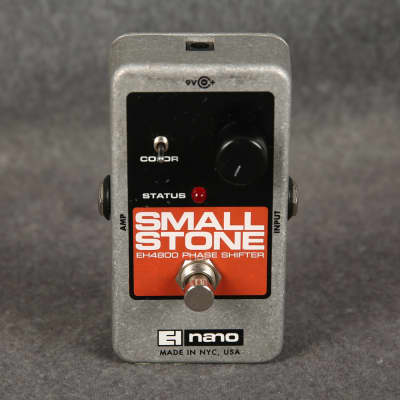

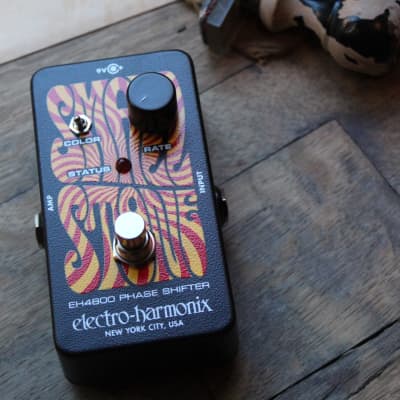

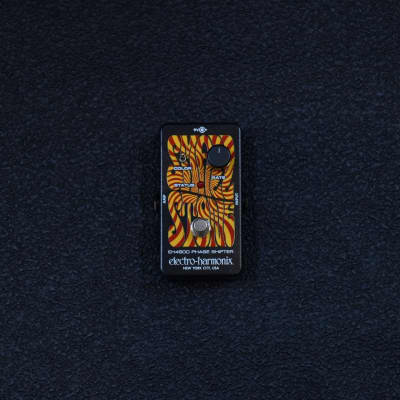

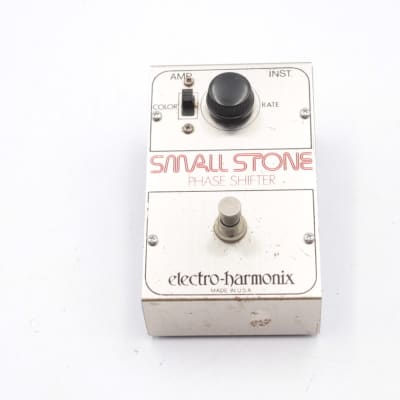

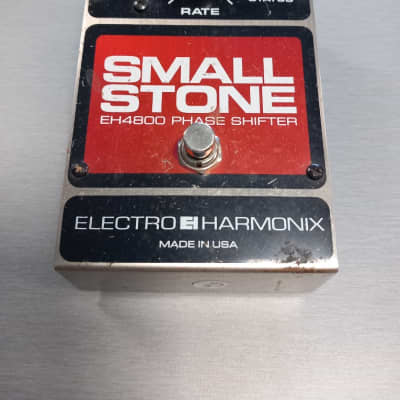

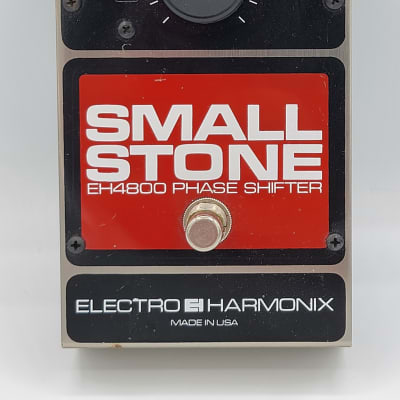

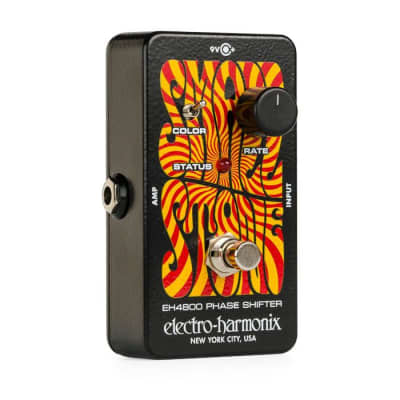

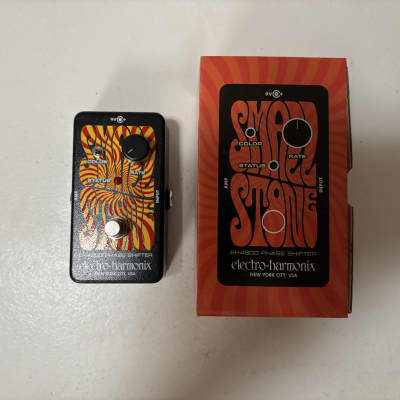

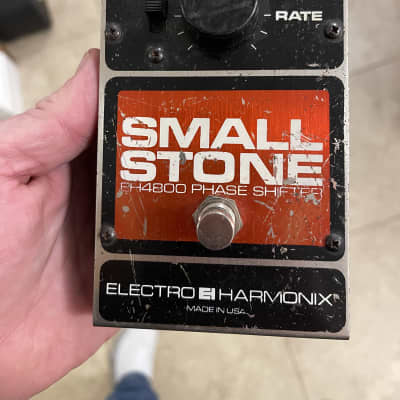

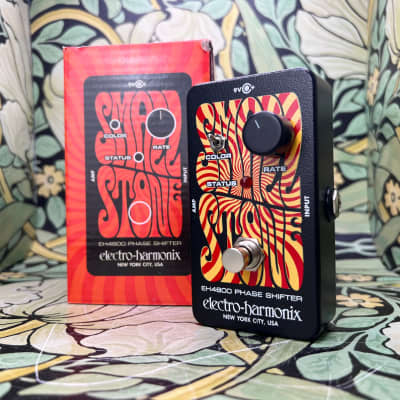

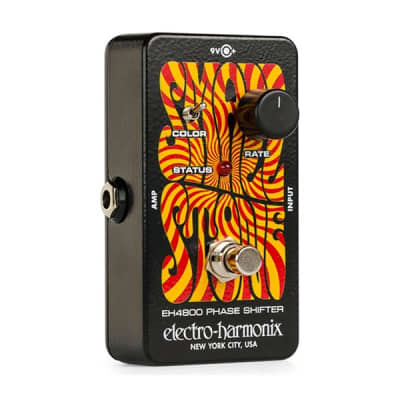

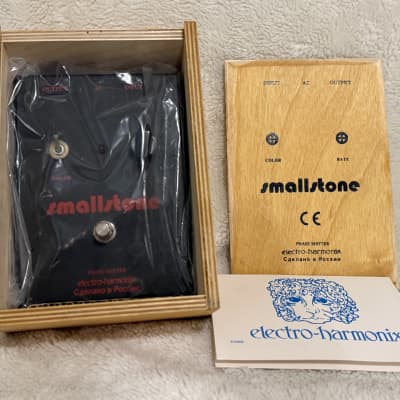

The Electro-Harmonix Small Stone is an analog phase shifter pedal that was first manufactured in the early 1970s, making it one of the first compact phase shifters on the market. It is designed to provide a fat, warm analog phase shifting effect.

Key Features and Specifications:
- True bypass
- Variable rate control allows for slow and smooth to rapid edge frequency sweeps
- Color switch adds Q and thins the moving comb filters, altering the sound of the phase shift
- Tough and compact die-cast chassis
- 9-volt battery included
- Optional 96DC-200BI power supply available
- Dimensions: 4.5 x 2.75 x 2.1 inches
- Shipping Weight: 0.65 lbs
- Shipping Dimensions (L x W x H): 5.75" x 3.45" x 2.75"
- UPC: 683274050041
- Input Impedance: 100 k-ohms
- Output Impedance: 15 k-ohms

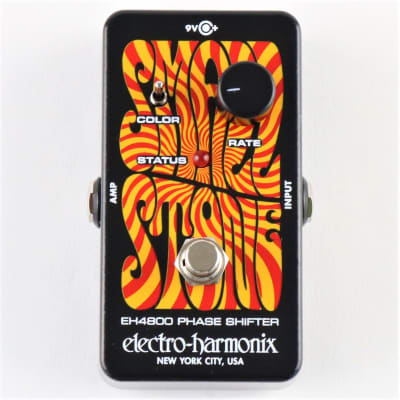

Operating Instructions:
- Connect the instrument to the INPUT jack and the amplifier to the AMP jack
- The STATUS LED indicates when the Small Stone is in effect mode
- The FOOTSWITCH toggles between effect and True Bypass mode
- The RATE control adjusts the speed of the phasing sweep
- The COLOR switch changes the sound of the phase shift between a full and robust phase shift and a more pronounced instance phase shift

Power:
- Power from the internal 9-volt battery is activated by plugging into the INPUT jack
- The input cable should be removed when the unit is not in use to avoid running down the battery
- The Small Stone can also be powered using an optional 96DC-200BI power supply

For warranty information and service, users can contact Electro-Harmonix customer service.
