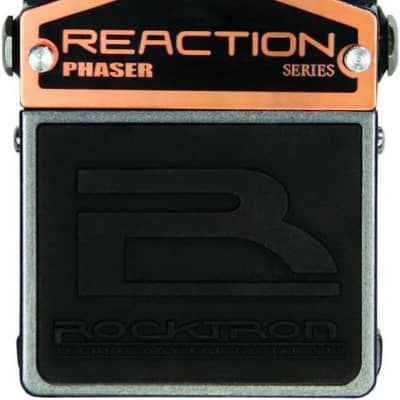

Reaction Phaser

The Rocktron Reaction Phaser is a classic phaser effect pedal designed for guitarists. It is built into a rugged metal slim form factor chassis, taking up minimal space on a pedalboard. The pedal features a TRUE BYPASS design, ensuring that when it is turned off, it is out of the signal path.

Key Specifications:
- Maximum Input: -7dBu
- Maximum Output: -3dBu
- Input Impedance: 470kΩ
- Output Impedance: 10kΩ
- Current Consumption: 20mA
- Power Requirements: 9V Alkaline Battery or Rocktron DC OnTap Universal Power Supply (sold separately) with negative tip
- Dimensions: 125mm x 78mm x 61mm (5” x 3.25” x 2.5”)
- Weight: 0.7kg (1.5lbs)

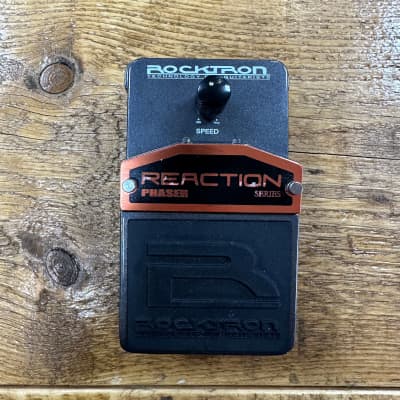

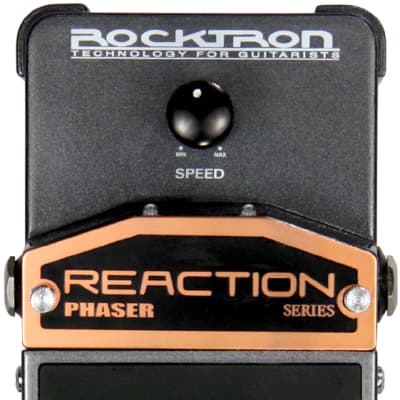

The Reaction Phaser is very easy to use, with a single SPEED control knob that adjusts the speed of the modulation waveform. It can be placed at various points in the signal chain to achieve different effects, such as before or after distortion pedals, or within the effects loop of an amplifier.

The footswitch on the Reaction Phaser controls the On/Off status, indicated by an LED indicator. The pedal can be powered by a 9V Alkaline battery or the Rocktron DC OnTap Universal Power Supply.
