MultiComp

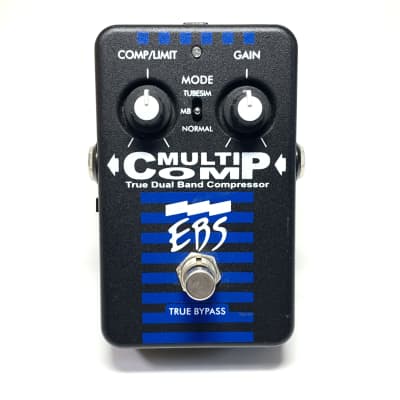

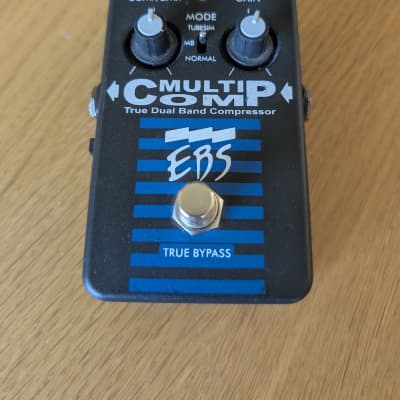

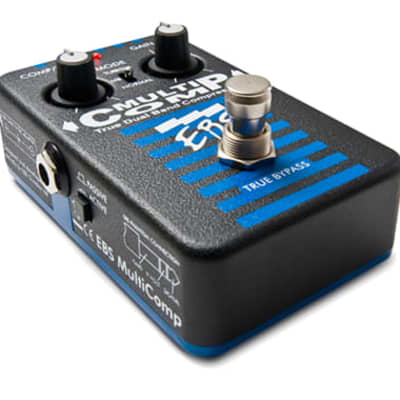

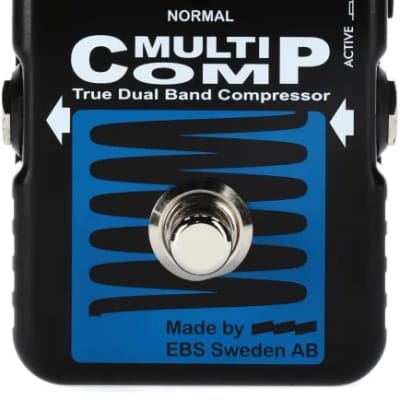

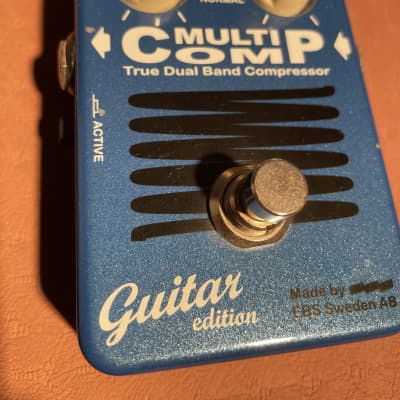

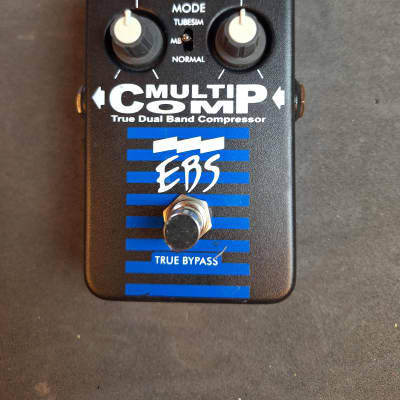

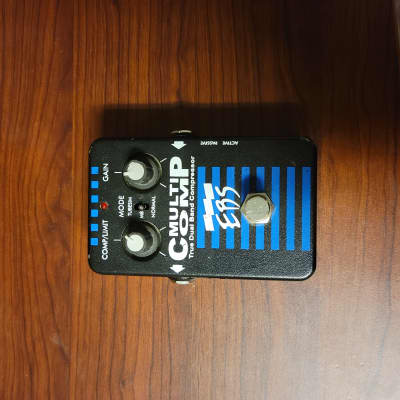

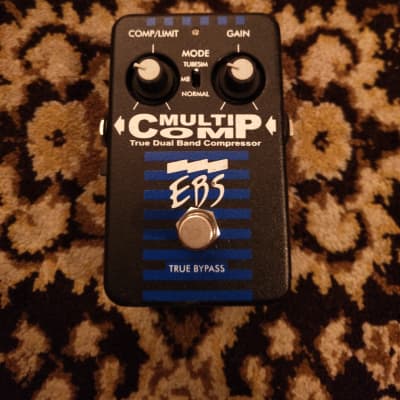

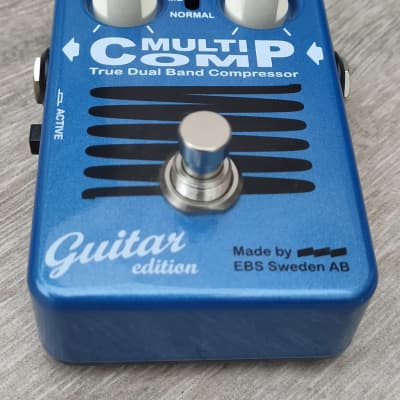

The EBS MultiComp is a high-performance, analog multi-band compressor pedal designed to enhance sound quality. It offers the following features and technical specifications:

Features:
- Dual-Band Compressor
- Suitable for live and studio use
- Option for solid state, tube simulation, and multi-band compression
- LED indicator for dynamic compression status
- Foot switch for on/off control
- Active/passive instrument switch
- Gain control for output level adjustment
- Tube simulator for added harmonics and warmth
- Multi-band mode for independent bass and treble compression

Technical Specifications:
- Nominal Input Level: -10 or -4 dBv
- Input Impedance: 700 kohms
- Bandwidth: 20 - 20k Hz (+0/-3 dB)
- Gain Range: 0 - 15 dB
- Compressor Ratio: 1:1 - 5:1
- Threshold: Adjustable from -25 to +6 dB
- Attack Time: <10 ms
- Release Time: Approximately 100 ms
- Power Requirements: 9 - 12 V DC Regulated, 35 mA max (protected against accidental overvoltage up to 18 V)
- Dimensions: 2.8" (W) x 4.5" (H) x 1.4" (D)
- Weight: 400g (0.88 lb.)

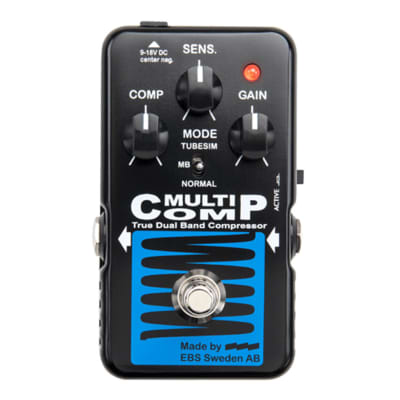

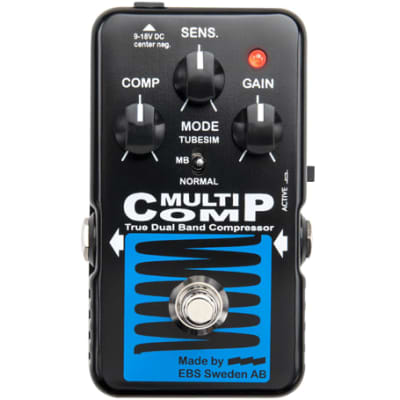

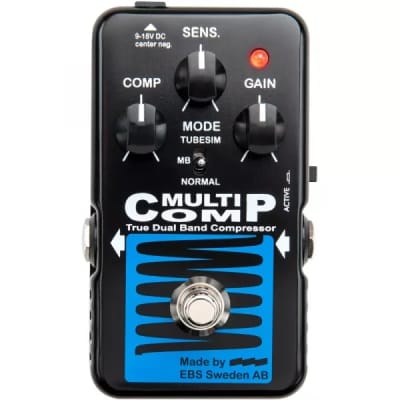

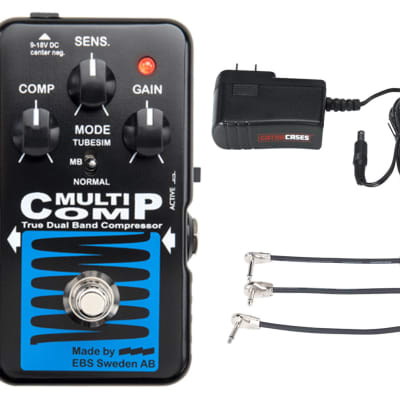

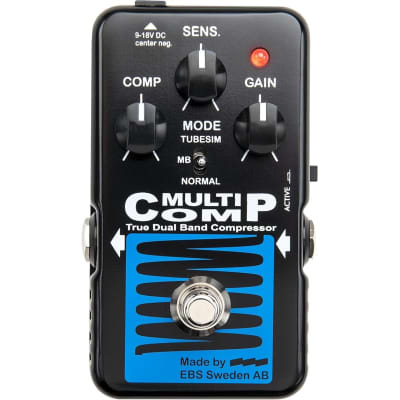

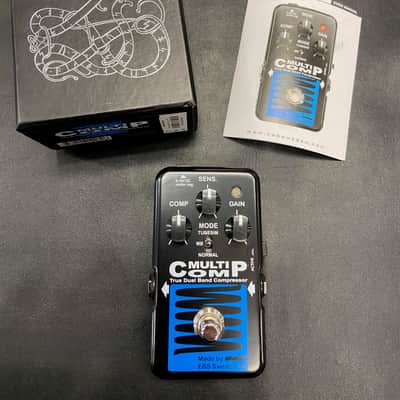

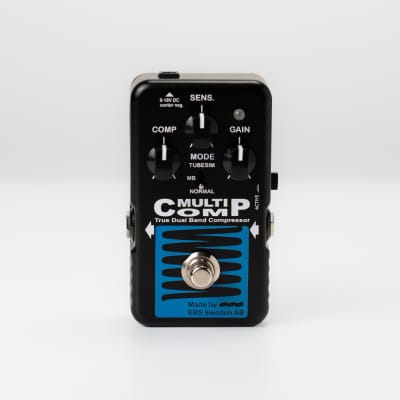

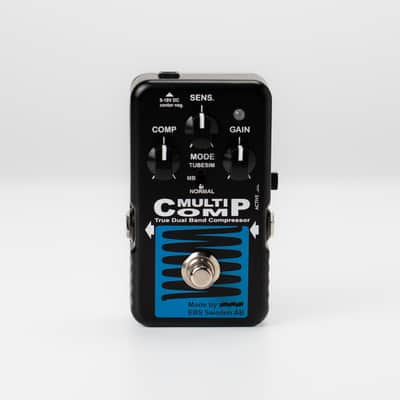

The EBS MultiComp Blue Label is an updated version with additional features, including a control to adjust the threshold level and the ability to operate continuously on up to 18V DC power, providing more headroom to handle extreme instruments. The new version also has a reduced footprint and is lighter compared to the previous edition.
