M195 Noise Clamp

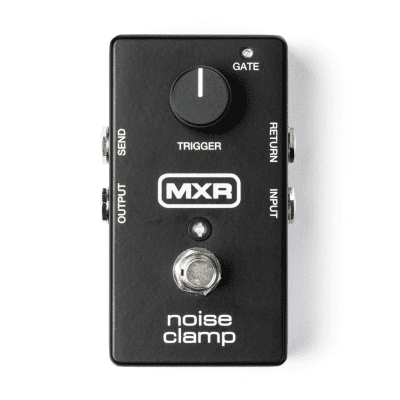

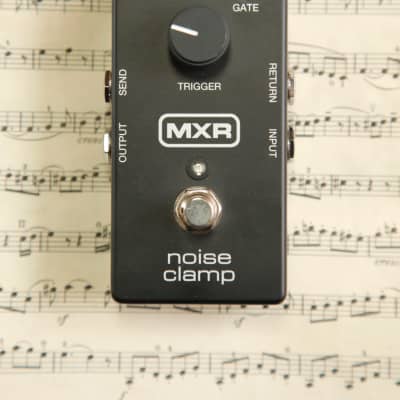

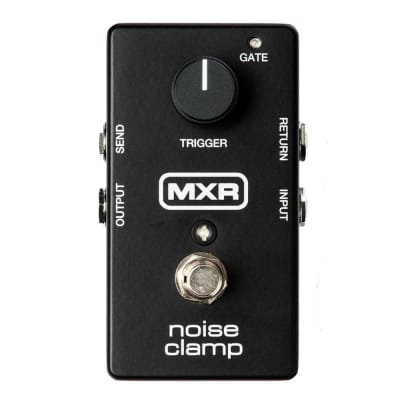

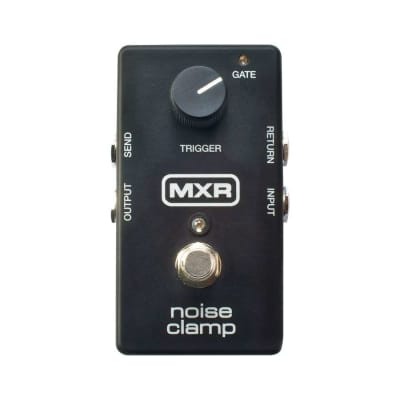

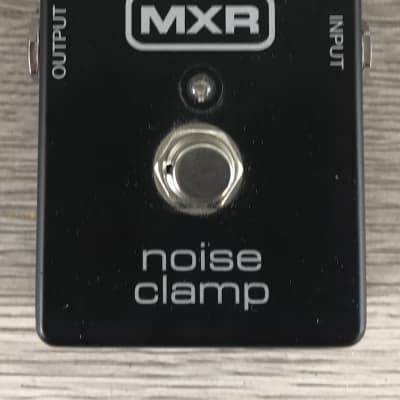

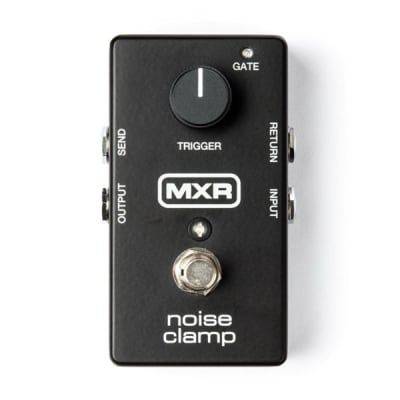

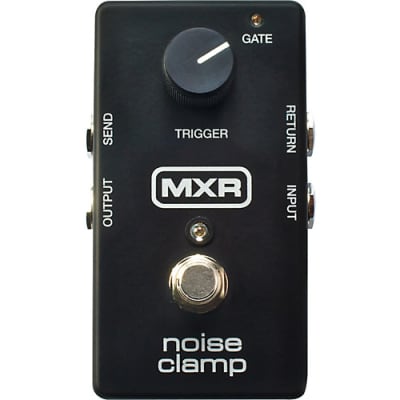

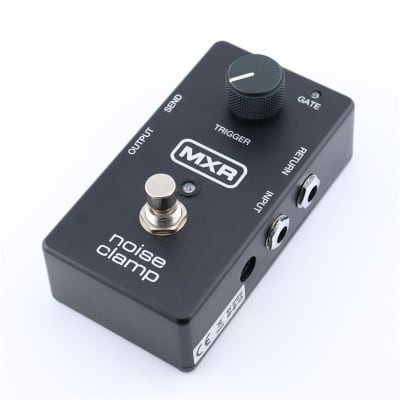

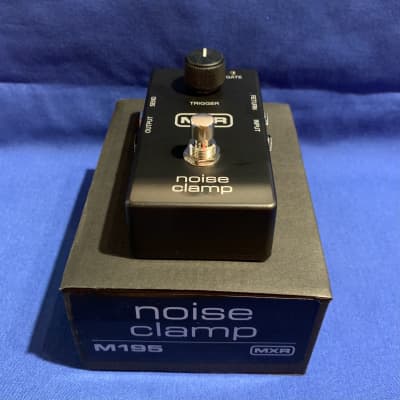

The MXR M195 Noise Clamp is a noise reduction/gate pedal designed to eliminate hiss and excess noise from the effects chain while maintaining riff definition at extreme gain levels. The pedal features a single Trigger knob that sets the volume threshold at which the pedal is active, and a green LED indicator to show whether the gate is on or off. It is capable of reducing noise up to 26 dB.

Technical Specifications:
- Dimensions: 5.5” x 4.5” x 2.5”
- Power Supply: 9V DC
- Impedance:
- Input, Return: 1 MΩ
- Output, Send: 1 kΩ
- Max Level: 10 dBV
- Gate Attenuation: -26 dBV
- Signal to Noise: 99.5 dBA
- THD: 0.01%
- Attack Time: 3 ms
- Release Time: 10 ms
- Bypass: Buffered
- Current Draw: 13 mA

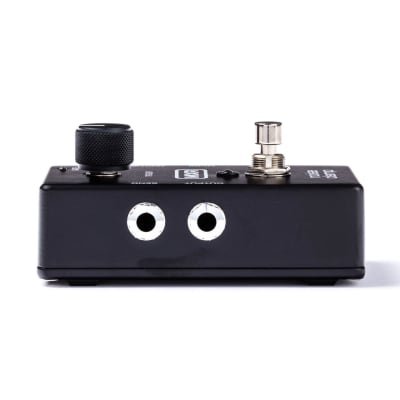

The pedal can be powered by one 9-volt battery, a Dunlop ECB003 AC adapter, or a Dunlop DCB10 DC Brick power supply. It features a Send/Return effects loop and can be used with electric guitars and basses. The volume threshold can be adjusted using the Trigger knob to control the noise clamp's activation level.

The MXR M195 Noise Clamp is suitable for musicians seeking to reduce unwanted noise in their effects chain, particularly when using high-gain settings.
