Tone Job

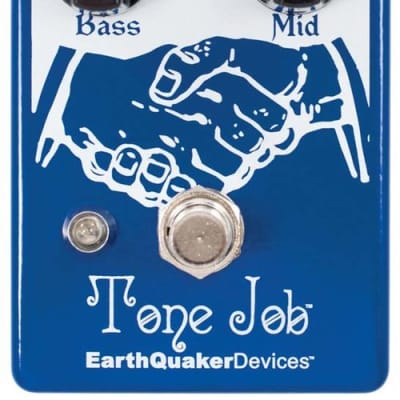

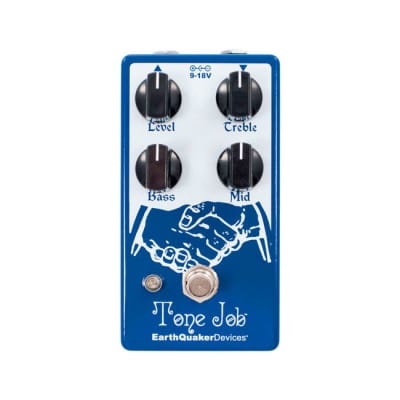

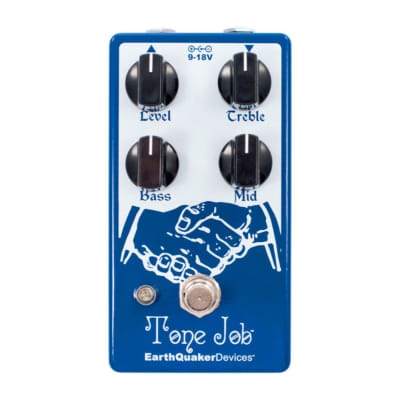

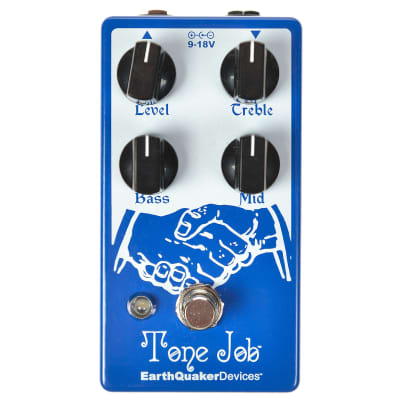

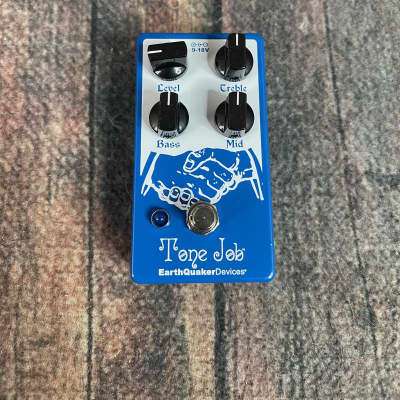

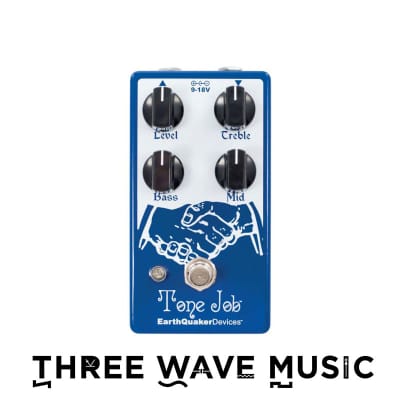

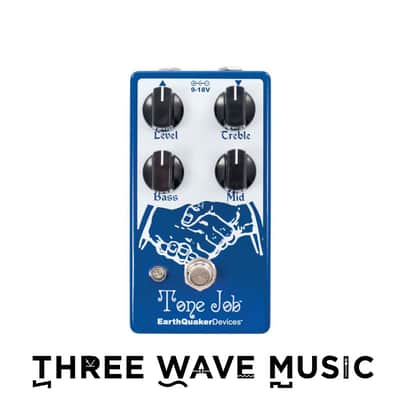

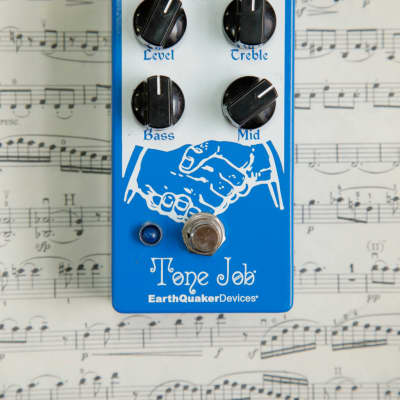

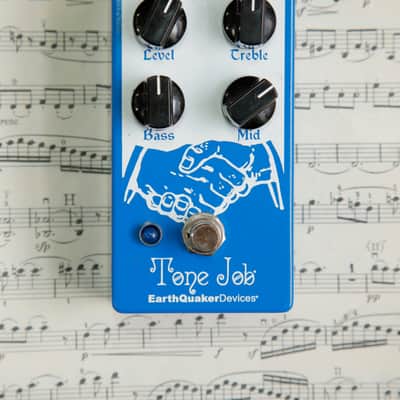

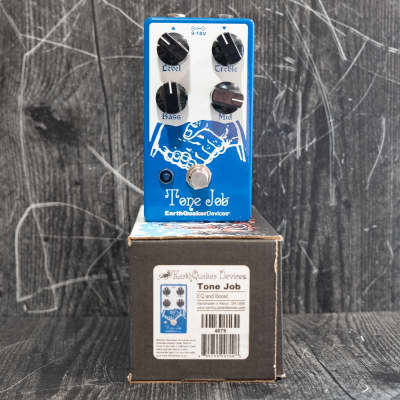

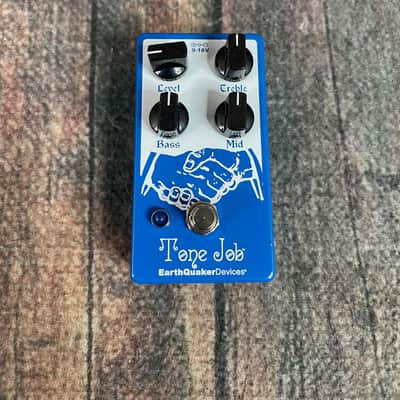

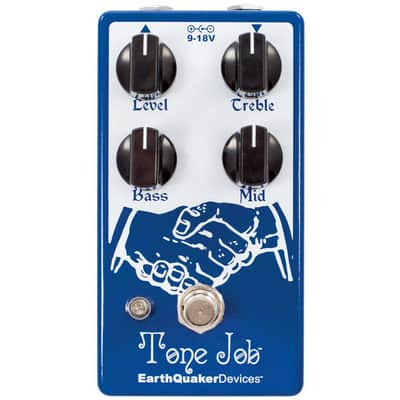

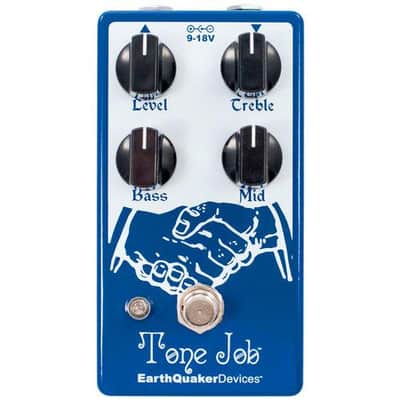

The EarthQuaker Devices Tone Job V2 EQ and Boost pedal offers the following features and technical specifications:

Features:
- Active EQ controls for Bass, Mid, and Treble with up to 20 dB of cut or boost
- Interactive EQ controls for altering the response and overall feel of the device
- Level control for boosting the signal up to 5x the original input level
- Can be placed at the beginning of the signal chain to alter the overall character of the instrument or at the end to boost output
- All analog and true-bypass
- Compact design

Technical Specifications:
- Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
- Current Draw: 10-21 mA
- Input Impedance: 1 MΩ
- Output Impedance: <1 kΩ
- Power: Standard 9 volt DC power supply with a 2.1mm negative center barrel
- Switching: True bypass with electronic relay-based switching
