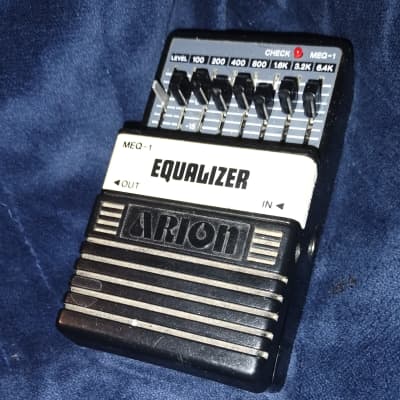

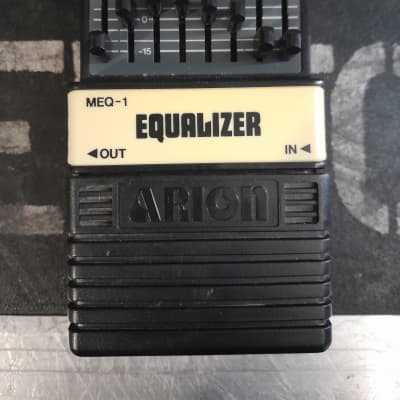

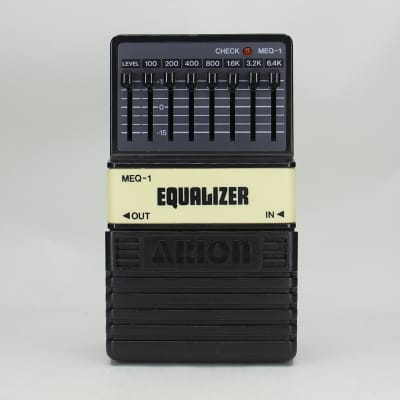

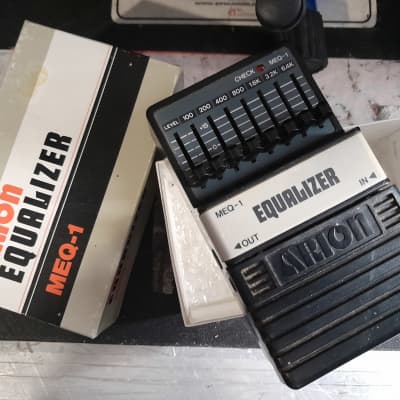

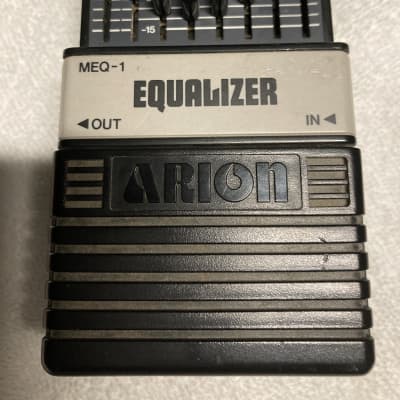

MEQ-1 Guitar Pedal By Arion

MEQ-1

Pedal Manufacturer

Arion

Description

The Arion MEQ-1 equalizer features the following technical specifications:

- Power Requirements: Battery DC9V (6F22/006P), AC Adapter DC9V
- Consumption Current: DC9V 15.5mA
- Input Impedance: 300MΩ
- Output Impedance: 10KΩ or more
- Level Controls: +/- 15dB
- Graphic Equalizer: 7 Elements +/- 15dB at 100Hz, 200Hz, 400Hz, 800Hz, 1.6KHz, 3.2KHz, 6.4KHz
- Dimensions: 73W x 50H x 127Dmm
- Weight: 340g (including battery)

The MEQ-1 is designed to provide precise tone sculpting with its 7 different frequency bands and extra level control, allowing users to customize their sound and eliminate unwanted feedback without removing a wide band of frequencies.
